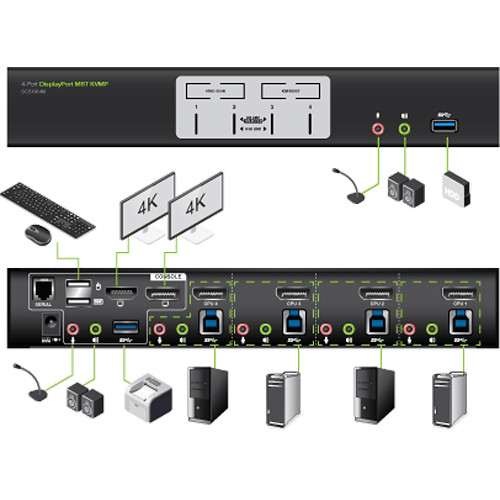

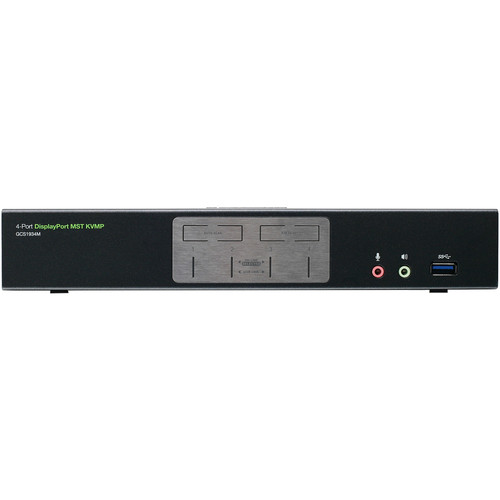

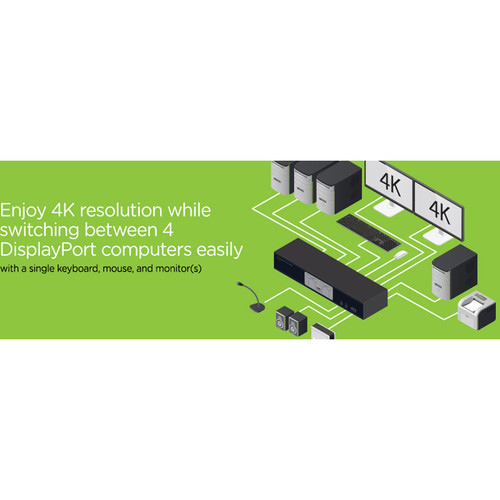

Featuring a DCI 4K resolution of 4096 x 2106 at 60 Hz, the 4-Port 4K DisplayPort KVMP Switch with Dual Video Out & RS-232 from IOGEAR allows users to connect and share dual DCI 4K displays and two USB peripherals between four computers with the push of a button. Users can control four DisplayPort-enabled desktops or laptops using a single keyboard, mouse, HDMI, and/or DisplayPort monitors, as well as expand their peripherals connectivity with USB 3.0, which is also known as USB 3.1 Gen 1, in an effort to utilize faster data rates of up to 5 Gb/s and eliminate redundant hardware.

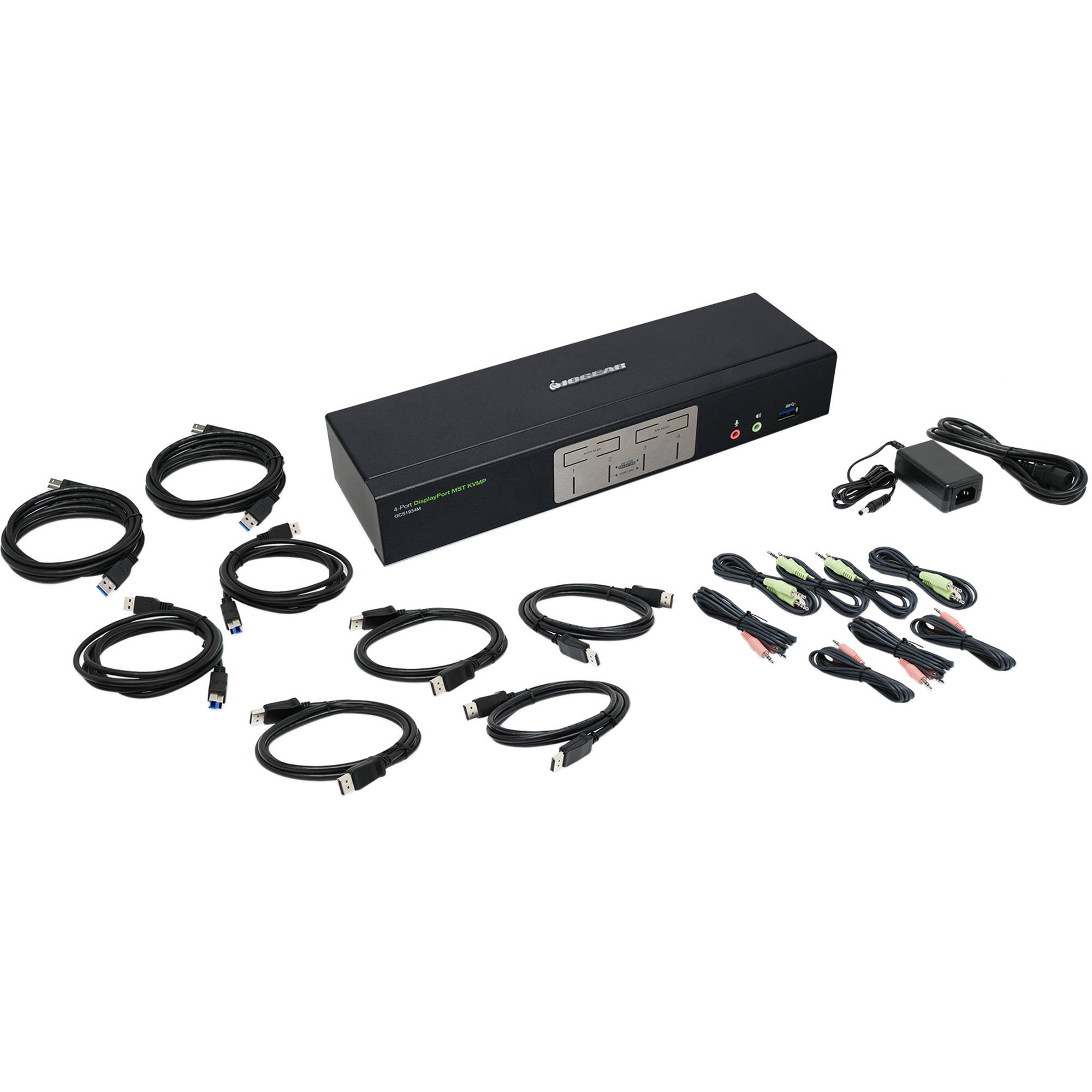

To use this switch, a DisplayPort or HDMI display, a 104-key wired USB keyboard, and a 2- or 3-button mouse are required on the console end, with a microphone and speakers being optional. On the computer end, a DisplayPort and USB Type-A port are required, with audio ports being optional. Included are four DisplayPort cables, four USB 3.0 cables, four audio cable sets, and a power adapter. Supported operating systems include Windows, Mac, Oracle Solaris, Linux, UNIX, and other USB-supported systems. Protection is provided by a limited 3-year warranty.
| Weight | 5.36 lbs |
|---|---|
| Dimensions | 13.05 × 8.6 × 3.95 in |
| # of Systems Supported | 4 |
| KVM Connections | 4 x 3.5 mm Audio<br />4 x 3.5 mm Microphone<br />4 x DisplayPort<br />4 x USB Type-B USB 3.1 / USB 3.2 Gen 1 (Keyboard/Mouse) |

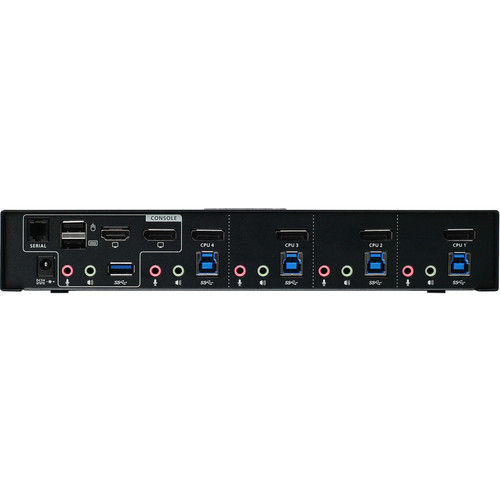

| I/O Connections | 1 x DisplayPort<br />1 x HDMI<br />1 x RJ11 Female<br />1 x USB Type-A<br />1 x USB Type-A (Mouse)<br />1 x USB Type-B (F/W Upgrade)<br />2 x 3.5 mm Audio<br />2 x 3.5 mm Microphone<br />2 x USB Type-A USB 3.1 / USB 3.2 Gen 1 |
| Scan Interval Range | 1 to 99 secs (5 secs Default) |
| Supported Resolutions | 4096 x 2160 @ 60 Hz |
| USB Keyboard/Mouse Emulation | Yes |
| DC Input Power | 5 VDC |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 0 to 80% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
