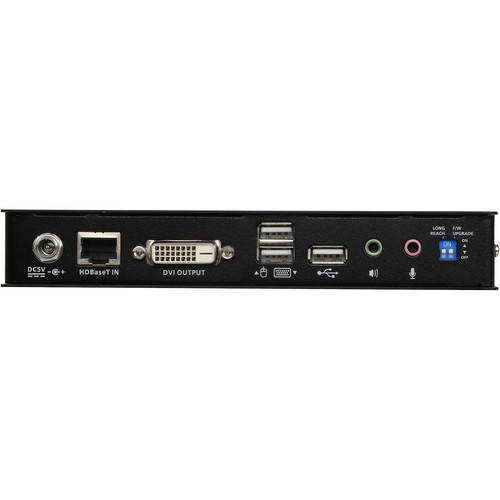

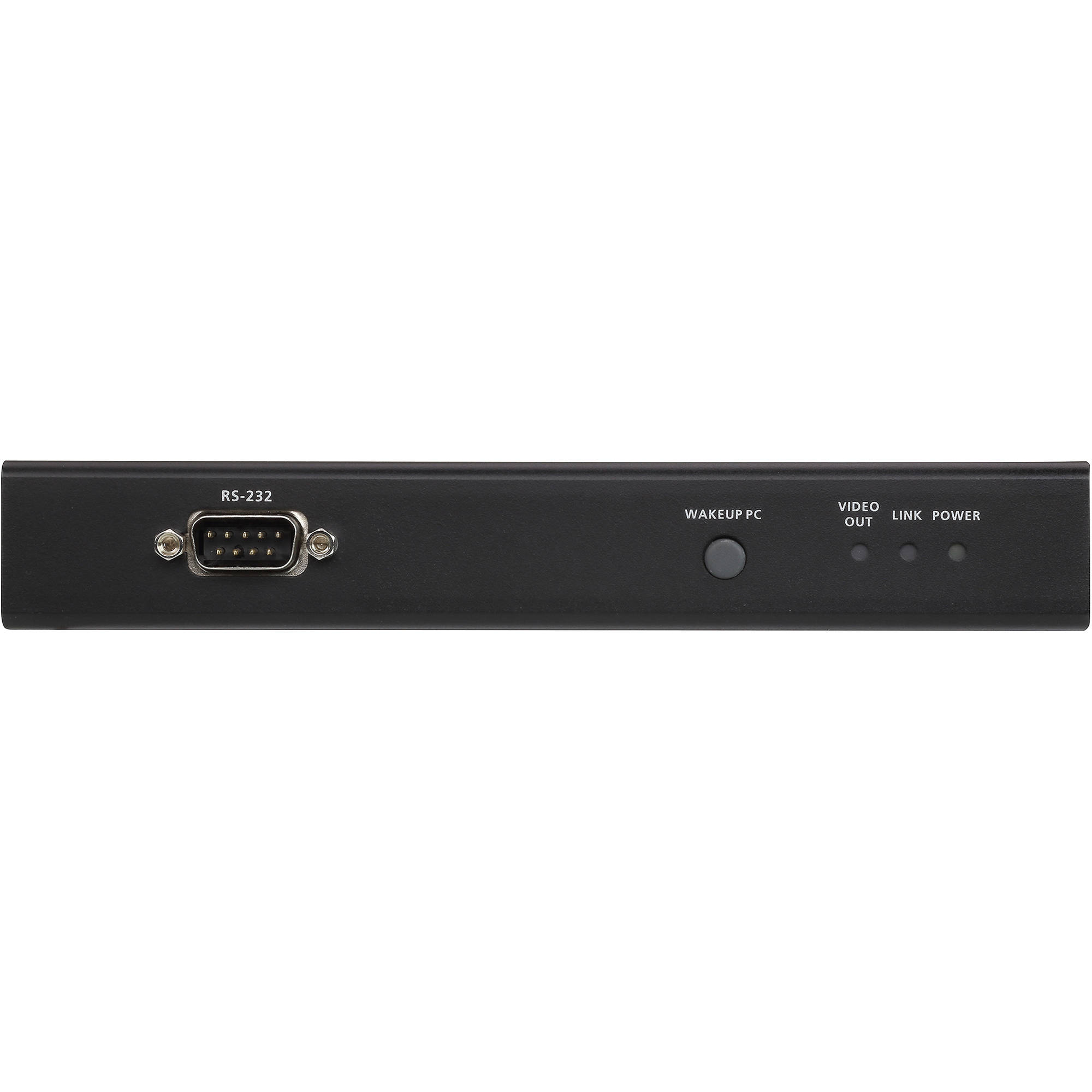

ATEN CE620 USB DVI HDBaseT 2.0 KVM Extender
Experience the most reliable transmission of video, audio, USB, and RS-232 signals with the ATEN CE620 USB DVI HDBaseT 2.0 KVM Extender. This cutting-edge device integrates the latest HDBaseT 2.0 technologies, ensuring high-quality signal transmission over a single Cat5e/6 cable up to 100 meters (328 feet).
Key Features:
- High-Quality Signal Transmission: Delivers DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals.
- Long-Distance Reach: Extends signals up to 100 meters (328 feet) using a single Cat5e/6 cable.
- Simplified Installation: Simplifies cable installation by supporting various signals over one cable.
- Versatile Applications: Ideal for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
The ATEN CE620 is designed to provide convenient remote access and control, making it perfect for environments where flexibility and reliability are crucial. With its robust feature set and seamless integration capabilities, the ATEN CE620 stands out as a superior solution for extending KVM signals over long distances.
Whether you’re setting up a control room, a digital signage system, or an extended workstation, the ATEN CE620 offers the performance and reliability you need to ensure uninterrupted operation and high-quality output.
Additional information
| Weight | 2.55 lbs |
|---|---|
| Dimensions | 10.2 × 7.2 × 4.6 in |
| Device Type | KVM / audio / serial / USB extender |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 2.0 |
| Max Resolution | 1920 x 1200 |
| Max Transfer Distance | 492 ft |
| Interfaces | 1 x USB keyboard<br />1 x DVI-D (output)<br />1 x USB mouse<br />1 x audio – mini jack<br />1 x microphone – mini jack<br />1 x RS-232 – DB-9<br />1 x USB – Type A<br />1 x HDBaseT (input) – RJ-45 |
| Power Device | External power adapter |
| Power Consumption Operational | 5.6 Watt |
| Width | 4.8 in |
| Depth | 7.2 in |
| Height | 1.1 in |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 – 80% (non-condensing) |
