Description

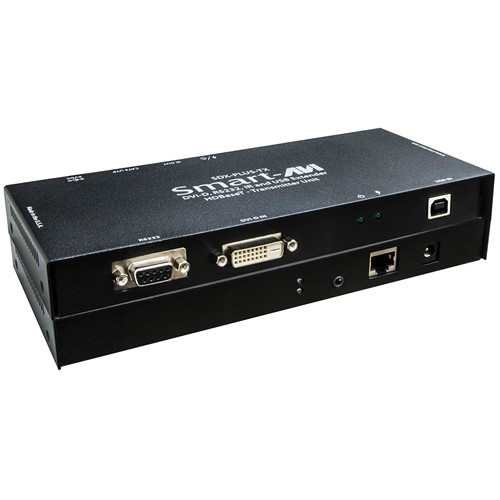

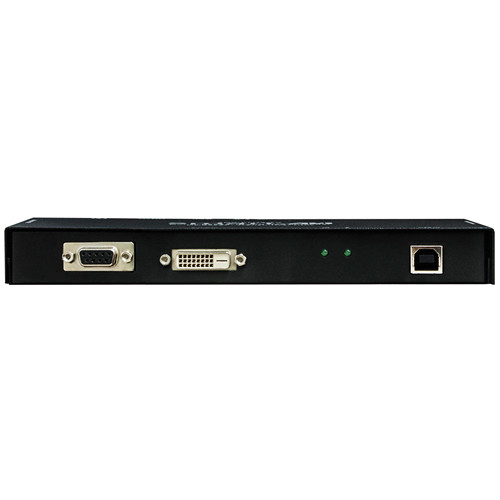

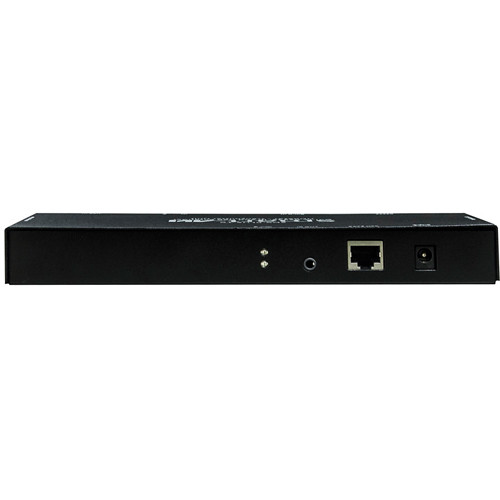

The SDX-Plus-TX Extra Long Range DVI-D, USB Keyboard and Mouse, RS-232, and Audio Transmitter from Smart-AVI uses HDBaseT technology to transmit DVI-D signals from up to 400′ over a single CAT5/5e/6 cable. It also supports USB keyboard and mouse, audio, and RS-232 signals transmission, giving users the ability to control displays or devices remotely. However, SDX-Plus-RX receiver is required at the display end for this remote controlling.
Additional information
| Dimensions | 22 × 16 × 10 in |
|---|---|
| Format | DVI-D single line |
| Maximum Pixel Clock | 165 MHz |
| Interface | 1 x USB type B (female) |
| Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz |
| DDC | 5 Vpp (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20' (6 m) |
| Signal Type | OHCI/UHCI (USB 1.1) |
| IR | Interface: 1 x 3.5 mm (female)<br> |
| Power | External: 100 to 240 VAC / 5 VDC, 3 A @ 20 W |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Dimensions (W x H x D) | 8.3 x 1.0 x 3.6" (21.1 x 2.5 x 9.1 cm) |
