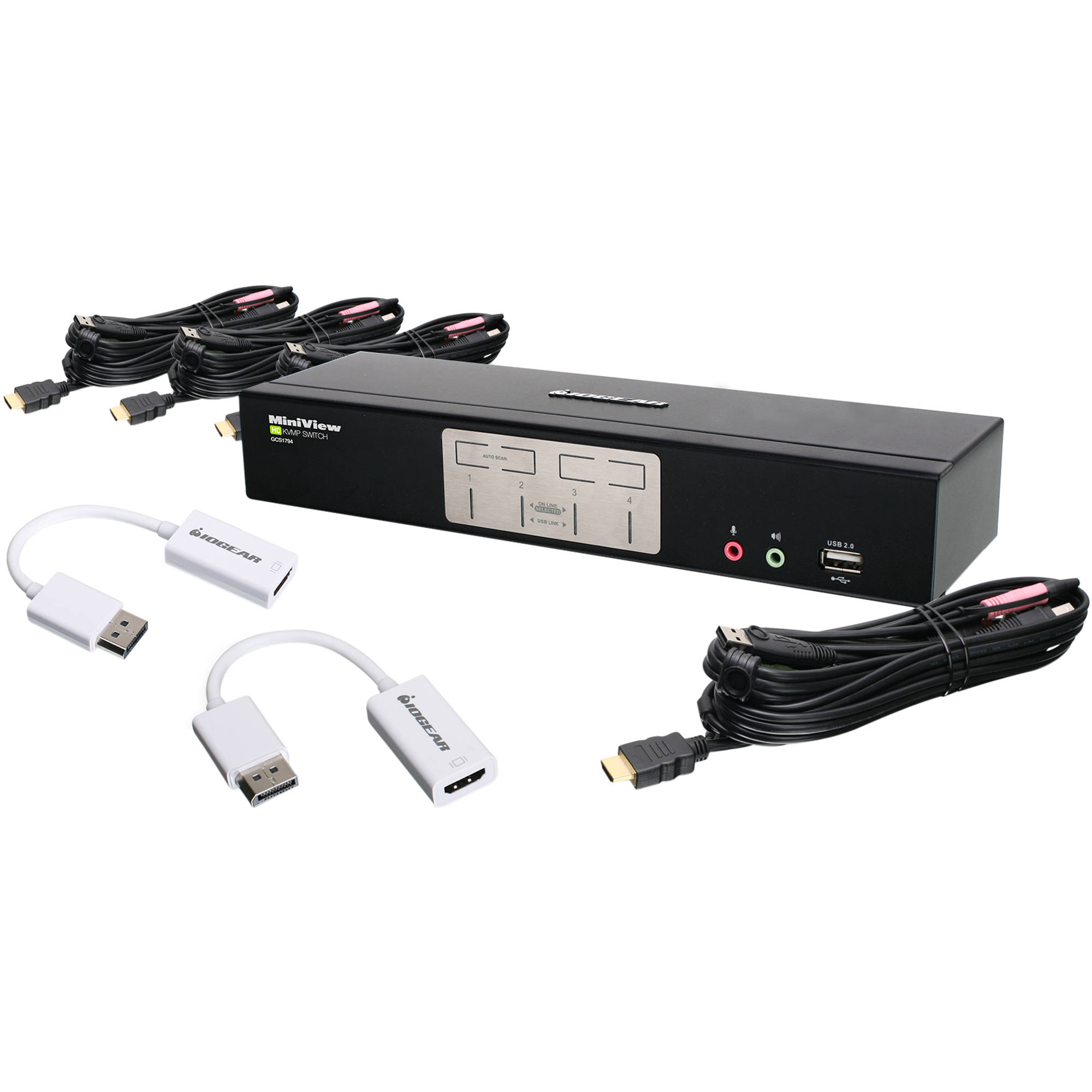

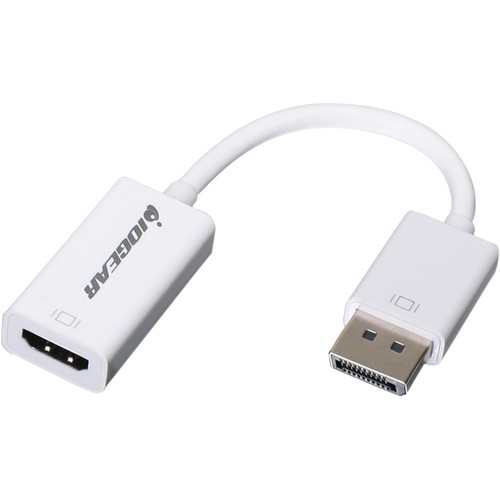

The bundle from IOGEAR comes with the 4-Port HDMI KVMP Switch along with two HDMI to DisplayPort adapters, allowing you to directly control up to four computer systems with HDMI or DisplayPort outputs using a single console set. The KVMP switch connects to the computer systems with four supplied KVM cables to deliver audio, video, and input-control signals to your monitor, USB keyboard, USB mouse, and headset. The included adapters let you convert two of the four KVM cables into a DisplayPort connection, so you can use this switch with DisplayPort-enabled products. Aside from these connections, the switch sports two USB 2.0 ports for connecting printers and external storage devices to these systems.
The 4-Port HDMI KVMP switch offers front-panel switch buttons as well as software-based hotkeys to let you quickly switch between your attached systems. It supports HDCP and DynaSync to eliminate delays or changes in video resolution while switching between or booting systems. For easy installation, it is Plug & Play compatible with a wide-variety of operating systems. Moreover, the switch is outfitted with a port that lets you upgrade its firmware to support the latest technologies.
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 13.4 × 8.55 × 4 in |
| Max Computer Connections | 4 |
| Port Selection | Hotkeys or front-panel switch button |
| Console Connectors | 1x HDMI female <br>1 x USB Type-A female (keyboard) <br>1 x USB Type-A female (mouse) <br>2 x 3.5 mm stereo female (green, audio) <br>2 x 3.5 mm stereo microphone female (pink, microphone) <br>1 x 4-conductor 3.5 mm (black, flash ROM upgrade) |

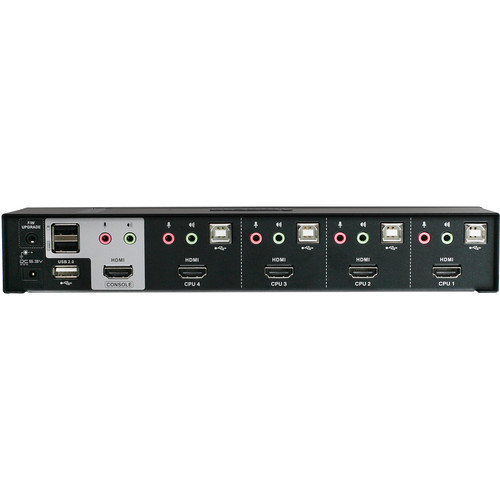

| PC Connectors | 4 x HDMI (two DisplayPort with adapters) <br>4 x USB Type-B female <br>4 x 3.5 mm stereo female (green, audio) <br>4 x 3.5 mm stereo female (pink, microphone) |
| Additional Ports | 2 x USB 2.0 Type-A female (one front and one rear) |
| Adapter Specifications | DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps <br>DisplayPort link tracking <br>Compliant with DVI 1.0 up to 1.65 Gbps <br>Supports Deep Sleep mode |
| LEDs | 4 x USB peripherals (green) <br>4 x On line (orange) |
| Emulation | USB keyboard and mouse |
| Video Resolution | 1920 x 1200 (1080p) |
| Scan Interval | 1 to 99 seconds |
| Power | 5.3 V, 2.4 A |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity (Non-Condensing) | 0 to 80% |
| Supported Operating Systems | Windows, Mac, Sun Solaris, and Linux |
| Dimensions (WxHxD) | 10.3 x 1.6 x 3" / 26 x 4.1 x 7.6 cm |
