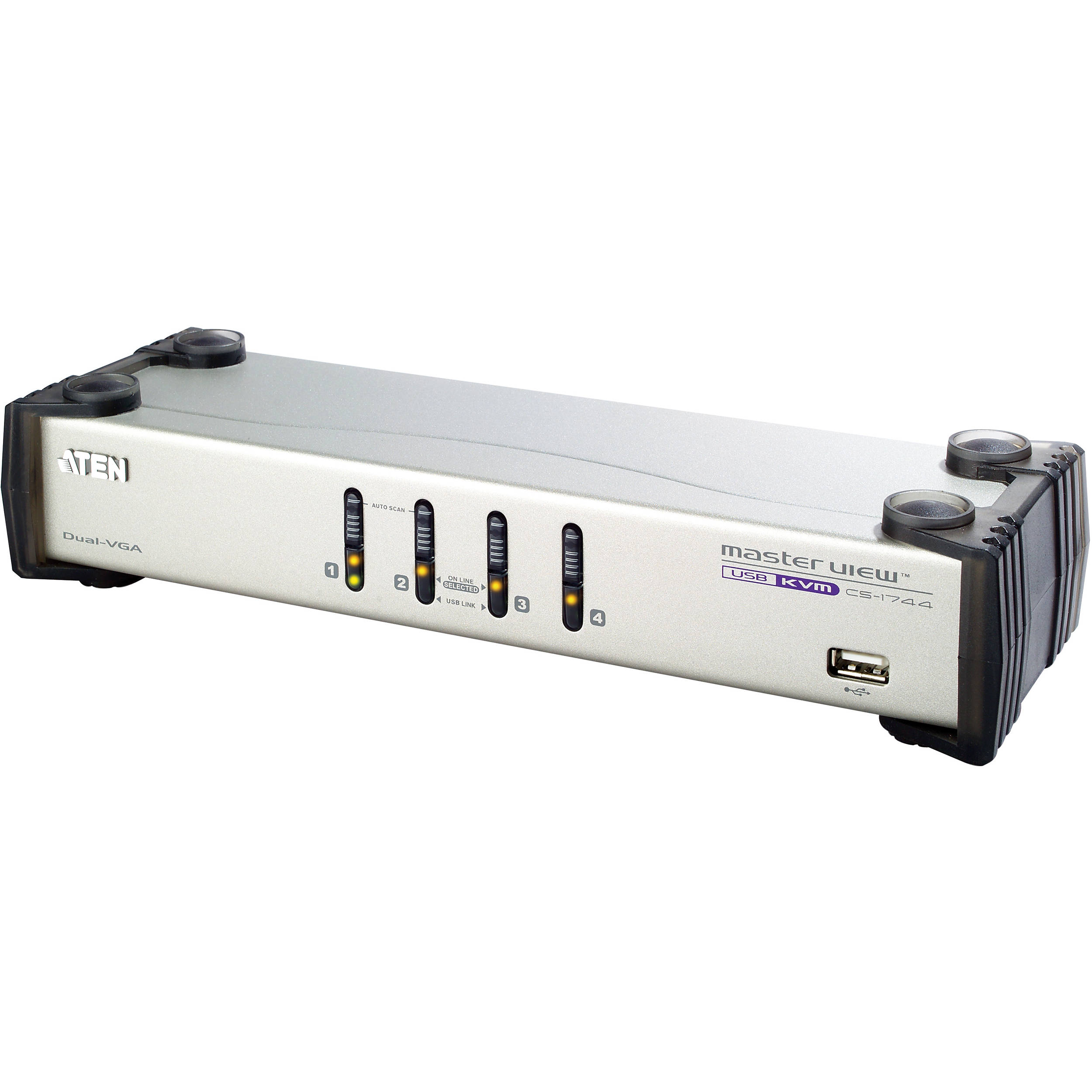

The 4-Port USB Dual-View KVMP Switch from ATEN integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. The switch also provides one USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB.
| Weight | 6.3 lbs |
|---|---|
| Dimensions | 12.9 × 8.5 × 4.2 in |
| Computer Connections | 4 |
| Port Selection | Hotkeys, pushbutton <br> |

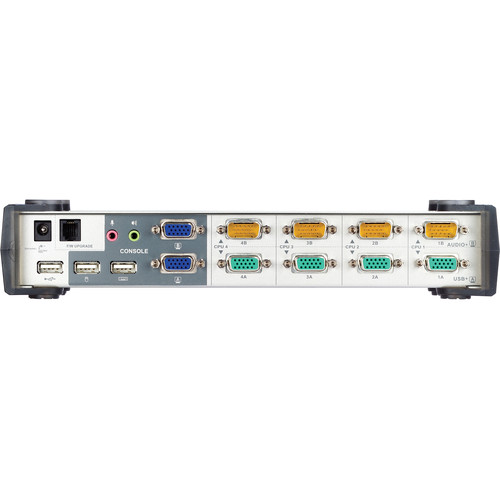

| Connectors | Console Ports: <br> KVM Ports: <br> |
| Switches | Port: 4 x Pushbutton |
| LEDs | On Line/Selected: 4 (orange) <br> |
| Emulation | Keyboard/Mouse: USB |
| Video Resolution | 2048 x 1536, DDC2B |
| Scan Interval | 1 to 99 sec |
| Power Consumption | 5 VDC, 1.35 W |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to +140°F (-20 to +60°C) |
| Humidity | 0 to 80% RH (non-condensing) |
| Housing | Metal |
| Dimensions (L x W x H) | 10.6 x 3.5 x 2.2" (27.0 x 8.8 x 5.5 cm) |
