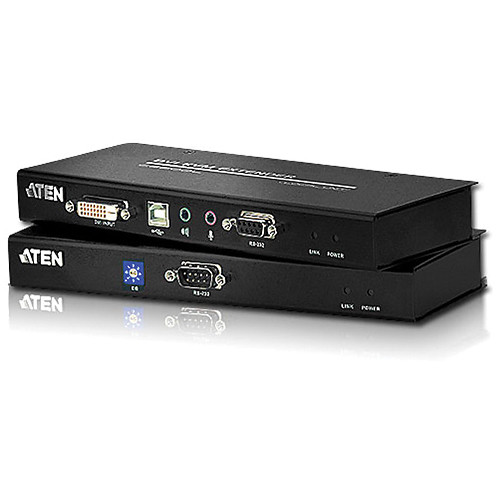

The Aten CE600 DVI KVM Extender is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse), gearing it towards use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows you to deploy system equipment over large distances. The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution. The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 13 × 8.3 × 3.8 in |
| Supported Operating Systems | Windows: 2000, 2003, 2008, XP, Vista, 7<br>Linux: Redhat 9.0 and up; SuSE 10, 11.1 and up; Debian 3.1, 4.0; Ubuntu 7.04, 7.10<br>UNIX: FreeBSD 5.5, 6.1, 6.2<br>Novell: Netware 6.0 and up |

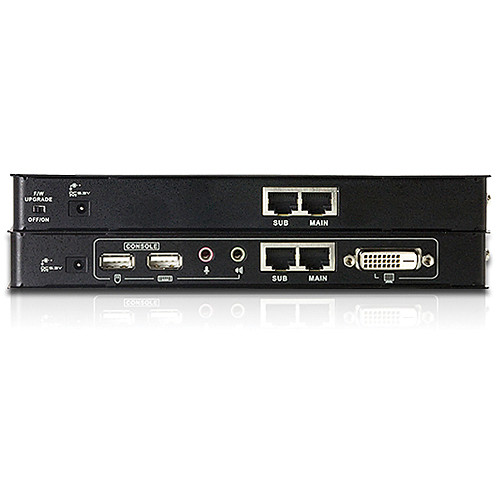

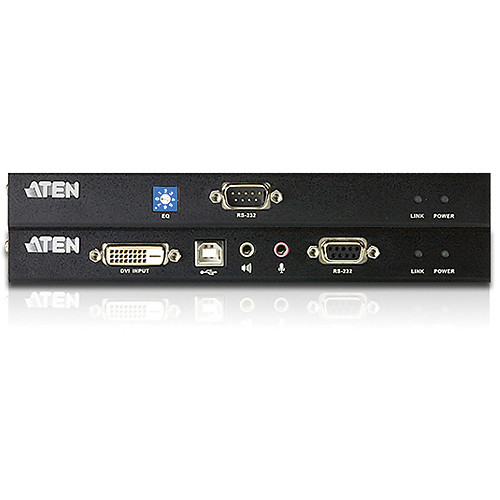

| Connectors | Local:<br>DVI-D female <br>Mini stereo jack female Speaker (green) <br>Mini stereo jack female Mic (pink) <br>USB Type B female<br>DB9 for RS-232 <br>2 x RJ-45 female<br>Remote: <br>USB Type A Female Keyboard<br>DVI-D female <br>USB Type A female Mouse<br>Mini stereo jack female Speaker (green) <br>Mini stereo jack female Mic (pink) <br>DB9 for RS-232<br>2 x RJ-45 female |
| LED Indicator | 1 x link, 1 x power on both local and remote |
| Switches | Remote: 1 x 8-position EQ switch<br>Local: 1 x firmware upgrade slide switch |
| Emulation | Keyboard/mouse: USB |
| Video Resolution | 1920 x 1200 @ 60Hz (30 m)<br>1024 x 768 @ 60Hz (60 m) |
| Power Consumption | Local: DC 5.3 V/2.65 W<br>Remote: DC 5.3 V/4.24 W |
| Operating Temperature & Humidity | 32 – 122°F (0 – 50°C), RH 0 – 80% non-condensing |
| Storage Temperature | -4 – 140°F (-20 – 60°C) |
| Housing Material | Metal |
| Dimensions (L x W x H) | Local: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm)<br>Remote: 8.0 x 3.4 x 1.0" (20.2 x 8.5 x 2.5 cm) |
1 review for ATEN CE600 DVI KVM Extender with Audio
Only logged in customers who have purchased this product may leave a review.
Related products
$178.47
$31.96
$51.68
$106.00
Keith Kassulke (verified owner) –
Simple, reliable, and solid. I havent used the audio piece but everything else has been perfect. It would help if this could use one cable between transmitter and receiver but it has worked great as it is.
