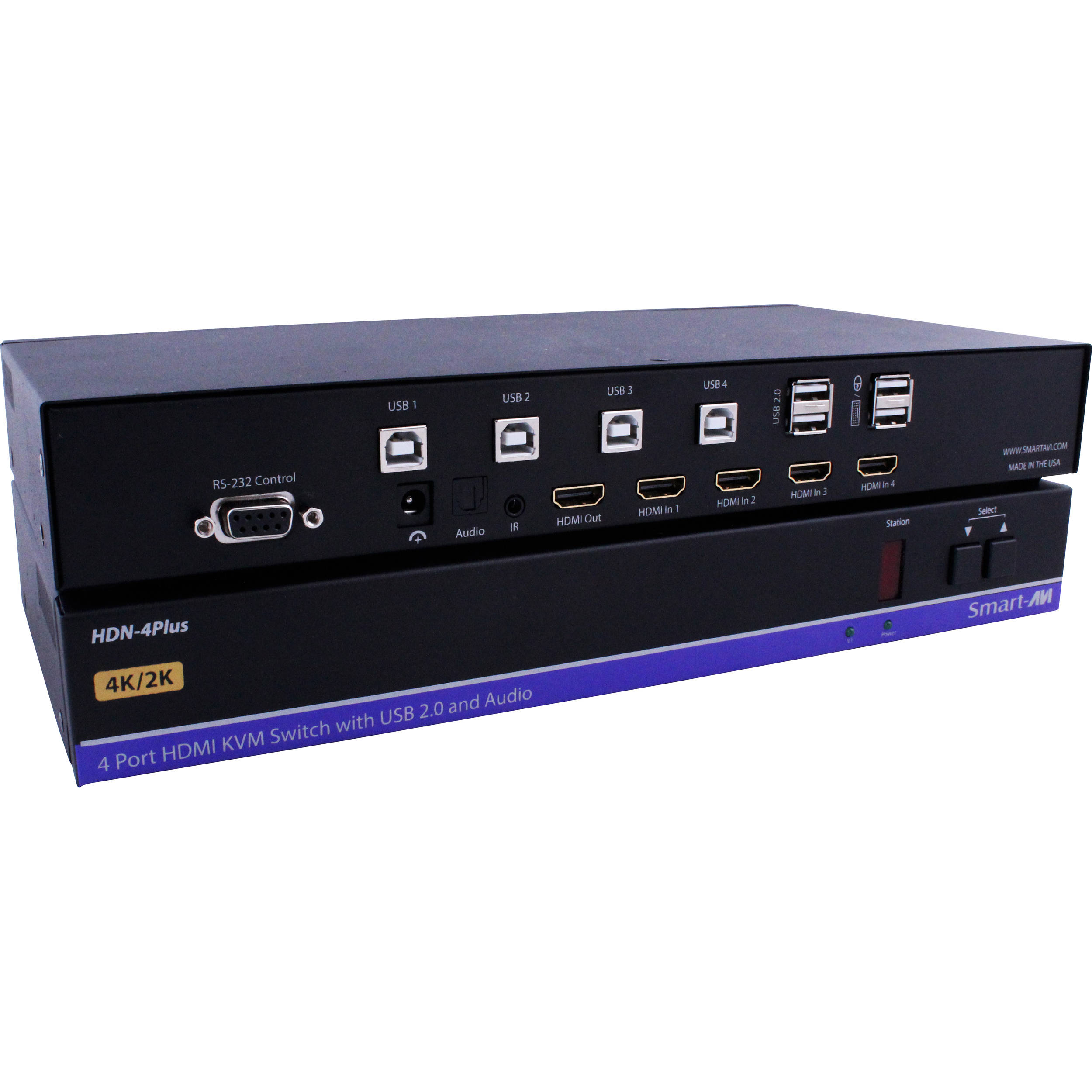

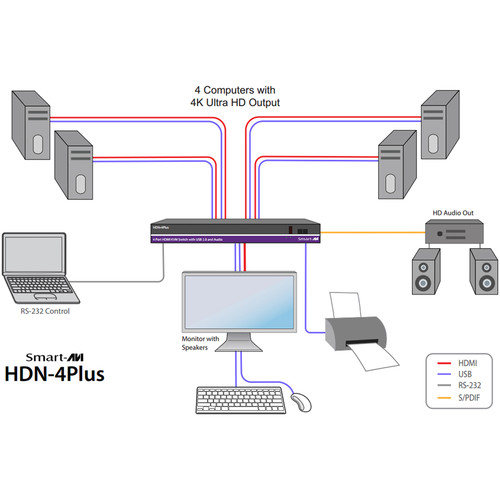

The HDN-4PLUS-S 4-Port HDMI KVM Switch from Smart-AVI is a multi-platform switch capable of managing four computers through a single HDMI monitor, USB keyboard, USB mouse, and various other USB 2.0 devices. It also supports 4K Ultra HD workstations, and features SmartPreview technology for simultaneous picture-in-picture monitoring of the other sources connected to the switch. USB emulation technology allows hot key source switching through a remote USB keyboard and mouse, and plug-and-play EDID easily implements the switch in any scenario. The HDN-4PLUS-S is HDMI 1.4 and HDCP compliant, and supports RS-232 and front panel switching. The switch also transmits digital audio, including a separate S/PDIF digital audio output for maximum flexibility.
| Weight | 5 lbs |
|---|---|
| Dimensions | 12.9 × 9.5 × 3.2 in |
| Format | HDMI 1.4 |
| Hot Keys | Keyboard |
| Humidity | 5 to 90% RH, non-condensing |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Temperature | 23 to 95°F / -5 to 35°C |
| Approvals | UL, CE, ROHS compliant |
| Power Consumption | Maximum: 3 W |
| Power | External: 100 to 240 VAC / 5 VDC, 4 A @ 20 W |
| Emulation | Keyboard, mouse |
| Front Panel | Tactile switch<br> |
| Connectors | Video Input Interface: 4 x HDMI Female<br> |
| Input Equalization | Automatic |
| Frequency Bandwidth | 10.2 GB per sec |
| IR | RC5 |
| DDC | 5 volts p-p (TTL) |
| RS-232 | Control at 115200 bps |
| USB | 2.0, 1.1, 1.0 with internal hub |
| Resolution | Up to 4K x 2K (3840 x 2160 @ 30 Hz)<br> |
| Maximum Pixel Clock | 300 MHz |
| Cable Length | Input: up to 20.0' / 6.1 m<br> |
