Description
Simplify Your Workspace with the Smart-AVI 4-Port Dual-Head HDMI KVM Switch

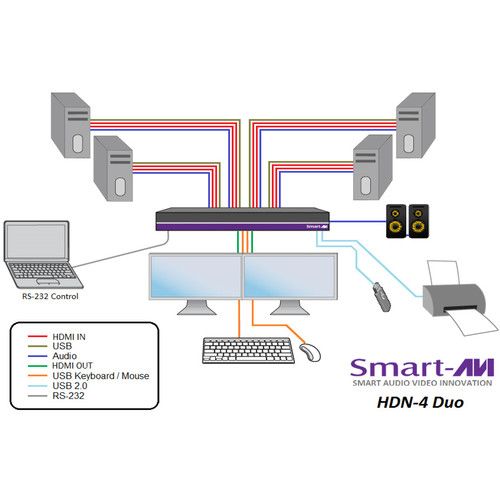

Efficiently manage multiple systems from a single workstation with the Smart-AVI 4-Port, Dual-Head HDMI KVM Switch. This advanced switch allows you to control up to four computers using just one keyboard, one mouse, and two HDMI monitors, streamlining your workspace and enhancing productivity.
Key Features:
- Dual-Head HDMI Support: Connect to two HDMI monitors for an extended desktop experience.
- 4-Port KVM Switching: Seamlessly switch between four host systems.
- Integrated 2-Port USB 2.0 Hub: Share USB peripherals like scanners and printers across connected systems.
- Broad Compatibility: Compatible with Windows, Mac, and Linux systems via HDMI, USB, and 3.5mm ports.
- High-Resolution Support: Enjoy resolutions up to 3840 x 2160 for crisp visuals.

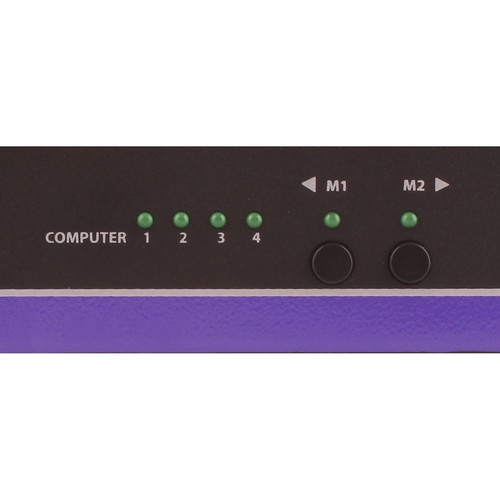

- Multiple Switching Options: Switch between systems using physical buttons, hot-key commands, or RS-232 signals.
- Keyboard/Mouse Emulation: Ensures smooth operation with keyboard and mouse emulation technology.
- EDID Pass-Through: Enhances compatibility and simplifies setup with EDID pass-through technology.
The Smart-AVI 4-Port Dual-Head HDMI KVM Switch is designed to simplify your workspace by reducing clutter and improving efficiency. With its robust feature set and broad compatibility, it’s an ideal solution for professionals seeking to optimize their multi-system environments.
Additional information
| Weight | 5.39 lbs |
|---|---|
| Dimensions | 16.2 × 11.5 × 4.3 in |

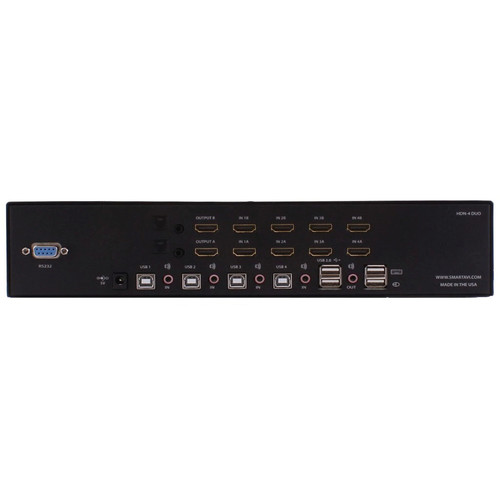

| Input | 8 x HDMI 1.4<br>4 x 3.5 mm stereo<br>4 x USB 2.0 Type-B<br>1 x RS-232 (DB9, female – 9600 N, 8, 1, no flow control) |
| Controls | Source selection buttons or hot key commands via USB keyboard |
| Humidity | 0 to 95% |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Temperature | 23 to 95°F / -5 to 35°C |
| Power Supply | 5 VDC, 4 A |
| Voltage | 100 to 240 VAC |
| Supported Operating Systems | Windows, Mac, and Linux |
| Common Mode | Rejection at 60 dB |
| Output | 2 x HDMI 1.4<br>1 x 3.5 mm stereo<br>2 x USB 1.1 Type-A<br>2 x USB 2.0 Type-A |
| Nominal Level | 0 to 1 V |
| Frequency Response | 20 Hz to 20 kHz |
| Impedance | 600 Ohm |
| Supported Cable Lengths | Input/Output: 20' / 6.1 m |
| Input Equalization | Automatic |
| DDC | 5 V p-p (TTL) |
| Supported Resolutions | Up to 3840 x 2160 @ 30 Hz |
| Dimensions (H x D x W) | 3 x 5.8 x 12.8" / 7.6 x 14.6 x 32.4 cm |
