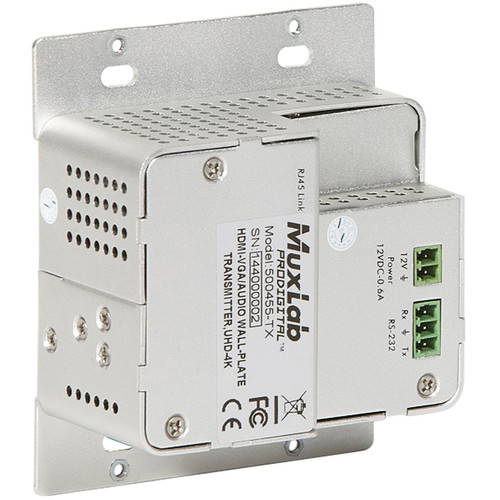

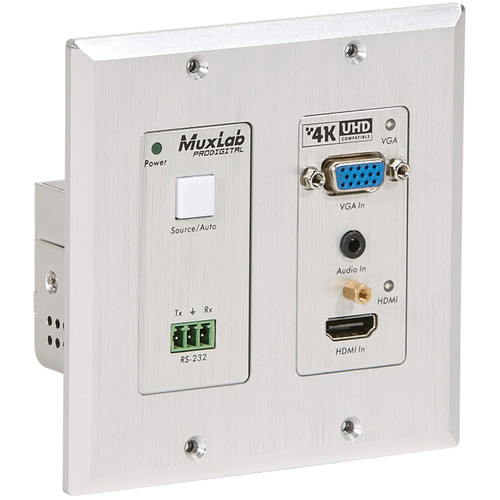

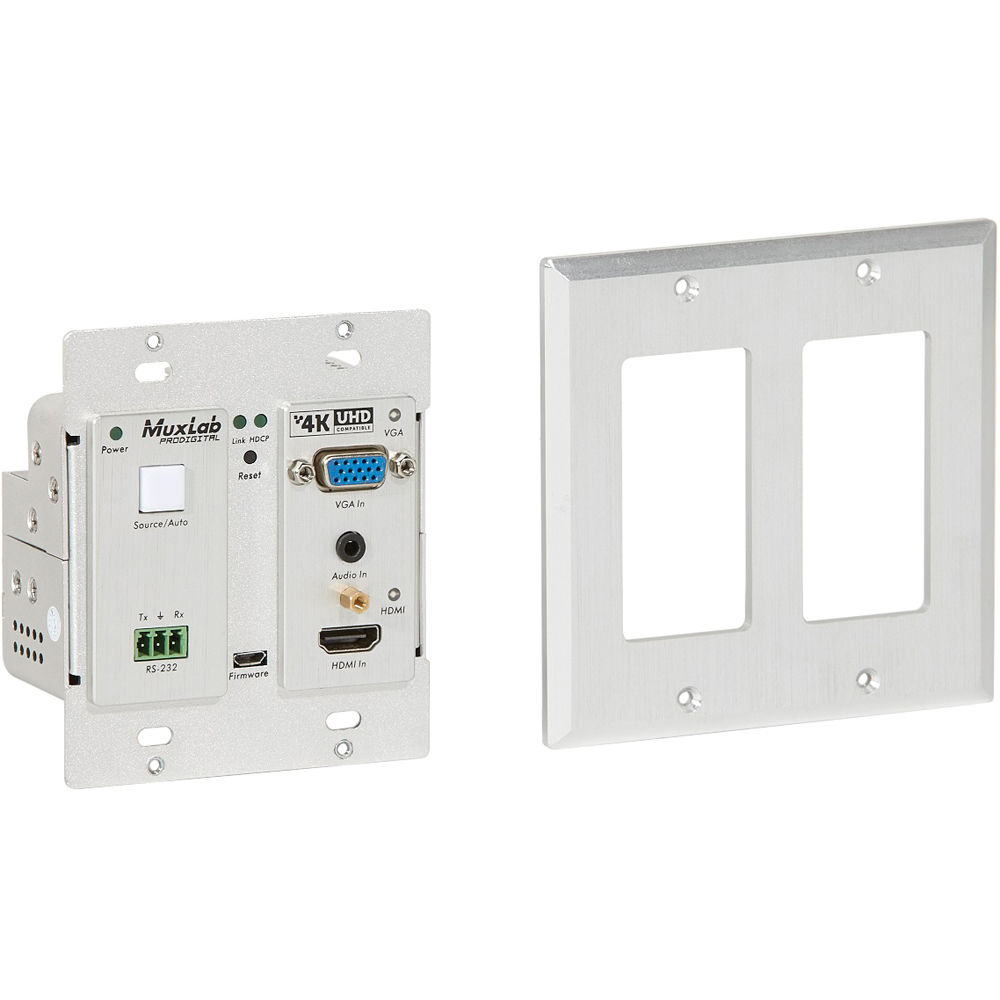

The HDMI VGA/Audio over CAT5e/6 UHD-4K Wall-Plate Transmitter from MuxLab is a Decora style transmitter wall-plate that installs in a double-gang wall box to provide a convenient interface for HDMI / VGA input sources. It has one HDMI input, one VGA input, one Audio input, and one HDBaseT output. It supports VGA with full HD scaler, and HDMI 1.4 with 4k & 3D, input signals support auto-switching and manual-switching.
The HDBaseT output supports 60m UHD video transmission, enables bi-directional RS232 communication between HDMI – VGA/Audio Wall-Plate Transmitter and remote device. The unit is powered by a 12 VDC Power Supply.
| Weight | 1.39 lbs |
|---|---|
| Dimensions | 7.3 × 5.35 × 4.45 in |
| Video Bandwidth | 10.2 Gbps |
| Power Supply | 1 x 110 – 240 VAC, 12 VDC power supply with interchangeable blades |
| Enclosure | Metal |
| Compliance | Regulatory: FCC, CE, RoHS |
| Humidity | Up to 95% non-condensing |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Power Consumption | 10.3 W |
| Compatible Receivers | 500451-RX (No Serial Port)<br> |
| Video Resolution | VGA: 800 x600, 1024 x 768, 1280 x 800, 1280 x 1024, 1440 x 900, 1600 x |
| Maximum Distance | CAT5e/6: 230' (70 m) up to 1080p Deep Color<br> |
| Connectors | 1 x HDMI<br> |
| Signals | HDMI 1.3a protocol and HDCP |
| SNR | Audio: 85 dB @ 20 Hz to 20 kHz |
| Audio Impedance | >10 ohms |
| Audio Bandwidth | 20 Hz to 20 kHz |
| Chassis Style | Decora two gang |
