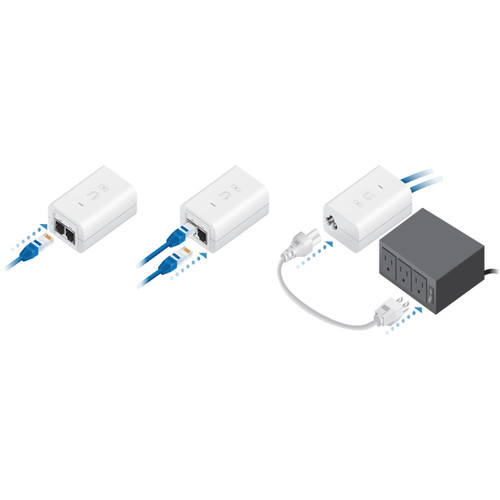

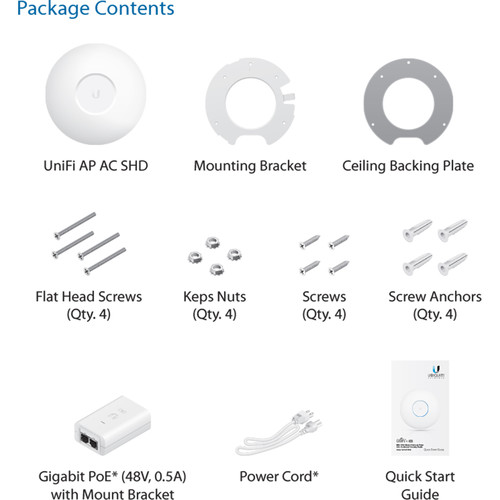

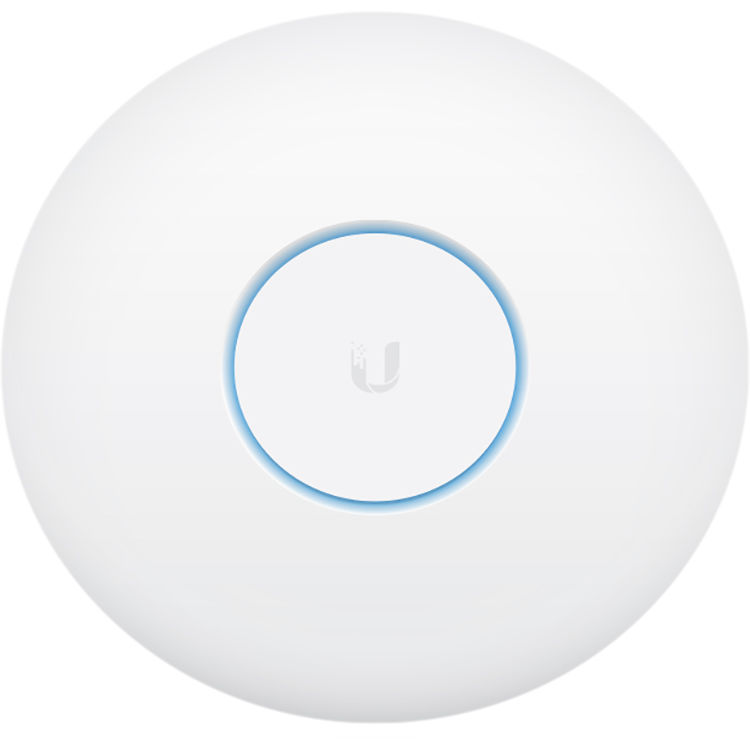

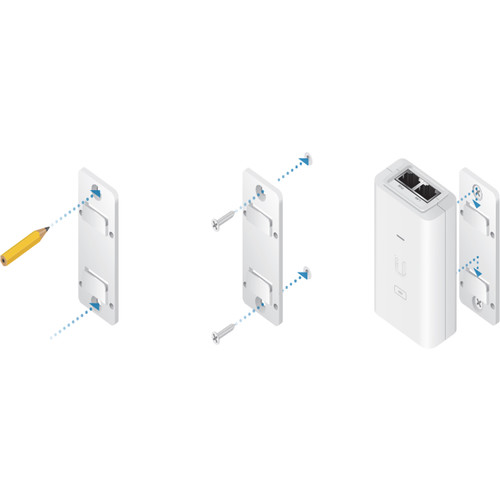

Expand your wireless network with the UAP-AC-SHD 802.11AC Wave 2 Access Point with Dedicated Security Radio from Ubiquiti Networks. This wireless access point supports 802.11a/g/b/n/ac-wave2 Wi-Fi standards and operates on both the 2.4 GHz and 5 GHz frequencies. In addition to enhanced Wi-Fi support, this AP also comes equipped with dual Gigabit Ethernet PoE compliant ports featuring 802.3at PoE+ compatibility. A PoE injector is included.
| Weight | 4.65 lbs |
|---|---|
| Dimensions | 10.6 × 10.5 × 4.85 in |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| Storage Capacity | 4 GB |

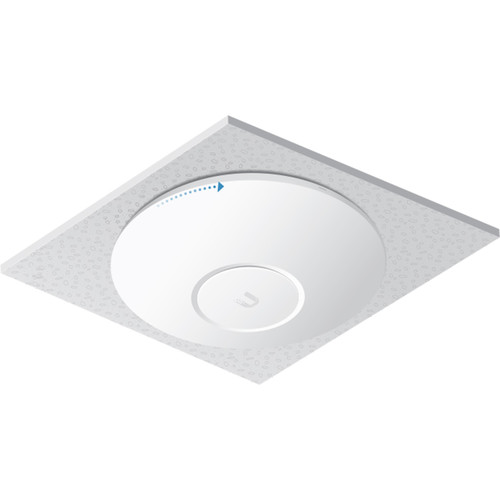

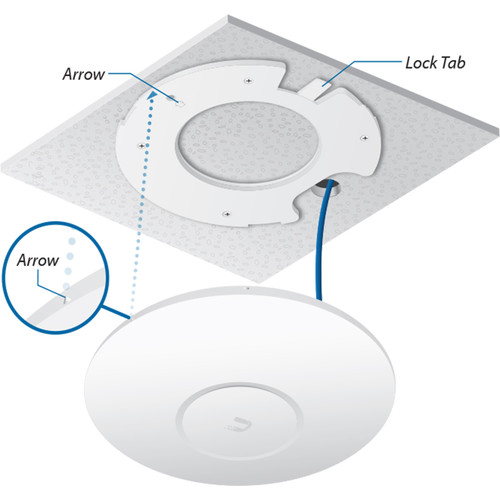

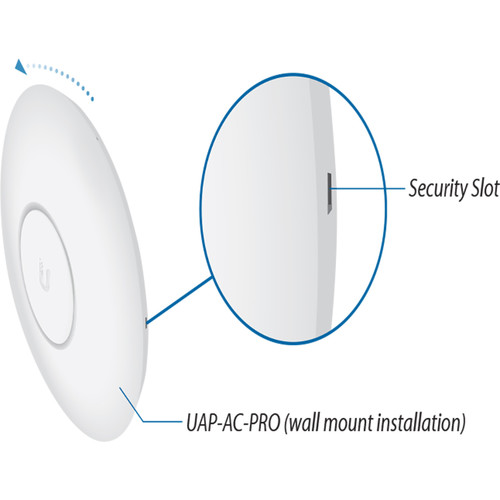

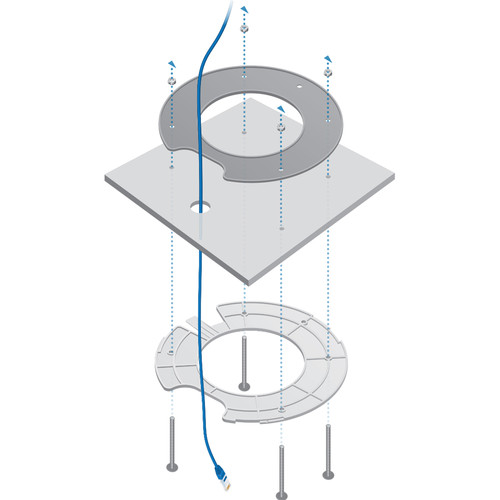

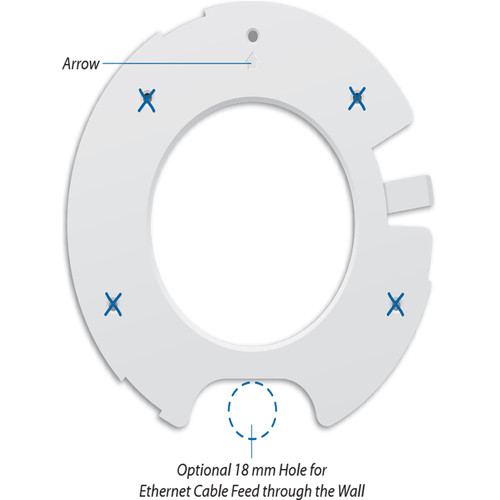

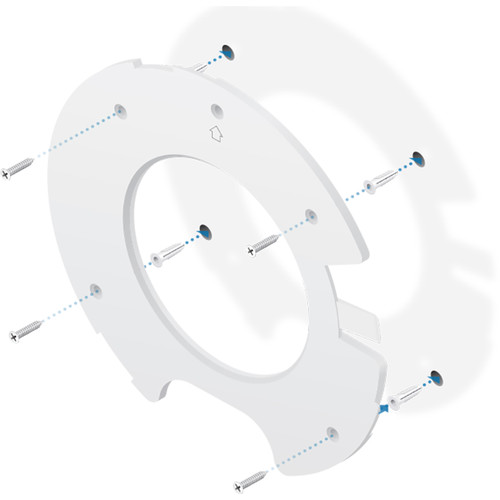

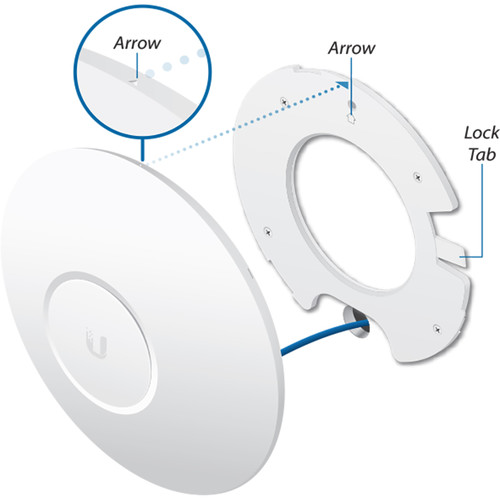

| Mount Options | Wall, Ceiling |
| Certifications | CE, FCC, IC, as per Manufacturer |
| Operating Humidity | 5 to 95% |
| Operating Temperature | 14 to 158°F / -10 to 70°C |
| Power Consumption | 20 W |
| DC Input Power | 44 to 57 VDC |
| Supported IEEE Standards | 802.11ac, 802.11a, 802.11b, 802.11g, 802.11i, 802.11n, 802.3at |
| Processor | 1.4 GHz SMP Krait Dual-Core |
| Throughput | 2500 Mb/s Total <br>2.4 GHz: 800 Mb/s <br>2.4 GHz: 1733 Mb/s |
| Number of Antennas | 4 |
| Max SSIDs Supported | 8 |
| Wireless Security | AES, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |

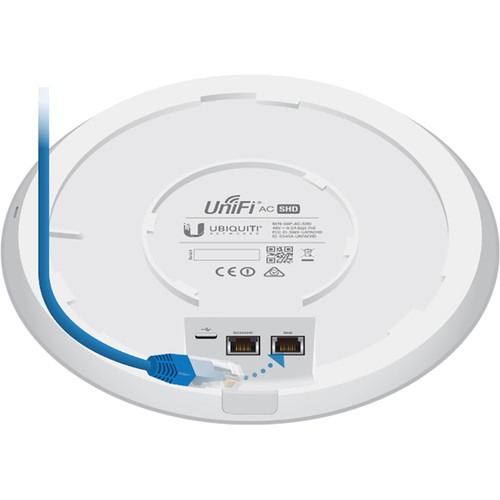

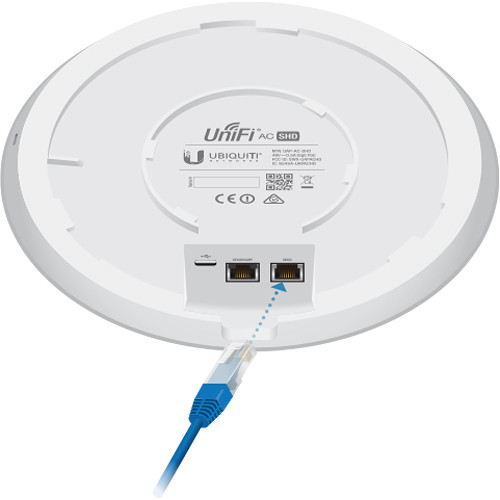

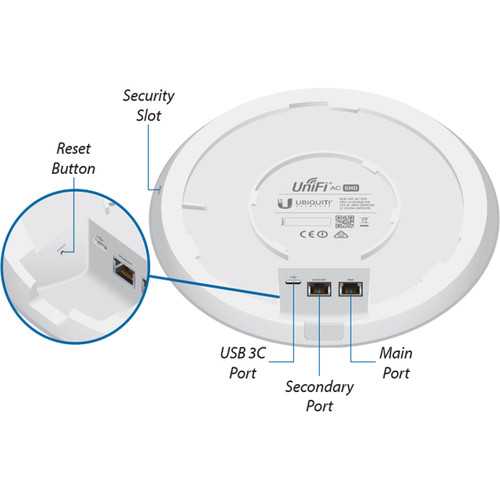

| Ports | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+<br />1 x USB Type-C |
| Antenna Placement | Internal |
| Supported Protocols | WMM |
| Transmit Power | 6 to 25 dBm |
| Antenna Gain | 3 to 4 dBi |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| MU-MIMO Support | 4 x 4 |
| Warranty Length | Limited 1-Year Warranty |
3 reviews for Ubiquiti Networks UAP-AC-SHD 802.11AC Wave 2 Access Point with Dedicated Security Radio
Only logged in customers who have purchased this product may leave a review.
Related products
Wireless Networking
$27.99
Wireless Networking
Ubiquiti Networks NBE-M5-16 5 GHz 16dBi NanoBeam airMAX Bridge
Wireless Networking
Netgear Orbi Pro AX6000 Wireless Tri-Band Gigabit Mesh Wi-Fi System (3-Pack)
Wireless Networking
StarTech 300 Mb/s PCIe 802.11 b/g/n Wireless Network Adapter
$22.50
Wireless Networking
Ubiquiti Networks NanoStation locoM5 Indoor/Outdoor airMAX CPE
Wireless Networking
ASUS RP-AC1900 Dual Band Wireless Wi-Fi/AiMesh Range Extender
Wireless Networking
Motorola MH7022 Whole Home AC2200 Wireless Tri-Band Gigabit Mesh Wi-Fi System (2-Pack)
$111.99
Wireless Networking
Ubiquiti Networks airMAX PowerBeam AC 5 GHz ISO Gen2 High Performance Bridge (5-Pack)
$454.99
Crystel Schamberger (verified owner) –
I was worried about spending the money on this AP. I have a 4500 sq/ft two story home and this single AP give me 5 ghz coverage everywhere in the house and on the back patio. Prior to this AP, I had an AC-Pro and I would get 2.4 Ghz in the majority of the house. I have ATT 1000 Fiber adn with an iphone xs Max, i get about 450mbps up and down near the center of the house and 250-300mpbs up and down in the far corners and on patio. Overall I give it 5 stars. If you need extended coverage and great speed, this is your AP. Only problem is that it gets very hot!
Reece Pfannerstill (verified owner) –
I used these to replace my long serving AP-LR Access points, what an upgrade, 5x the speed, everyone in my household noticed the difference. This is enterprise grade technology that is made for everyone. Cant go wrong with the simple SDN setup that Unifi provides. Always upgrading and enhancing through upgrades.
Quinn Ebert (verified owner) –
This product has great features and great coverages. One thing is that this device gets very warm borderline hot. Since this AP has no active ventilation I had to place this on top of aluminum block in order to tackle the thermal issues. It works great with high load of clients on average of 50 to 60 users at anytime.
