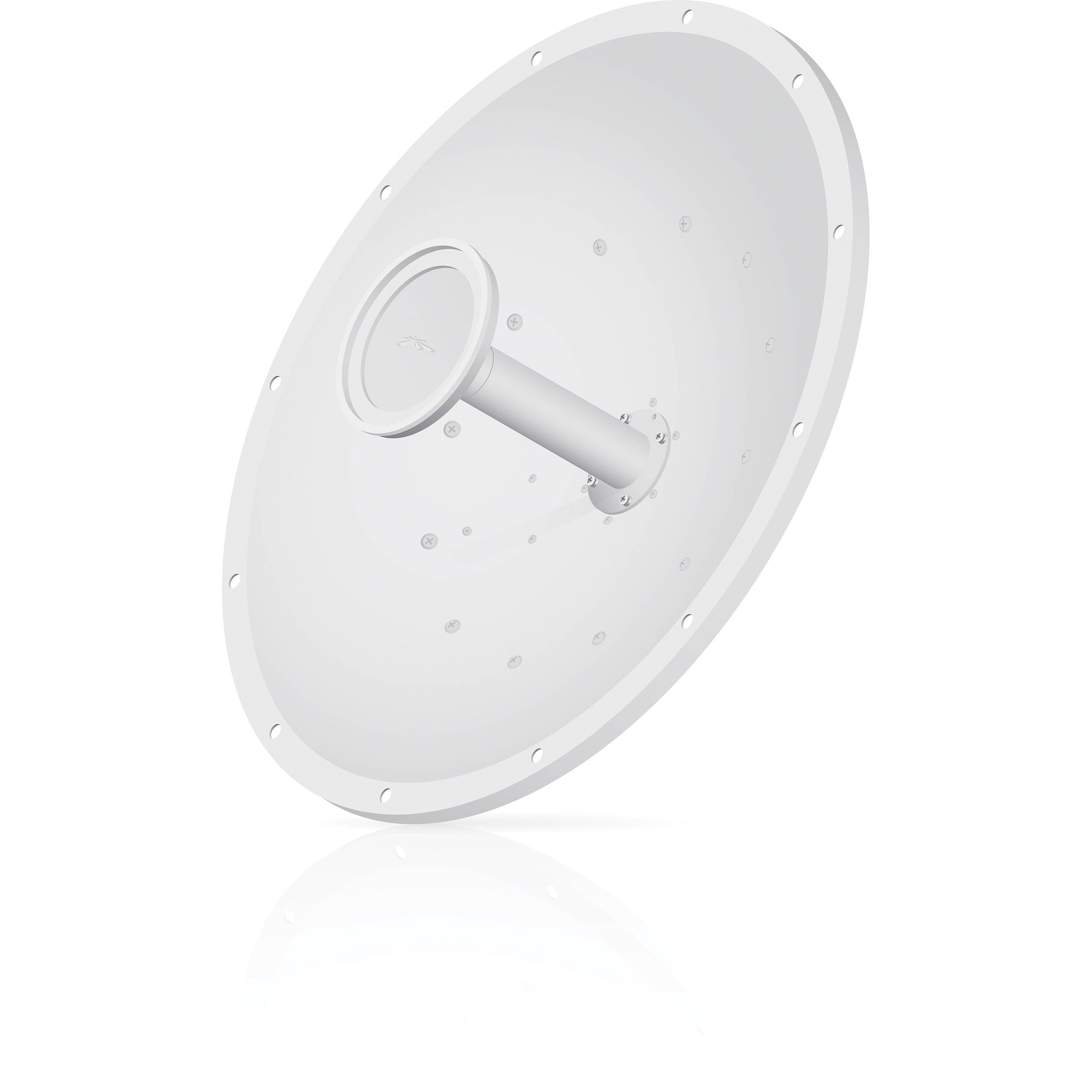

The RD-5G30 RocketDish AirMax 2×2 PtP Bridge Dish Antenna from Ubiquiti Networks features a gain of 30 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support.
| Weight | 20.8 lbs |
|---|---|
| Dimensions | 28 × 27 × 7 in |
| Frequency Range | 5.1 to 5.8 GHz |
| Gain | 30 dBi |
| Hpol Beamwidth | 5° (3 dB) |
| Vpol Beamwidth | 5° (3 dB) |
| Front-to-Back Ratio | 34 dB |
| Max VSWR | 1.4:1 |
| Wind Loading | 177 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Polarization | Dual-linear |
| Cross-pol Isolation | 35 dB minimum |
| ETSI Specification | EN 302 326 DN2 |
| Diameter | 25.6 x 25.6 x 12" (65 x 65 x 30.4 cm) |
