Description

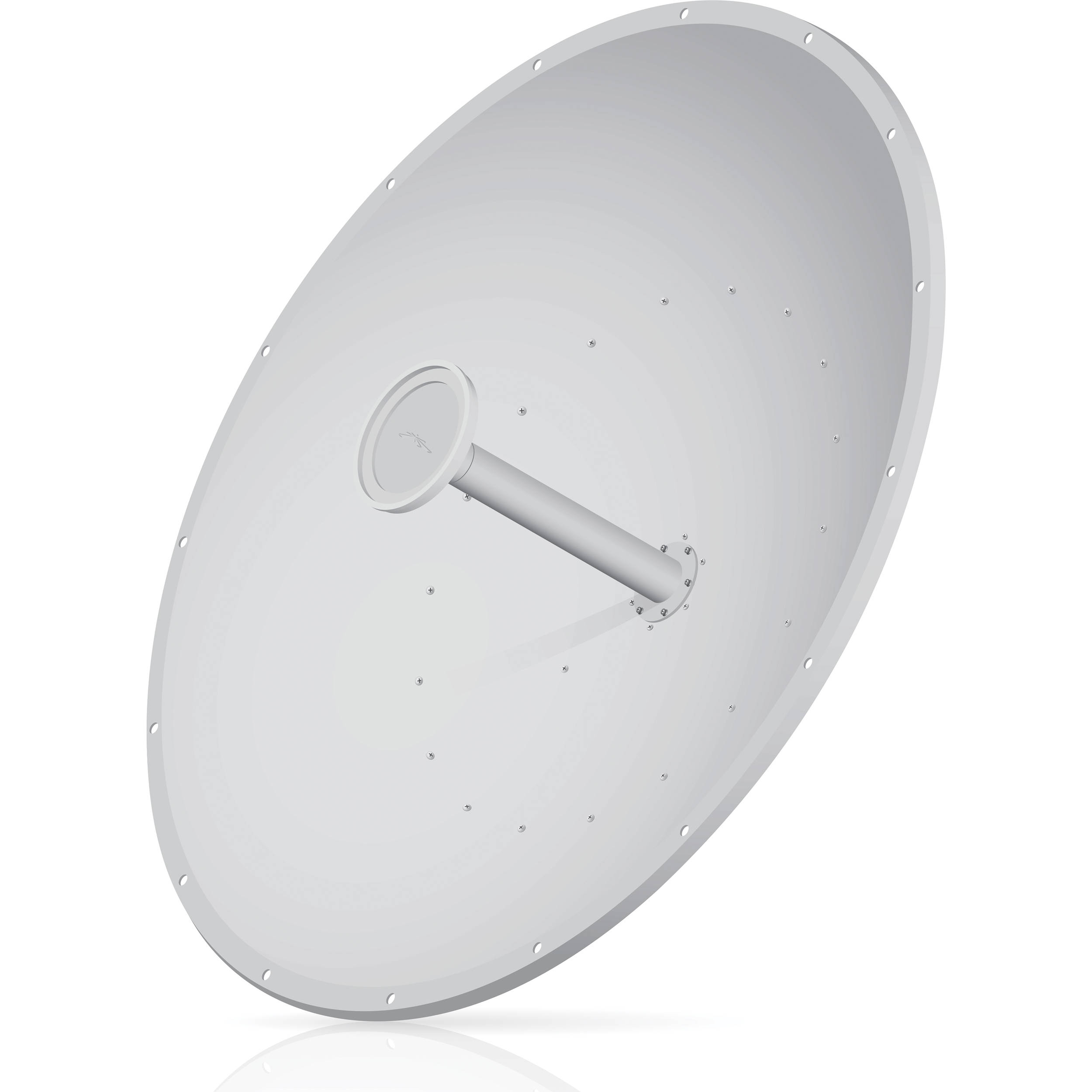

The Ubiquiti Networks RD-5G34 RocketDish AirMax 2×2 PtP Bridge Dish Antenna features a high gain of 34 dBi, ideal for creating a reliable Point-to-Point (PtP) bridge in networking applications when paired with a Rocket M BaseStation. It offers dual-polarity performance and operates on the 5 GHz frequency band, making it suitable for long-distance links. The package includes a protective shroud, a Rocket mount, and pole-mounting support for secure installation.
Additional information
| Weight | 43.5 lbs |
|---|---|
| Dimensions | 44 × 44 × 9.5 in |
| Frequency Range | 5.1 to 5.8 GHz |
| Gain | 34 dBi |
| Hpol Beamwidth | 3° (3 dB) |
| Vpol Beamwidth | 3° (3 dB) |
| Front-to-Back Ratio | 42 dB |
| Max VSWR | 1.4:1 |
| Wind Loading | 400 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Polarization | Dual-linear |
| Cross-pol Isolation | 35 dB minimum |
| ETSI Specification | EN 302 326 DN2 |
| Diameter | 41.3 x 41.3 x 16.6" (105 x 105 x 42.1 cm) |
