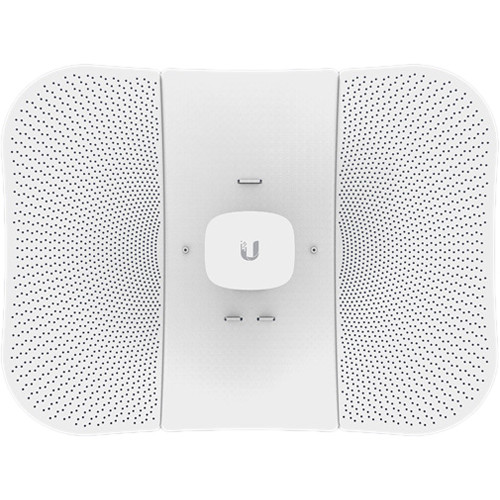

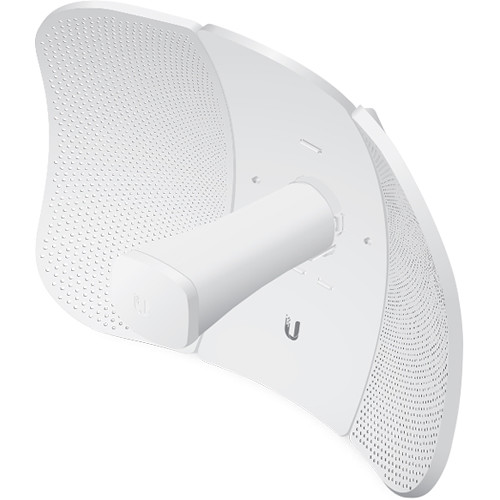

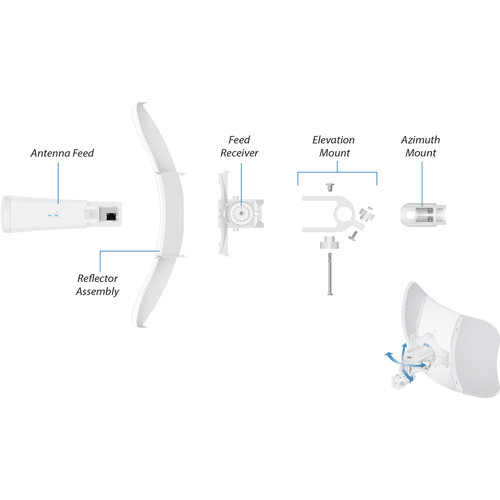

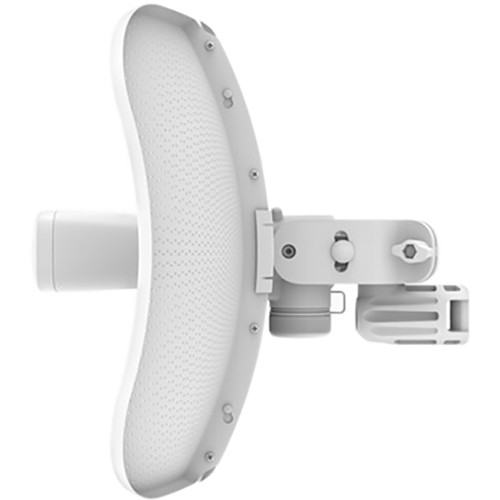

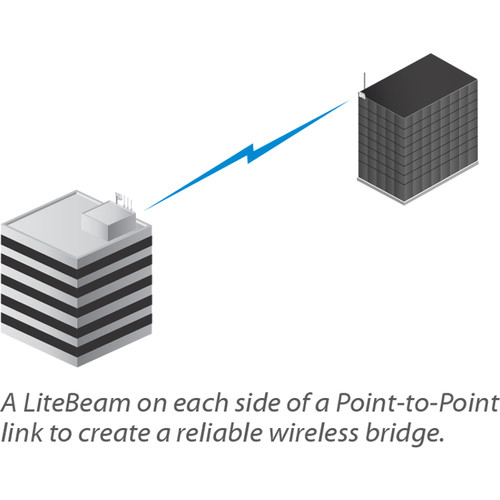

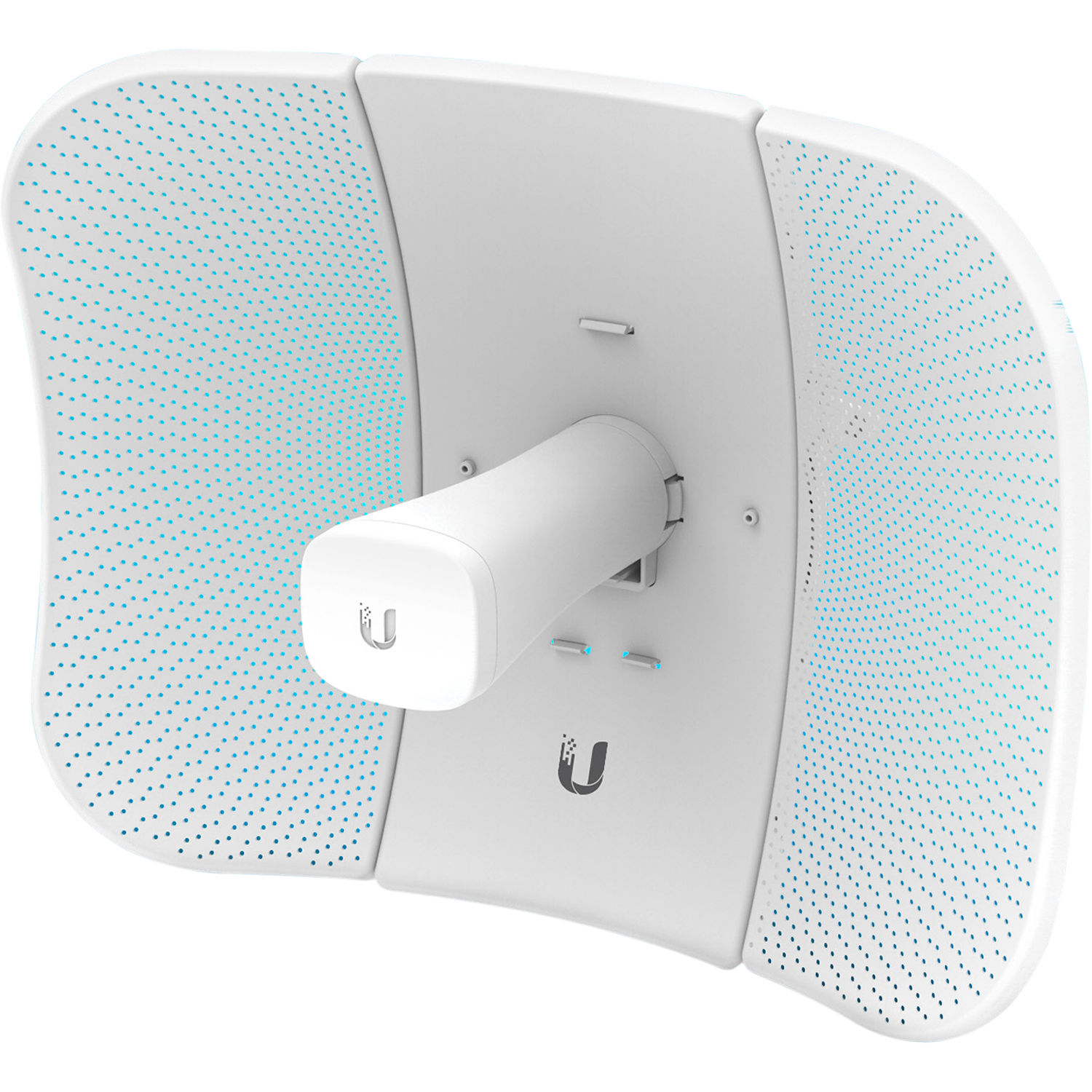

The LiteBeam AC Gen2 Airmax ac CPE with Dedicated Management Radio from Ubiquiti Networks offers a reliable 5 GHz long-distance point-to-point connection. This LiteBeam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals. Setup is simple thanks to fully adjustable hardware allowing for adjustments to be made along both axes as well as a built-in bubble level to ensure the radio is mounted properly. The 5AC Gen2 features a robust mount with separate azimuth and elevation adjustments.
| Weight | 3.55 lbs |
|---|---|
| Dimensions | 12.2 × 6.7 × 4.9 in |
| Power Supply | 24 V, 0.3 A Gigabit PoE adapter |
| Channel Sizes | PtP Mode<br> 10/20/30/40/50/60/80 MHz<br> PtMP Mode<br> 10/20/30/40 MHz |
| Temperature & Humidity | Operating Temperature<br> -40 to 158°F (-40 to 70°C)<br> Operating Humidity<br> 5 to 95% Non-condensing |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Wind Survivability | 125 mph (200 km/h) |
| Wind Loading | 61.8 lbf @ 125 mph (275 N @ 200 km/h) |
| Mounting | Pole-mounting kit |
| Enclosure | Reflector (SGCC 0.6T)<br> Plastic: PC |
| LEDs | Power, Ethernet |
| Power Consumption | Maximum Power Consumption<br> 7 W |
| Memory | 64 MB DDR2 |
| Processor | MIPS 74Kc |
| Networking Interface | 1 x 10/100/1000 Ethernet port |

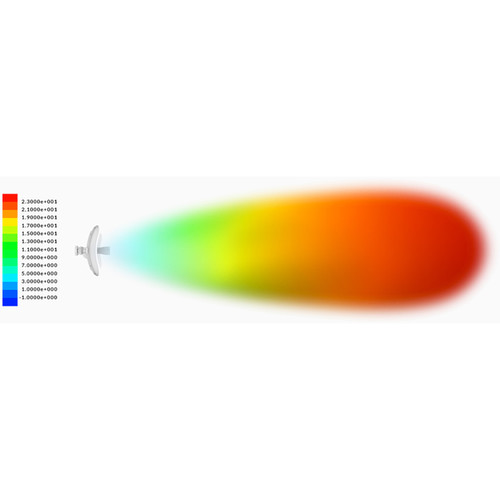

| Gain | 23 dBi |
| Operating Frequency | Worldwide<br> 5150 – 5875 MHz<br> USA: U-NII-1<br> 5150 – 5250 MHz<br> USA: U-NII-2A<br> 5250 – 5350 MHz<br> USA: U-NII-2C<br> 5470 – 5725 MHz<br> USA: U-NII-3<br> 5725 – 5850 MHz |
| Voltage | 24 V ± 10% |
| Power Method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Certifications | CE, FCC, IC |
8 reviews for Ubiquiti Networks LiteBeam AC Gen2 airMAX ac CPE with Dedicated Management Radio
Only logged in customers who have purchased this product may leave a review.
Related products
Wireless Networking
EnGenius EAP1300EXT Wave 2 11ac Dual-Band Wireless Indoor Access Point
$87.20
Wireless Networking
$108.47
Wireless Networking
$27.99
Wireless Networking
Aluratek Universal Bluetooth 5.0 Optical Audio Receiver/Transmitter
Wireless Networking
Ubiquiti Networks LTU Rocket 5 GHz LTU BaseStation Radio & PtMP Access Point
$269.49
Wireless Networking
Netgear Orbi AX4400 Wireless Tri-Band Mesh System with Built-In Cable Modem
Wireless Networking
Ubiquiti Networks NanoStation locoM5 Indoor/Outdoor airMAX CPE
Hans Tromp (verified owner) –
I have ordered Ubiquiti equipment from B&H many times. Price is always good and they get the units out the door on a timely basis.
Kaela Wuckert (verified owner) –
Have 1.4 Mile Point to Point Bridge and thruput is Greater than 200MB With the wife being happy I am happy! Will replace with the same when These wear out.
Peggie Huels (verified owner) –
This antena is easy to install and config under UNIFi app.
Keon Wisozk (verified owner) –
They work great if u know what your doing !
Nicola Erdman (verified owner) –
Cheap u buy, Cheap u get. Folks who reviewed saying it’s great more than likely have zero wireless design experience or work for Ubiquiti. There is ZERO support and the ownership just wants to sell. Big mistake to use this gear any where that you wish to have reliable, commercial grade wireless
Gianni Price (verified owner) –
As with anything Ubiquiti (except the AirFiber line) here is my observation. Inexpensive. Setup a 1/4 mile PtP link with clear line of sight, excellent fresnel zone clearance, and a low noise floor. Latest firmware as of this review. Link dropped after some time after the initial turn-up and did not return automatically. Both units needed rebooted for the link to return. Expertly configured, grounded, non-DFS channels, etc. Yes, I did it all perfectly and correctly, been doing backhauls for a very long time. The firmware is buggy as usual. Enabled watchdog as a preventative measure, if the problem persists I will just do scheduled reboots as I do with all Ubiquiti equipment (except AirFiber line).
Gladyce O’Conner (verified owner) –
I needed to link two sites a mile apart. The LiteBeam AC nodes were exactly what I was looking for. The price was right and BH got them to me in great time. Setup went well.
Joe Donnelly (verified owner) –
..y is just ok, the cone is plastic and will not hold up in the desert sun, a radiator clamp is supplied but feels cheap and not to secure to mount to pole. For $50 it did the job though. There are no instructions on qr codes on the box which intalls app and no tutorial.,, had to watch 4 YouTube videos in broken English to figure out how to install.l…l….
