Description

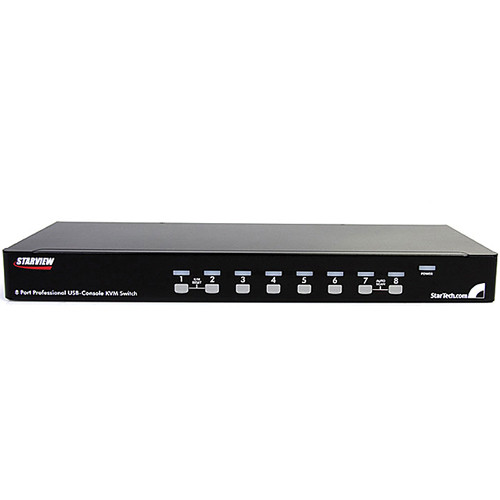

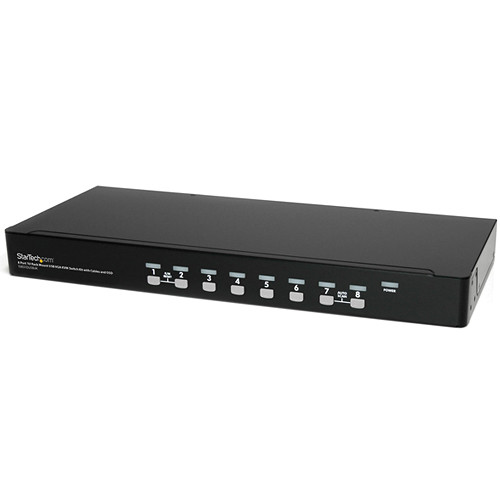

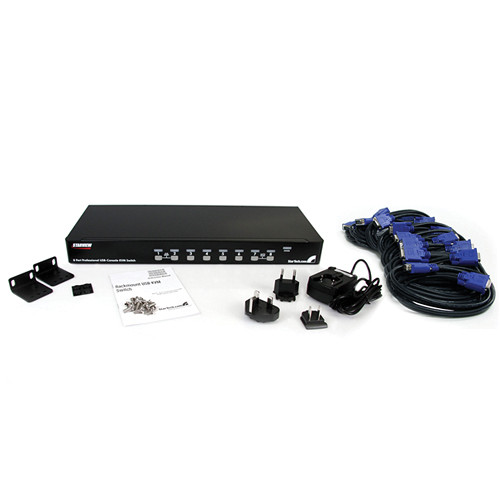

The black 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables from StarTech lets you control up to 8 USB-connected computers from a single workstation. It includes all necessary cables and accessories for easy setup. Switch between computers using hotkey commands or front panel buttons, with the added convenience of an On-Screen Display. Ideal for server rooms, it rackmounts into 1U of space and can be cascaded to control up to 64 computers.
Additional information
| Weight | 10.7 lbs |
|---|---|
| Dimensions | 23 × 10.7 × 4.8 in |
| KVM Ports | 8 |
| Input Voltage | 110 ~ 240 AC |
| Enclosure Type | Steel |
| Compliance | CE, FCC, and RoHS |
| Relative Humidity | 0~80% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Center Tip Polarity | Positive |
| Output Current | 1 A |
| Output Voltage | 12 DC |
| LED Indicators | 1 x green – power <br>8 x green – PC online <br>8 x red – PC selected |
| PC Interface | USB |
| Port Selection | Push button, hotkeys, and OSD (On Screen Display) |
| Maximum Number of Users | 1 |
| Widescreen Supported | Yes |
| Maximum Analog Resolution | 1920 x 1440 at 60 Hz (1920 x 1200 at 60 Hz – wide screen) |

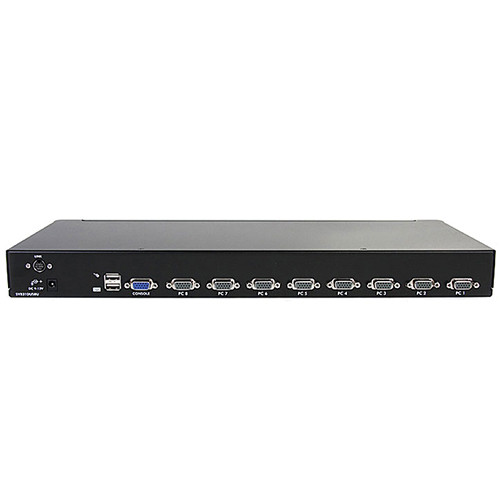

| Connectors | Console Interfaces: 1 x VGA (15-pin; high density D-Sub) female <br>2 x USB A (4-pin) female <br><br>Host Connector: 8 x VGA (15-pin; high density D-Sub) female |
| Daisy Chain | Yes |
| Rack Height | 1U |
| Rackmount | Yes |
| PC Video Type | VGA |
| Dimensions (W x H x D) | 17.1 x 1.8 x 7.1" (435 x 45 x 180 mm) |
