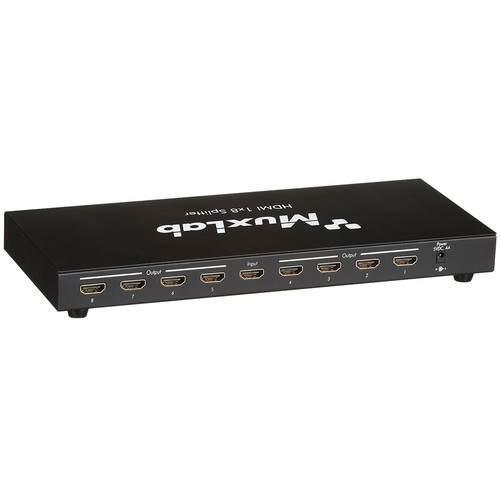

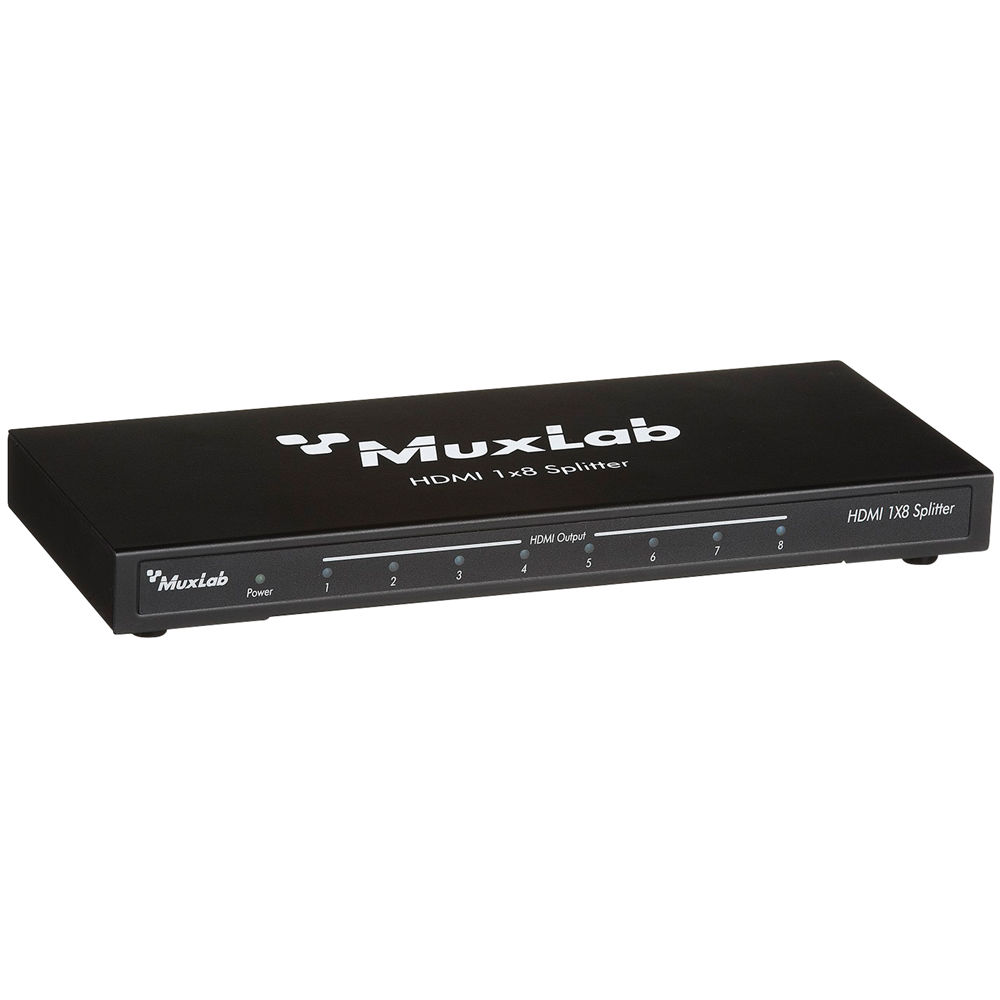

The MuxLab HDMI 1 x 8 Splitter allows you to distribute an HDMI signal to up to eight HDMI displays. Featuring HDMI 1.4 connections, it supports resolutions up to 3840 x 2160 UHD 4K @ 24/25/30 fps, including 1080p @ 60 fps. It supports up to 12-bit color depth per RGB channel, for a total of 36-bit Deep Color. It also supports 3D video and LPCM 7.1Ch audio, Dolby TrueHD audio, and DTS-HD Master Audio.
The splitter is HDCP 1.3 compliant for compatibility with HDCP content protected devices, like Blu-ray players and satellite boxes. All the connections are on the rear panel, and LED indicators on the front panel let you know which are plugged into.
| Weight | 3.25 lbs |
|---|---|
| Dimensions | 13.7 × 9.53 × 2.21 in |
| Frequency | 25 to 340 MHz |
| HDMI Protocol | 1.4 |
| Input | 1x HDMI 1.4 Type A |
| Output | 8x HDMI 1.4 Type A |
| Resolution Supported | 3840 x 2160 Ultra HD 4K @ 24/25/30 fps <br> 480i to 1080p @ 50/60 fps <br> 1080p @ 24/50/60 fps <br> VGA to UXGA |
| Color Depth | 8, 10, and 12-bit color per channel |
| Audio Supported | LPCM 7.1 Ch, Dolby TrueHD, DTS-HD Master Audio |
| HDCP Compliance | Revision 1.3 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | Up to 90% non-condensing |
| Enclosure | Metal |
| Compliance | FCC, CE, RoHS |
4 reviews for MuxLab HDMI 1 x 8 Splitter
Only logged in customers who have purchased this product may leave a review.
Related products
Cable Accessories
Smart-AVI USB2Pro USB 2.0 over CAT5 Extender Link with Power Supply
Cable Accessories
Sabrent 3-Port USB 3.1 Gen 1 Hub with HDMI Port and Power Delivery
Cable Accessories
$209.30
$171.47
Cable Accessories
$301.59
Cable Accessories
$25.12
Uriel Mraz (verified owner) –
This 1×8 unit I had brought (2) different times & both will not work. MuxLab 1×4 works prefect I have at several churches & no problems, I needed to replace the MuxLab 1×4 to MuxLab 1×8, this is the second time I tried to use the 1×8, & does not work, I installed (2) 1×4 & the system is working.. This high $$ unit does not work like their 1×4, stay away from this item & used the MuxLab 1×4 instead… I installed a very cheap 1×8 (under $50.00) & it works perfect, put the MuxLab 1×8 back in line & no work…went back to the cheap unit & it works prefect. I like MuxLab products & still will purchase but not the 1×8….
Sandrine Hilpert (verified owner) –
We have a system where the video and audio travel down different paths (to projectors and sound systems). The MuxLab appeared to add several frames to the video so that we had to adjust the audio output. It appeared to work fine on the ports where we used the video and audio from the HDMI cable itself.
Rebeca Dach (verified owner) –
I am the A/V director at church and when our current splitter would not turn on or do anything, I bought this one. Lights on the front make it easy to see where signal is sent. Fast shipping
Hilario Littel (verified owner) –
Lights lit up but none of the outputs worked. Trying to go through MuxLab now to get refund.
