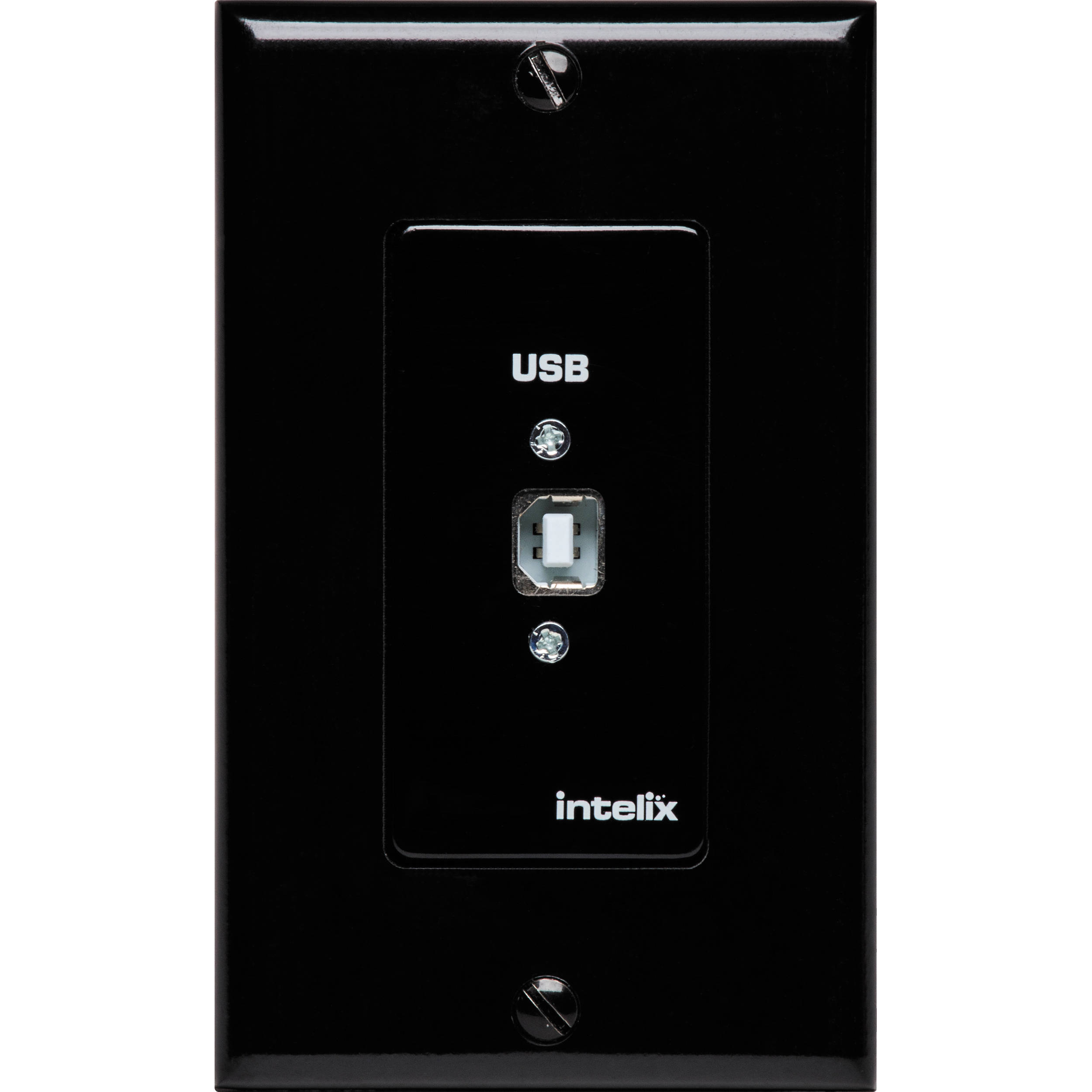

The Intelix USB-WP-H-B Full Speed USB Twisted Pair Wall Plate Extender transmits low speed USB 1.0 and 2.0 signals up to 330.0′ (100.5m) and full speed USB 1.0 and 2.0 signals up to 100.0′ (30.4m) over twisted pair cabling. The Black Decora insert allows installation in any setting, facilitating a clean and low profile installation. The unit is plug-and-play and hence does not require additional driver software. The extender uses the same USB circuit as the AVO-USB and PMI-A9 for installation flexibility.
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 4.8 × 2.9 × 2.3 in |
| USB | 1 x Female USB Type B |
| Twisted Pair | 1 x 8P8C port (Shielded RJ45) |
| Maximum Distance | 12 Mb/s: 100.0' (30.4 m), 1.5 Mb/s: 300.0' (91.4 m) |
| RJ45 Pin Configuration | Pin 1: Data +<br> Pin 2: Data -<br> Pins 3, 4, 5, and 6: GND<br> Pins 7 and 8: 5V DC |
| Enclosure | ABS Plastic |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Operating Humidity | 20 to 90%, Non-condensing |
| Storage Temperature | +14 to +140°F (-10 to +60°C) |
| Power | Via USB output of host device<br>Vbus Power: 5 VDC |
| Maximum Power Consumption | 2.5 W |
| Extension | High Power Device Extension (< 500 mA draw): 30.0' (9.1 m)<br> Low Power Device Extension (< 100 mA draw): 200' (60.9 m)<br> Self Powered Device Extension (0 mA draw): 330' (100.5 m) |
| ESD Protection | Contact Discharge: 2 kV<br> Air Discharge: 4 kV<br> IEC61000-4-2 1995 |
| Regulatory | CE, RoHS |
| Indicators | Power and Status LEDs |
