Description

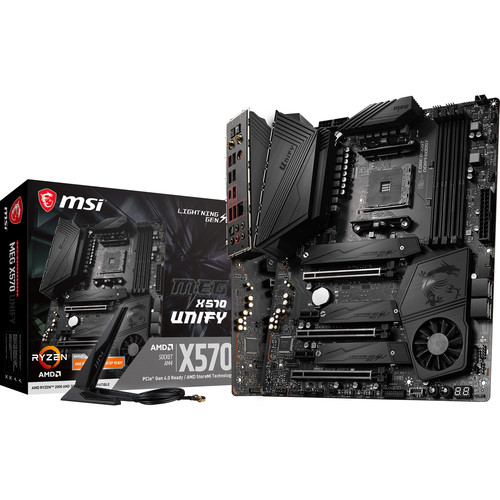

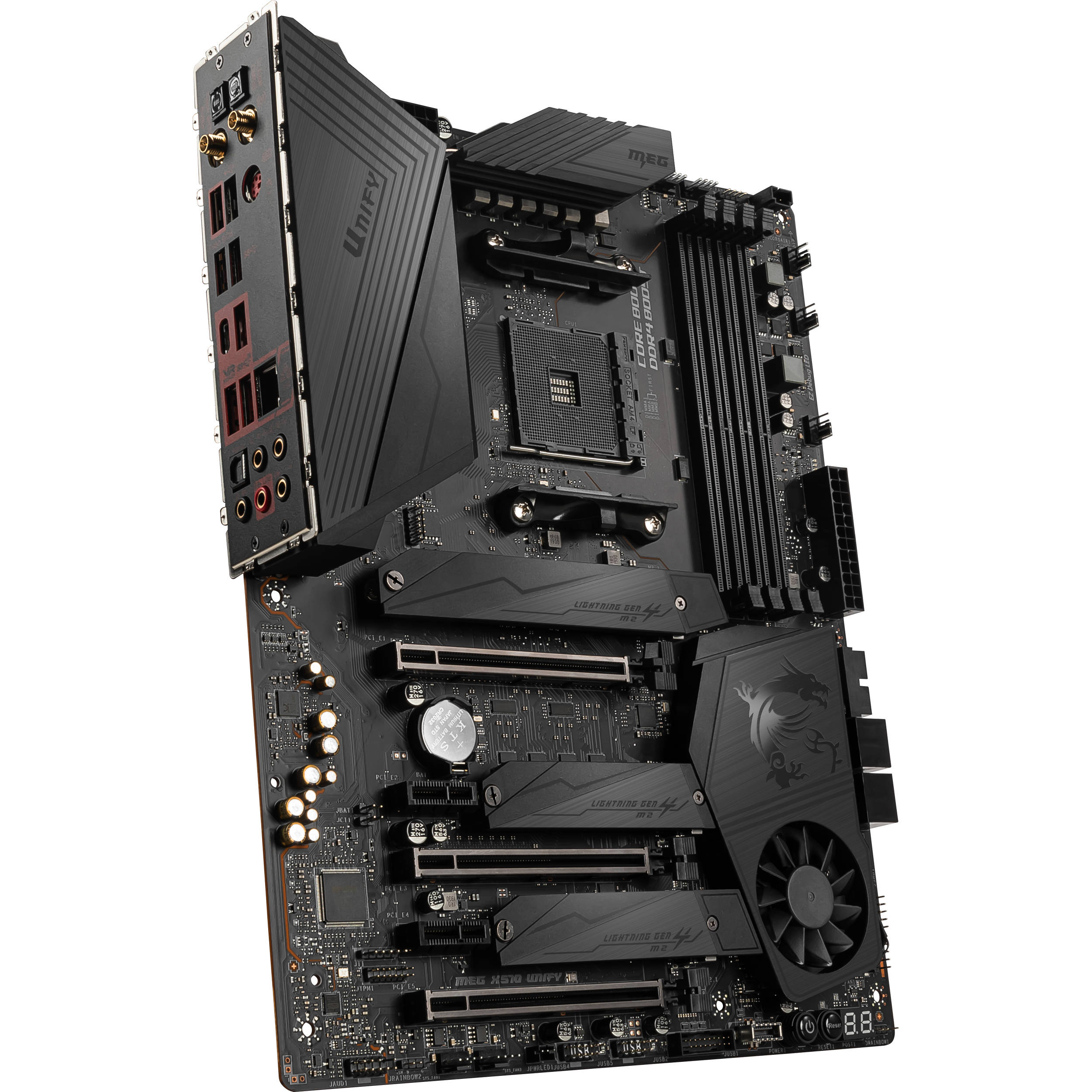

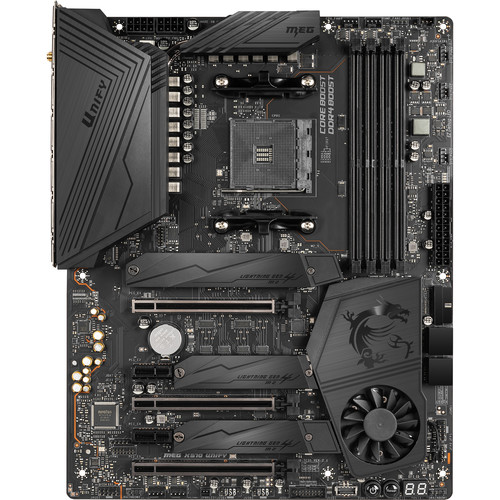

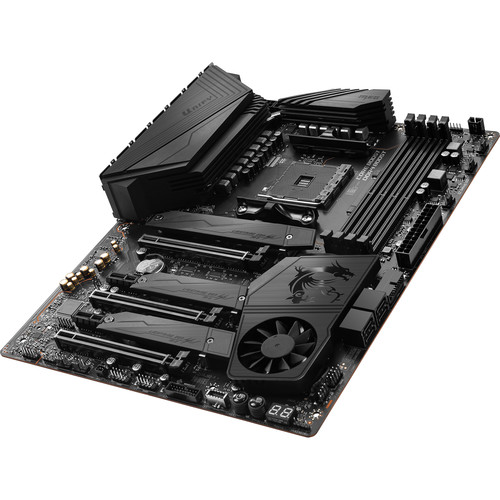

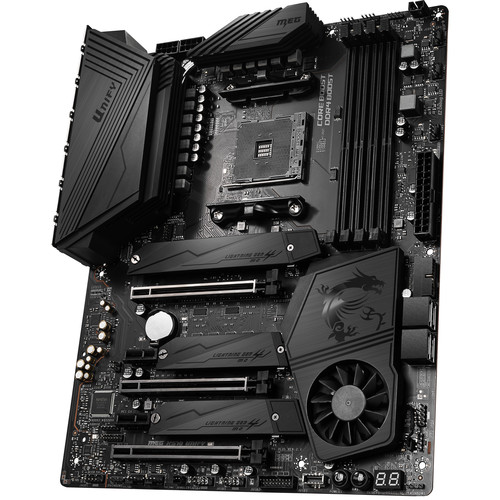

MSI MEG X570 UNIFY: Unleash Ryzen Performance
The MSI MEG X570 UNIFY AM4 ATX Motherboard is engineered for AMD enthusiasts, built on the robust X570 chipset to support second- and third-generation AMD Ryzen processors with an AM4 socket. This motherboard is designed to unlock the full potential of your Ryzen CPU.
Key Features:
- Supports up to 128GB of dual-channel DDR4 RAM overclocked to 5000 MHz and beyond across four memory slots.
- Four SATA III ports and three M.2 slots for extensive storage options.
- Three PCIe 4.0 x16 slots for high-performance graphics cards and two PCIe 4.0 x1 slots for additional expansion cards.
- Integrated Realtek RT8125 2.5 GbE LAN for fast networking.
- Intel AX200 Wi-Fi 6 and Bluetooth 5.1 for advanced wireless connectivity.
- Realtek ALC1220 7.1-channel HD audio for immersive sound.
This motherboard is perfect for gamers and content creators looking for a reliable and high-performance foundation for their system. With its cutting-edge features and robust design, the MSI MEG X570 UNIFY ensures a seamless and powerful computing experience.
Upgrade your system with the MSI MEG X570 UNIFY, where performance meets innovation. Discover the limitless possibilities with PCIe 4.0, enjoy the speed of 2.5G LAN, and immerse yourself in crystal-clear 7.1-channel HD audio. Whether you’re gaming, streaming, or creating content, this motherboard is your gateway to superior performance and connectivity.
Additional information
| Weight | 4.95 lbs |
|---|---|
| Dimensions | 13 × 11 × 3.5 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1220 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | 2-Digit Debug LED, Clear CMOS, Power, Reset |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />2 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />5 x 4-Pin System |
| Multi-GPU Support | 2-Way NVIDIA SLI<br />3-Way AMD CrossFireX |
| Expansion Slots | 2 x PCIe 4.0 x16<br />1 x PCIe 4.0 x16 (x4 mode)<br />2 x PCIe 4.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600, 4733, 4800, 5000 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback, Clear CMOS |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8125 2.5Gigabit |
| Display | None |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
| Form Factor | ATX |
