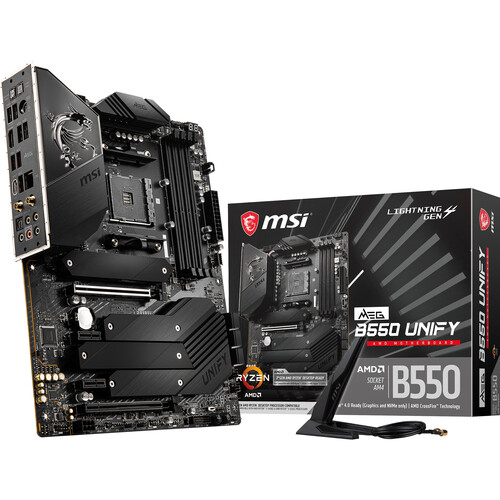

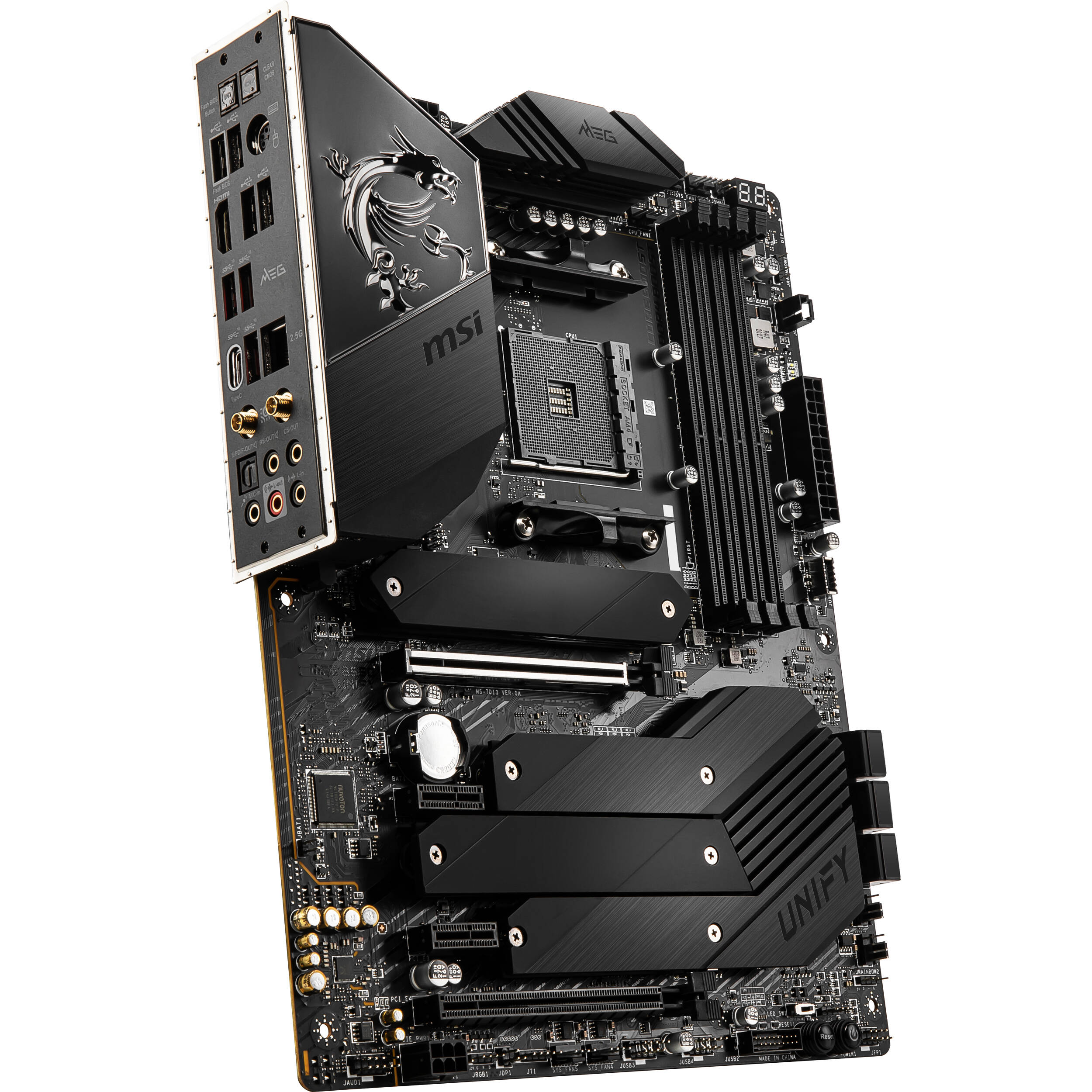

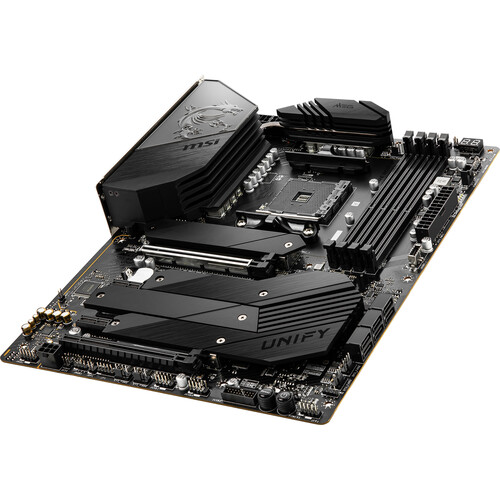

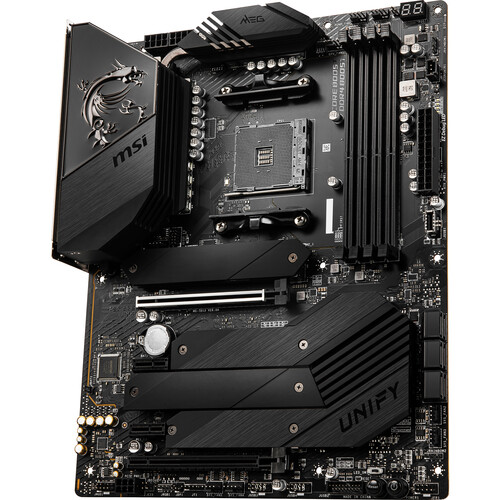

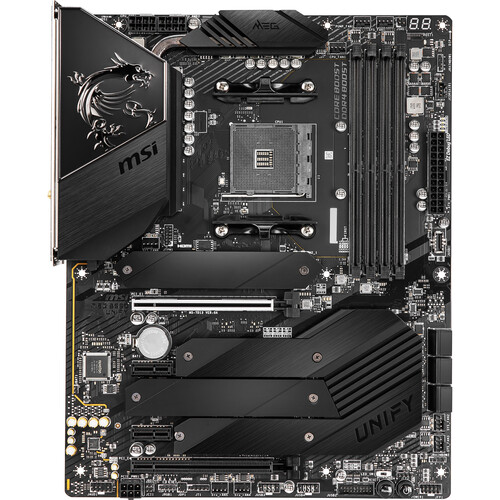

Unleash Gaming Power with MSI MEG B550 UNIFY Motherboard
Elevate your gaming experience with the MSI MEG B550 UNIFY AM4 ATX Motherboard, designed for high-performance gaming PCs. Built with the AMD B550 chipset, this motherboard supports the latest Ryzen processors via the AM4 socket, ensuring top-tier performance and compatibility.
Key Features:
- High-Speed Memory Support: Accommodates up to 128GB of DDR4 memory with speeds up to 5100 MHz for seamless multitasking.
- Advanced Storage Options: Features six SATA III ports and four M.2 PCIe slots for NVMe SSDs, providing ample storage and high-speed data transfer.
- Expansion Capabilities: Includes one PCIe 4.0 x16 and one PCIe 3.0 x16 slot for graphics cards, plus two PCIe 3.0 x1 slots for additional peripherals.
- Comprehensive Connectivity: Offers seven USB 3.2 Gen 1 ports and eight USB 2.0 ports for a wide range of devices.
- Advanced Networking: Integrated Wi-Fi 6 (802.11ax) and 2.5 gigabit Ethernet for fast, reliable online gaming.
This motherboard is optimized for Windows 10 (64-bit), ensuring a smooth and efficient computing experience. With its robust design and cutting-edge features, the MSI MEG B550 UNIFY is the perfect foundation for a high-performance gaming rig.
Upgrade your gaming setup with the MSI MEG B550 UNIFY Motherboard and enjoy unparalleled performance, speed, and connectivity.
Additional information
| Weight | 5.42 lbs |
|---|---|
| Dimensions | 13.4 × 10.7 × 3.7 in |
| Chipset | AMD B550 |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1, 10 (M.2) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1220P (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Diagnostics | Clear CMOS, Power, Reset |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 6-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| Optane Memory Support | No |
| CPU Socket | AM4 |
| Buttons | BIOS Flashback, Clear CMOS |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 2 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x HDMI 1.4 |
| Ethernet / Controller | 1 x Realtek 2.5Gigabit |
| PS/2 | 1 x Combo |
| Wi-Fi Antenna | 2 x Connector |
| Memory Slots | 4 x 288-Pin |
| U.2 | None |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600, 4733, 4866, 5000, 5100 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC, ECC (Non-ECC Mode) Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2280 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2)<br />1 x M Key 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2)<br />1 x M Key 2280 (PCIe 3.0 x4) |
| Form Factor | ATX |
