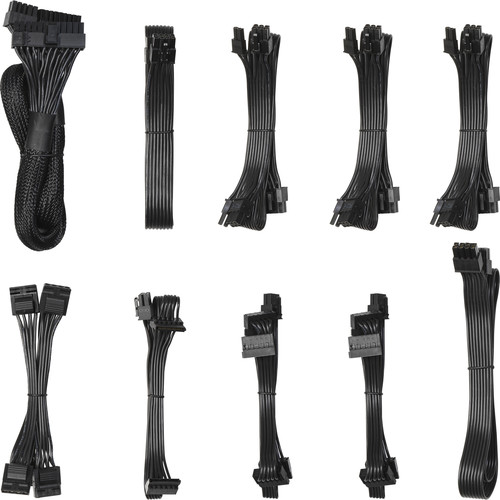

Stay powered up and cooled down with the Ion+ 860P 860W 80 PLUS Platinum Modular Power Supply from Fractal Design. Featuring a 140mm fan, a Zero RPM mode for silent operation, and a single +12V Rail delivering 860W, this ATX power supply is designed to stay cool and quiet while powering your rig. Featuring flat and sleeved fully-modular UltraFlex cables, the Ion+ 860P provides one motherboard, two CPU, six PCIe, and ten SATA connectors, as well as four 4-pin peripheral connectors. Complying to ATX12V 2.4 and EPS12V 2.92 specifications, the Fractal Ion+ Platinum features a lifespan of up to 100,000 hours. In addition to the modular cables and AC power cord, this PSU also comes with a cable storage pouch and a hardware kit with screws and zip ties.
| Weight | 7.01 lbs |
|---|---|
| Dimensions | 12.8 × 8.3 × 4.5 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 8-Pin EPS CPU<br />6 x 6+2-Pin PCIe<br />10 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 22 A |
| Certifications | BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4, EPS 12 V v2.92 |
| Form Factor | ATX |
| Storage Temperature | 122°F / 50°C |
| Bearing Type | Fluid Dynamic Bearings (FDB) |

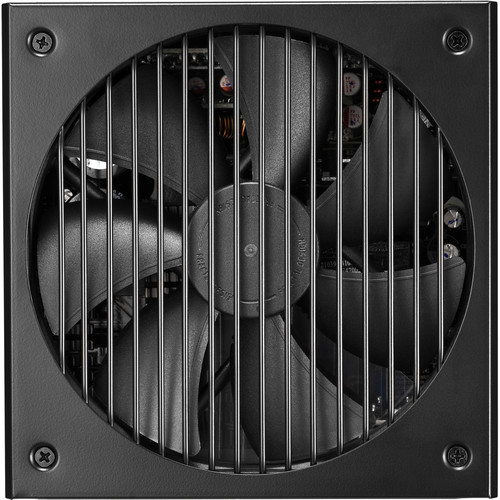

| Fan Size | 140 mm |
| Efficiency Rating | 80 PLUS Platinum |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 22 A |
| Cable Design | Flat, Modular, Sleeved |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 860 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 860 W |
| EPS Connector Distances | 27.6" / 700 mm<br />23.6" / 600 mm |
| ATX Connector Distance | 23.6" / 600 mm |
| Peripheral Connector Distances | 15.7" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />25.6" / 650 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
4 reviews for Fractal Design Ion+ 860P 860W 80 PLUS Platinum Modular Power Supply
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
$27.99
Desktop Components
Desktop Components
$69.22
Desktop Components
Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply
$82.49
Desktop Components
$71.49
Desktop Components
$14.99
Desktop Components
$164.06
Desktop Components
Adam Schmitt (verified owner) –
Excellent psu fully modular 80plus platinum 140mm fan excellent cooling can not hear it 860w dont cheap out on psu on a gaming build or plan to have instability know what your doing or buy it built I would highly recommend this psu
Kamren Bailey (verified owner) –
I purchased the Fractal Design Ion+ 860 PLUS Platinum modular PSU with the highest regard and confidence in Fractal Design as a company. This PSU is yet another example of a product engineered and built with excellence as the standard. The 860 is overkill for my build (a music production PC), but since B&H did not have the 660 or 760 in stock at the time I felt the extra $20-30 for an 860 (that future-proofs my system in the event I want to add a second GPU) was justifiable. I have never heard the fan running – and that’s what you want with a PC intended for music production – a silent machine.
Travis Roob (verified owner) –
I just retired from a long career as a lawyer and I wanted to do something completely different and relaxing for my first week off of full time work. I do a lot of photography as a hobby and I have many tens of thousands of high resolution photographs. I had been using the same computer for about 10 years, but it was getting very slow, I was running out of storage and various parts were showing their age. Therefore, I decided to spend my first week building a new computer myself for the first time. This power supply was easy to install. It is a solid piece of kit. The instructions were helpful, and it came with all of the cables and screws necessary to hook everything up. Long story short, much to my joy and amazement the computer has run flawlessly from the instant I plugged it in and pushed the on button. I could not be happier. The system was fun to build, I learned a lot about building and setting up my own system. Also, I have to say thank you to the people at B&H. They patiently answered my questions when I was deciding what components to purchase. The folks that I talked to were very knowledgeable and helpful. They promptly helped me to swap out a couple of components which were delayed due to back ordering, so all of the parts were ready when I was to finish the project. THANK YOU.
Major Beer (verified owner) –
I use this to power my TR 3960 + Nv 2080 super system. Very quiet and is well built. Definitely worth the price if you don’t need RGB in the system.
