Description
The KH2508A 8-port Cat 5 High-Density KVM Switch with Kit from ATEN is a control unit which allows administrators and users to access and control multiple computers from two PS/2 or USB KVM consoles. The KH2508A allows for 8 computer connections and control for up to 128 computers via daisy chaining. The KVM switch was designed to enable administrators to manage their entire server room and data center devices conveniently and, when needed, remotely.
Additional information
| Weight | 8.1 lbs |
|---|---|
| Dimensions | 21.4 × 9.4 × 5.4 in |
| Max Computer Connections | Direct: 8 <br>Maximum: 128 (via daisy chain) |
| Console Port Connectors | Keyboard: 2 x 6-pin mini-DIN Female (Purple); 2 x USB Type A Female (White) <br>Video: 2 x HDB-15 Female (Blue) <br>Mouse: 2 x 6-pin mini-DIN Female (Green); 2 x USB Type A Female (White) |

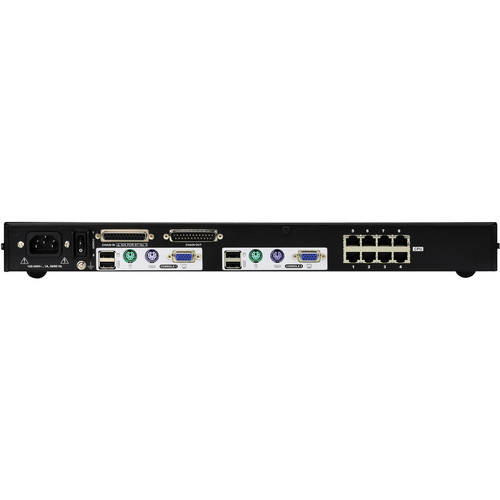

| Connectors | KVM Ports: 8 x RJ-45 Female <br>Daisy Chain Ports: 1 x DB-25 Male (Black); 1 x DB-25 Female (Black) <br>Power: 1 x 3-prong AC socket <br>F/W Upgrade: 1 x RJ-11 Female (Black) |
| Switches | Reset: 1 x Semi-recessed push-button <Br>Power: 1 x Rocker <br>Port Selection: 8 x Push-button <br>F/W Upgrade: 1 x Slide |
| LEDs | On Line: 8 (Green) <br>Selected: 8 (Orange) <br>Power: 1 (Blue) <br>Station ID: 1 x 7-segment (Orange) |
| Emulation | Keyboard/Mouse: PS/2; USB |
| Video Resolution | 1600 x 1200 @ 60 Hz(40 m); 1280 x 1024 @ 75 Hz (50 m with KA7xx adapter cable) |
| Scan Interval | 1-255 sec |
| Input Rating | 100 to 240 VAC; 50/60 Hz; 1A |
| Power Consumption | 120 V / 7.2 W; 230 V / 8.6 W |
| Port Selection | On Screen Display, Hotkeys, Push-buttons |
| Housing | Metal |
| Supported Operating Systems | Windows, Mac, Sun, and serial |
| Dimensions (L x W x H) | 17.2 x 6.1 x 1.7" (43.7 x 15.6 x 4.4 cm) |
