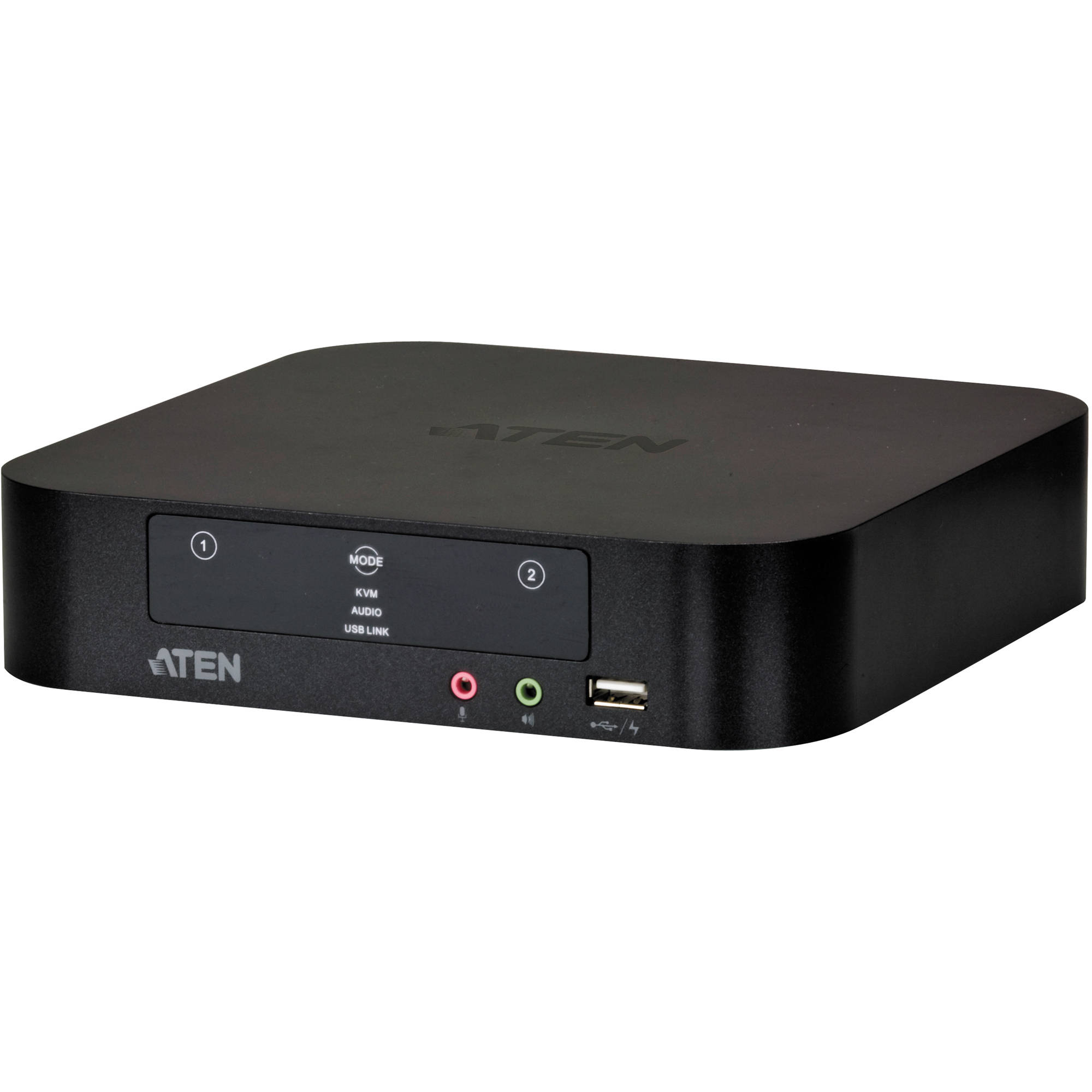

ATEN 2-Port USB 2.0 Dual View Mini DisplayPort KVMP Switch CS1942
$298.97
Access two computers from a single USB keyboard and mouse with dual displays using ATEN CS1942, a KVM switch with mini DisplayPort, USB 2.0 hub, and front panel USB quick charge.
In stock
Description
The ATEN CS1942 2-Port USB 2.0 Dual View Mini DisplayPort KVMP Switch enables you to control two computers from a single USB keyboard and USB mouse across dual displays. This KVM switch combines a dual view 2-port mini DisplayPort switch with a 2-port USB 2.0 hub, including a front panel USB quick charge port for your mobile devices. It features mini TOSLINK connectors for audio, along with standard 3.5mm audio jacks, allowing for flexible audio connections. The switch supports independent switching for USB peripherals, audio, and KVM focus, and includes keyboard and mouse emulation and bypass functionality.
Additional information
| Weight | 4.15 lbs |
|---|---|
| Dimensions | 10.9 × 10.5 × 5.2 in |
| Computer Connections | 2 |
| Console Ports | Keyboard: 1 x USB Type A Female (Black)<br>Video: 2 x Mini DisplayPort Female (Black)<br>Mouse: 1 x USB Type A Female (Black)<br>Speaker: 1 x Mini TOSLINK Jack Female (Black); 1 x 3.5 mm Audio Jack Female (Green)<br>Microphone: 1 x Mini TOSLINK Jack Female (Black); 1 x 3.5 mm Audio Jack Female (Pink) |
| KVM Ports | Keyboard/Mouse: 2 x USB Type B Female (White)<br>Video: 4 x Mini DisplayPort Female (Black)<br>Speaker: 2 x Mini TOSLINK Jack Female (Black)<br>Microphone: 2 x Mini TOSLINK Jack Female (Black) |
| Connectors | USB 2.0 Hub: 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)<br>Power: 1 x DC Jack |
| Port Selection | Touch panel switches, Hotkey, Mouse |
| Switches | 3 x Point touch panel |
| LEDs | KVM: 2 x (Orange)<br>Audio: 2 x (Green)<br>USB: 2 x (Green) |
| Emulation | Keyboard/Mouse: USB |
| Video Resolution | DP: 2560 x 1600 @ 60 Hz<br>3D Display: 1920 x 1080 @ 120 Hz |
| Scan Interval | 1 – 99 sec (Default: 5 sec) |
| Power Consumption | 5.3 VDC; 6.68 W |
| Housing | Plastic |
| Supported Operating Systems | Windows, Mac, and Linux |
| Dimensions (L x W x H) | 7.8 x 7.8 x 1.8" (19.8 x 19.8 x 4.6 cm) |
