Description

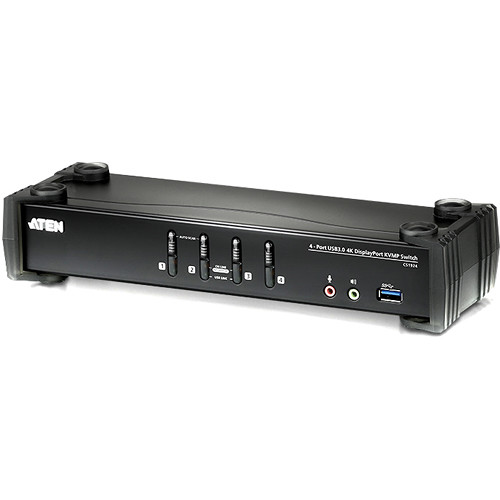

The ATEN CS1924 4-Port USB 3.1 Gen 1 4K DisplayPort KVMP Switch offers superior performance, delivering up to 4K resolution and featuring a USB 3.1 Gen 1 hub with SuperSpeed 5 Gb/s data transfer rates. As a versatile KVM switch, it enables control over 4 DisplayPort computers using a single USB keyboard, USB mouse, and monitor, enhancing productivity. For seamless operation, the CS1924 provides three convenient switching methods: front panel pushbuttons, mouse, and hotkeys. ATEN’s independent switching allows for focused KVM control on one computer while USB peripherals focus on another, eliminating the need for a separate USB hub or peripheral sharer. With its comprehensive features, the CS1924 is perfect for applications demanding high video clarity and fast data transfer rates, such as video post-production and CAD design. It also allows for sharing HD audio from each computer and supports Multi-Stream Transport (MST) for multiple monitors through a single DisplayPort connector, ideal for expanded workspaces.
Additional information
| Weight | 5.9 lbs |
|---|---|
| Dimensions | 12.8 × 8.4 × 4 in |
| Computer Connections | 4 |
| Port Selection | Hotkey, pushbutton, mouse |
| Console Ports | 4 x USB1.1 type A female (black)<br> 1 x DisplayPort female (black)<br> 2 x Mini stereo jack female (green; 1 x front, 1 x rear)<br> 2 x Mini stereo jack female (pink; 1 x front, 1 x rear) |
| KVM Ports | 4 x USB3.1 Gen1 type B female (blue)<br> 4 x DisplayPort female (black)<br> 4 x Mini stereo jack Female (green)<br> 4 x Mini stereo jack Female (pink) |
| Power | 1 x DC jack |
| USB Hub | 2 x USB 3.1 Gen1 type A female (blue; 1 x front panel; 1 x rear panel) |
| Switches | 4 x Pushbutton for selection |
| LED | On Line /Link: 4 x Selected (orange)<br> USB Link: 4 x Links(green) |
| Keyboard / Mouse | USB |
| Video | 096 x 2160 @ 60 Hz |
| Scan Interval | 1 to 99 seconds (default: 5 sec.) |
| Power Consumption | 5 VDC |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | 4 to 140°F / -20 to 60°C |
| Humidity | 0 to 80% RH, non-condensing |
| Housing | Metal, plastic |
