Description

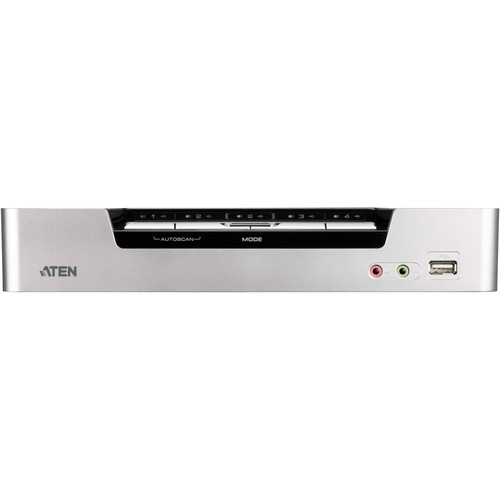

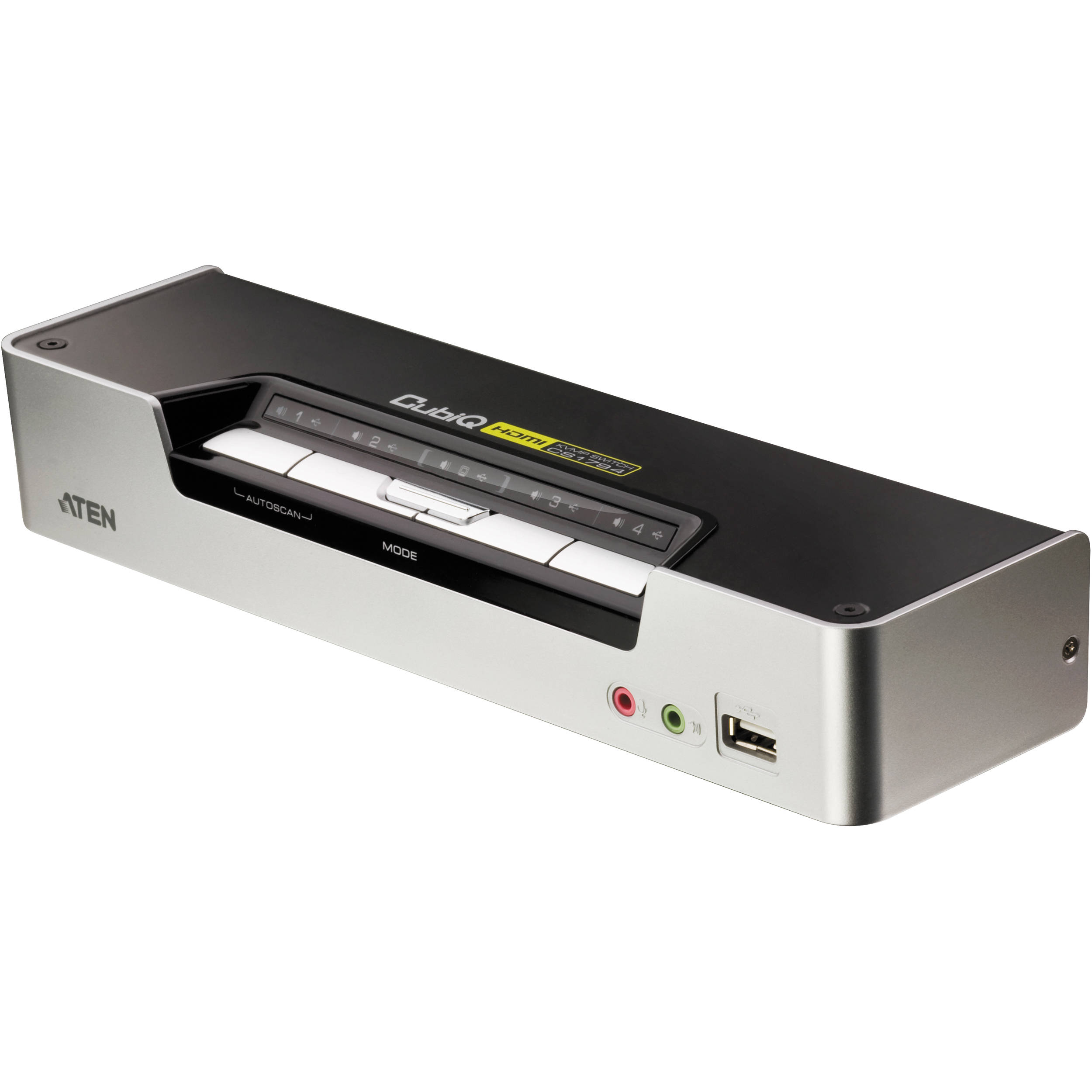

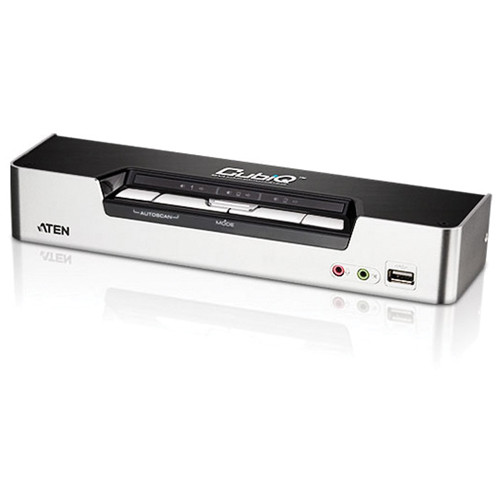

The CS1794 4-Port USB 2.0 HDMI KVMP Switch from ATEN seamlessly integrates a 4-port KVMP switch with a 2-port USB 2.0 hub, ideal for sharing USB peripherals and switching between multiple HDMI-enabled devices. Enjoy high-quality HDMI signals and integrated high-definition sound with ATEN’s Video DataSync™ technology. Switching is conveniently accessible via front panel push-buttons and keyboard hotkeys. The CS1794 is compatible with major operating systems including Windows, Mac, and Linux, and is firmware upgradeable for future-proof functionality.
Additional information
| Weight | 4.45 lbs |
|---|---|
| Dimensions | 12.9 × 8.4 × 3.9 in |
| Max Computer Connections | 4 |

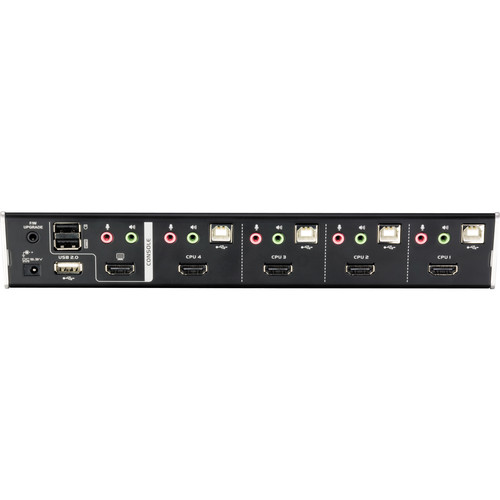

| KVM Ports | Keyboard/Mouse: 4 x USB Type B Female (White) <br>Video: 4 x HDMI Type A Female (Black) <br>Speaker: 4 x Mini Stereo Jack Female (Green) <br>Mic: 4 x Mini Stereo Jack Female (Pink) |
| Console Ports | Keyboard: 1 x USB Type A Female (Black) <br>Video: 1 x HDMI Type A Female (Black) <br>Mouse: 1 x USB Type A (Female) <br>Speaker: 2 x Mini Stereo Jack Female (Green) <br>Mic: 2 x Mini Stereo Jack Female (Pink) |
| Connectors | F/W Upgrade: 1 x 4-conductor 3.5 mm Jack <br>Power: 1 x DC Jack <br>USB 2.0 Hub: 2 x USB Type A Female (White) |
| Video Resolution | 1080p (HDTV) / 1920 x 1200 (DVI) |
| Scan Interval | 1-99 sec (Default: 5 sec) |
| Power Consumption | DC 5.3 V; 4.8 W |
| Port Selection | Front panel pushbuttons; hotkeys |
| Housing | Metal and plastic |
| Switches | 5 x Push-buttons |
| LEDs | Audio: 5 Green <br> KVM: 5 Orange <br> USB: 5 USB |
| Compatible Operating Systems | Windows, Linux, and Mac |
| Dimensions (L x W x H) | 10.3 x 2.8 x 1.8" (26.2 x 7.2 x 4.6 cm) |
