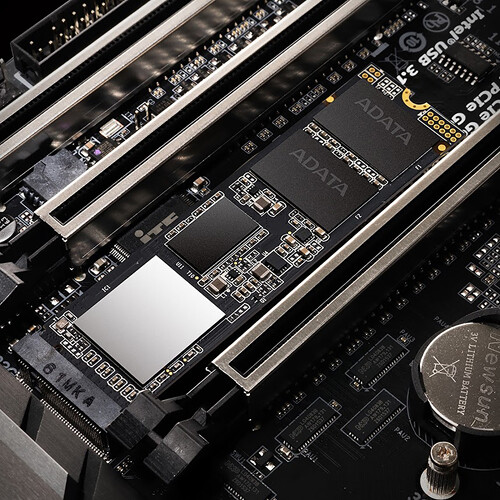

Enhance your gaming performance storage capacity with the 256GB SX8200 Pro NVMe M.2 Internal SSD from XPG in your computer system. Featuring 3D NAND flash technology, this 256GB M.2 NVMe PCIe 3.0 x4 solid-state drive installs into a compatible 2280 drive slot to handle demanding tasks such as gaming and 4K video editing. Accelerated by SLC caching and a DRAM cache buffer, its maximum read and write speeds are 3500 MB/s and 1200 MB/s respectively, delivering the performance needed to quickly load complex games with expansive levels. For extra style, the drive’s includes a XPG branded heatsink that helps to manage the drive’s temperatures and avoid speed throttling. The SX8200 Pro also supports LDPC (Low-Density Parity-Check) error correcting technology that detects and fixes a range of file transfer errors in addition to end-to-end data protection and RAID support.

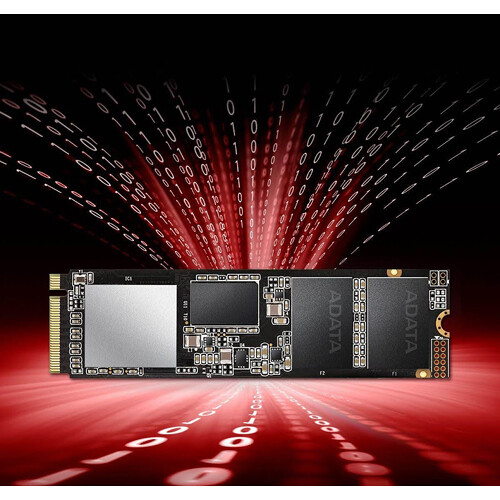

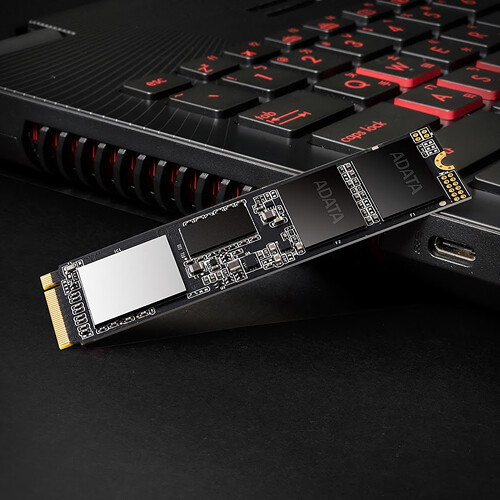

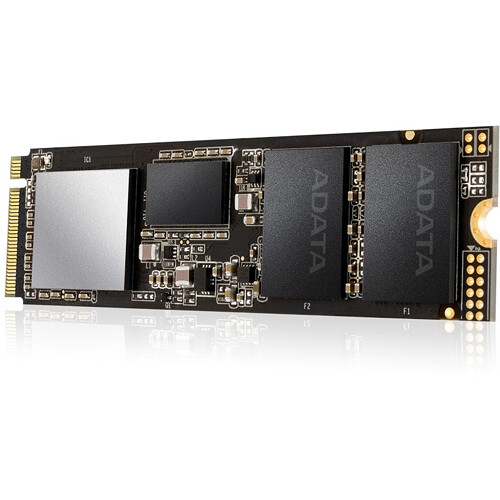

XPG 256GB SX8200 Pro NVMe M.2 Internal SSD
$34.99
Free U.S. Standard Shipping
30-Day Money Back
100% Secure Payments
Top-notch support
In stock
Weight | 0.07 lbs |
---|---|
Dimensions | 5.1 × 4.1 × 0.7 in |
Storage Capacity | 256 GB |
Interface | PCIe 3.0 x4 |
Write Speed | Maximum: 1200 MB/s<br />Random: 290, 000 IOPS 4 KB Files<br />Sequential: 1100 MB/s |
Read Speed | Maximum: 3500 MB/s<br />Random: 220, 000 IOPS 4 KB Files<br />Sequential: 2950 MB/s |
Drive Type | SSD |
Form Factor | M.2 2280 |
Flash Memory Type | Tri-Level Cell (TLC) |
Endurance (Total Bytes Written) | 160 TB |
Mean Time Between Failures (MTBF) | 2.0 Million Hours |
Power Draw | 0.33 W (Active)<br />0.14 W (Standby) |
Operating Shock | 1500 G / 0.5 ms |
Operating Temperature | 32 to 158°F / 0 to 70°C |
Storage Temperature | -40 to 185°F / -40 to 85°C |
Dimensions (W x H x D) | 0.87 x 0.14 x 3.15" / 22 x 3.5 x 80 mm |
Warranty Length | Limited 5-Year Warranty |
8 reviews for XPG 256GB SX8200 Pro NVMe M.2 Internal SSD
Only logged in customers who have purchased this product may leave a review.
Related products
Rated 4.71 out of 5
$6.99
Internal Drives
Rated 4.14 out of 5
$344.49
Rated 3.75 out of 5
$186.75
Internal Drives
WD 3TB Red Plus 5400 rpm SATA III 3.5″ Internal NAS HDD (CMR)
Rated 3.86 out of 5
$58.49
Internal Drives
Rated 5.00 out of 5
$259.99
Internal Drives
Rated 4.71 out of 5
$547.49
Internal Drives
Rated 5.00 out of 5
$47.99
Jacquelyn Hartmann (verified owner) –
I use this SSD in an eternal NVME enclosure with a Thunderbolt/USB C interface. It’s been working great. I haven’t done any direct performance analysis but my backups now are at least a magnitude faster which is all I really care about.
Monica Harvey (verified owner) –
Being a video editor I needed to upgrade my Rendering Drive with a very fast solution, to help save precious time and increase my overall productivity … so I went with this 2TB M.2 NVMe flashdrive. When rendering a video file in the background, it’s AT LEAST 2x the speed of my old drive and I COULDN’T BE HAPPIER!!!
Bernadine Stokes (verified owner) –
Comes with a basic heatspreader with an easy application (but no screw). Seemed fine as a drive and was speedy when it worked. Sadly my particular item had issues with crashing and often disappeared from BIOS. Thankfully B&H customer support let me return it!
Titus Abbott (verified owner) –
512MB doesn’t cut it any longer for a boot drive where it is necessary to store the multiple programs required in media production. It is really nice to have high speed space where one can store video work files in progress. I have not been able to yet achieve the full advertised speed yet, but that could possibly be as a result of configuration or thermal throttling. Further work on my part will be necessary, but I am happy with the current speed and price.
Oceane Gaylord (verified owner) –
I’m getting consistent 2.1GB/s sequential write and 2.8GB/s sequential read. Sustained write is more of a mixed bag for very large files. Most transfers larger than about 25GB tend to slow down to around 500MB/s. Ultimately, that’s expected for this price point. If you need good sustained write and transfer tons of large files, go with a Samsung EVO. Installation was easy and the included stick on heat spreader was nice and thin so it fit on my motherboard’s low-clearance rear M.2 slot. After initialization with Disk Management in Windows, it works as expected.
Abigail Gleichner (verified owner) –
Really makes a difference with 150GB of MSFS 2020.
Jazmyne Christiansen (verified owner) –
I plugged 4 XPG 2TB SX8200 Pros into an OWC 4M2 enclosure and configured it as RAID4. Even on a TB2 iMac, I’m getting 1300MB/s. Editing 4k video is a breeze.
Tyrese Towne (verified owner) –
I picked this up to put into an older system that I was selling. It is shockingly fast! Windows 10 was installed in about 10 minutes and boot times from power on to the desktop take 10 seconds. Read/write performance is great as well. The “heat spreader” that ships with it is about 0.5 mm thick aluminum and comes with a thermal pad, it’s more of an aesthetic piece but at least it’s better than nothing.
