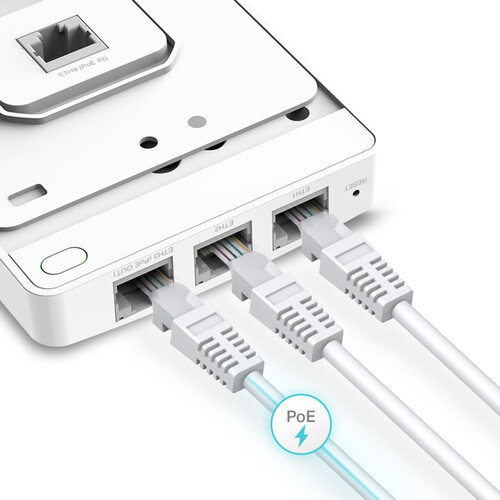

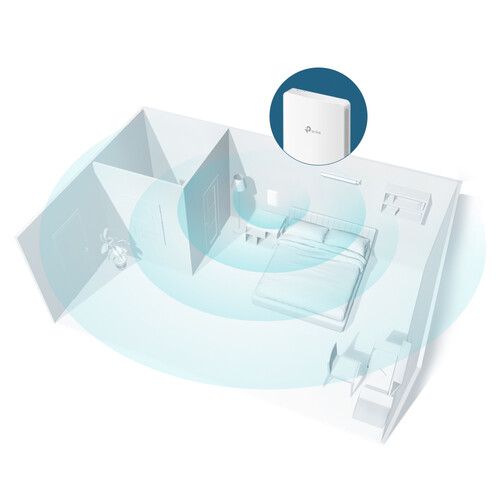

Expand your business’s Wi-Fi coverage with elegance using the EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Compatible with 86mm junction boxes with PoE support, this wireless dual-band wall-plate mounting access point measures less than an inch thick to unobtrusively blend in with environments such as offices and hotel rooms. It includes high-powered internal antennas that deliver a maximum data transfer rate of up to 867 Mb/s at 5 GHz and 300 Mb/s at 2.4 GHz to help ensure far reaching and stable wireless coverage. There are three 1000 Mb/s access Ethernet ports and one uplink 802.3af/at PoE port. The uplink port powers the access point while a pass-through port delivers power to IP phones, cameras, intercoms, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
| Weight | 0.69 lbs |
|---|---|
| Dimensions | 7.2 × 4.6 × 1.3 in |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| Operation Modes | Access Point |
| Mount Options | Wall |
| IP Rating | None |
| Storage Humidity | 5 to 90% |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Consumption | ≤24.4 W |
| Storage Capacity | None |
| Throughput | 1167 Mb/s Total <br>5 GHz: 867 Mb/s <br>2.4 GHz: 300 Mb/s |
| Max SSIDs Supported | 16 |
| Lock Slot | Yes |
| Number of Antennas | 2 |
| Wireless Security | WEP 128, WEP 152, WEP 64, WPA, WPA-PSK, WPA2, WPA2-PSK |
| USB Sharing Support | No |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE<br />2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE |
| Bluetooth | None |
| Antenna Placement | Internal |
| Supported Protocols | SNMPv1<br>SNMPv2c |
| Transmit Power | 21 dBm |
| Antenna Gain | 8 dBi |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| MU-MIMO Support | Yes |
| Warranty Length | Limited Lifetime Warranty |
