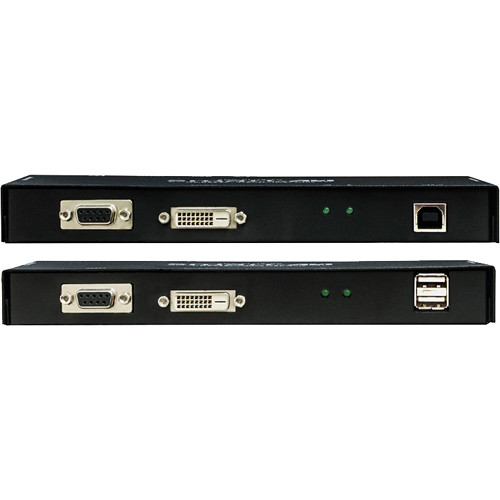

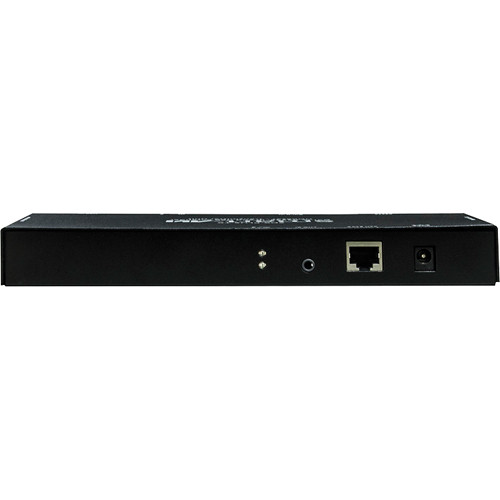

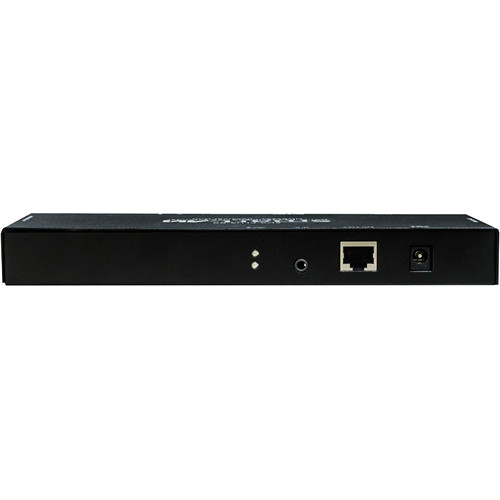

The Smart-AVI Super Range SDX-Plus DVI-D, USB Keyboard & Mouse, & RS232 IR Extender is capable of sending DVI-D signals up to 400’ over a single CAT5/5e/6 cable. HDBaseT technology requires a CAT6 shielded cable to go a short distance. This SDX-Plus Extender also allows for USB keyboard and mouse, RS232, and IR extension, giving you the ability to control your displays or devices remotely.
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 8 × 4 in |
| Format | Video: DVI-D Single Line |
| Maximum Pixel Clock | Video: 165 MHz |
| Interface | Video<br>Input (Transmitter): 1 x DVI-D 29-pin female<br>Output (Receiver): 1 x DVI-D 29-pin female<br><br>USB<br>Input (Transmitter): 1 x USB Type B (female)<br>Output (Receiver): 2 x USB Type A (female)<br><br>RS232<br>Input (Transmitter): DB9 (female)<br>Output (Receiver): DB9 (female)<br><br>IR<br>Input (Transmitter): 3.5 mm (female)<br>Output (Receiver): 3.5 mm (female) |
| Resolution | Video: Up to 1920 x 1200 @ 60 Hz |
| DDC | Video: 5 Vpp (TTL) |
| Input Equalization | Video: Automatic |
| Cable Length | Video<br>Input: Up to 20.0' (6.1 m)<br>Output: Up to 20.0' (6.1 m) |
| Signal Type | USB: OHCI/UHCI (USB 1.1) |
| Speed | RS232: @ 115 kb/s |
| Frequency Response | IR: 30 to 80 kHz |
| Power | External 100 to 240 VAC/5 VDC, 4 A @ 20 W |
| Temperature | Operating: 32 to 131°F (0 to 55°C)<br>Storage: -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Dimensions (W x H x D) | 5.13 x 1.00 x 3.63" (130.3 x 25.40 x 92.20 mm) |
