SilverStone High-Performance 850W 80 Plus Platinum Modular Power Supply – Strider Series
$127.00
Experience stable power delivery with the SilverStone Strider Series 850W 80 Plus Platinum Modular Power Supply, designed for high-performance systems.
In stock
Description
The Strider Series 850W 80 Plus Platinum Modular Power Supply from SilverStone offers high efficiency and stability for multi-GPU setups and peripherals, featuring a single +12 V rail design for compatibility with current generation hardware. Built with heavy-duty protection and a modular design for reduced cable clutter and improved airflow, it’s ideal for high-performance systems. The included 120mm fan ensures silent operation while providing effective heat dissipation. Upgrade your system with ease, utilizing the provided cables for future expansions and maintaining lower temperatures within the chassis.
Additional information
| Weight | 7.65 lbs |
|---|---|
| Dimensions | 12.6 × 8.4 × 5.2 in |

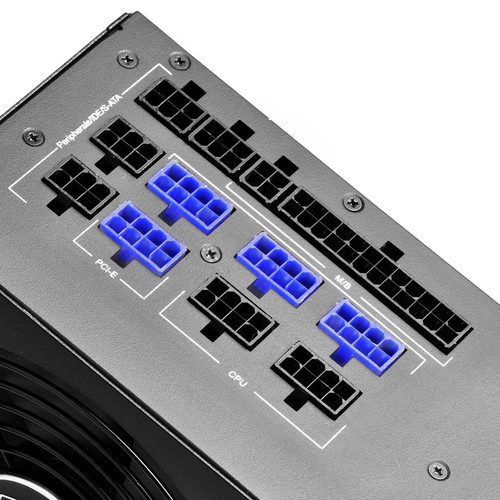

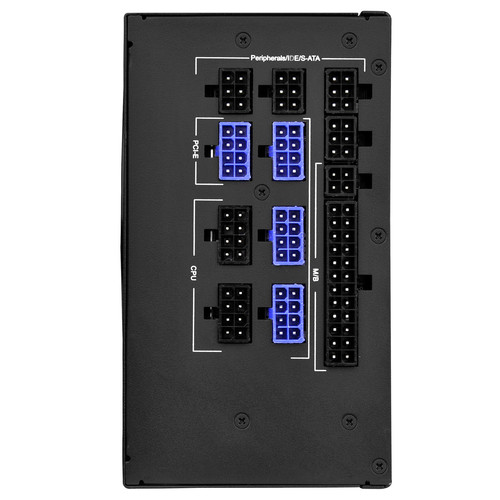

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />2 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />12 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4 |
| Form Factor | ATX |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Noise Level | 0 to 28 dBA |

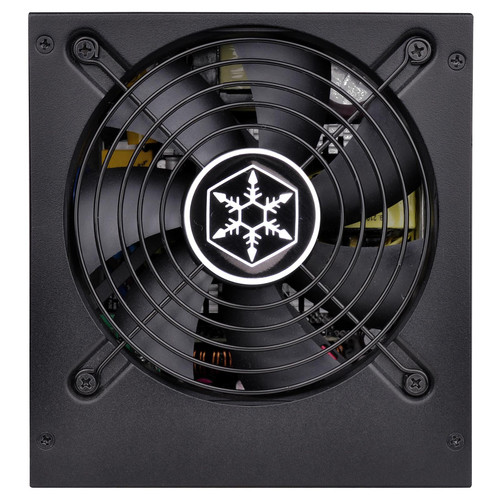

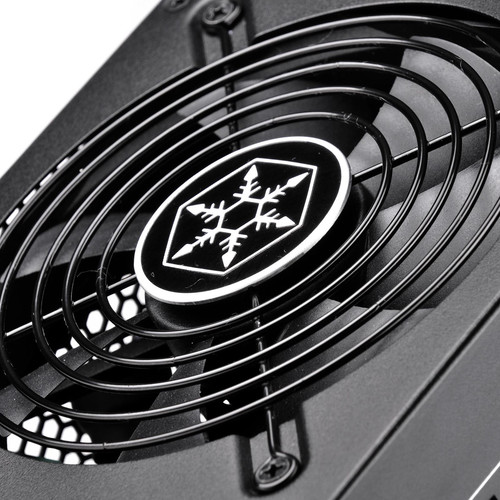

| Fan Size | 120 mm |
| Efficiency | 89 to 92% at 20 to 100% Load |
| Active Power Factor Correction | 90% |
| Efficiency Rating | 80 PLUS Platinum |
| Ripple and Noise | +3.3 V: 50 mV, +5 V: 50 mV, +12 V: 120 mV, -12 V: 120 mV, +5 Vsb: 50 mV |
| Voltage Regulation | +3.3 V: ± 3%, +5 V: ± 3%, +12 V: ± 3%, -12 V: ± 10%, +5 Vsb: ± 5% |
| Max Load for +5 Vsb | 3 A |
| Cable Design | Modular |
| Max Load for +5 V | 22 A |
| Max Load for +3.3 V | 22 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 850 W |
| Total Wattage | 850 W |
| EPS Connector Distances | 21.7" / 550 mm<br />29.5" / 750 mm |
| ATX Connector Distance | 21.7" / 550 mm |
| Floppy Connector Distances | 3.9" / 100 mm |
| Peripheral Connector Distances | 23.6" / 600 mm<br />29.5" / 750 mm<br />35.4" / 900 mm |
| SATA Connector Distances | 23.6" / 600 mm<br />29.5" / 750 mm<br />35.4" / 900 mm<br />41.3" / 1050 mm |
| PCIe Connector Distances | 21.7" / 550 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
