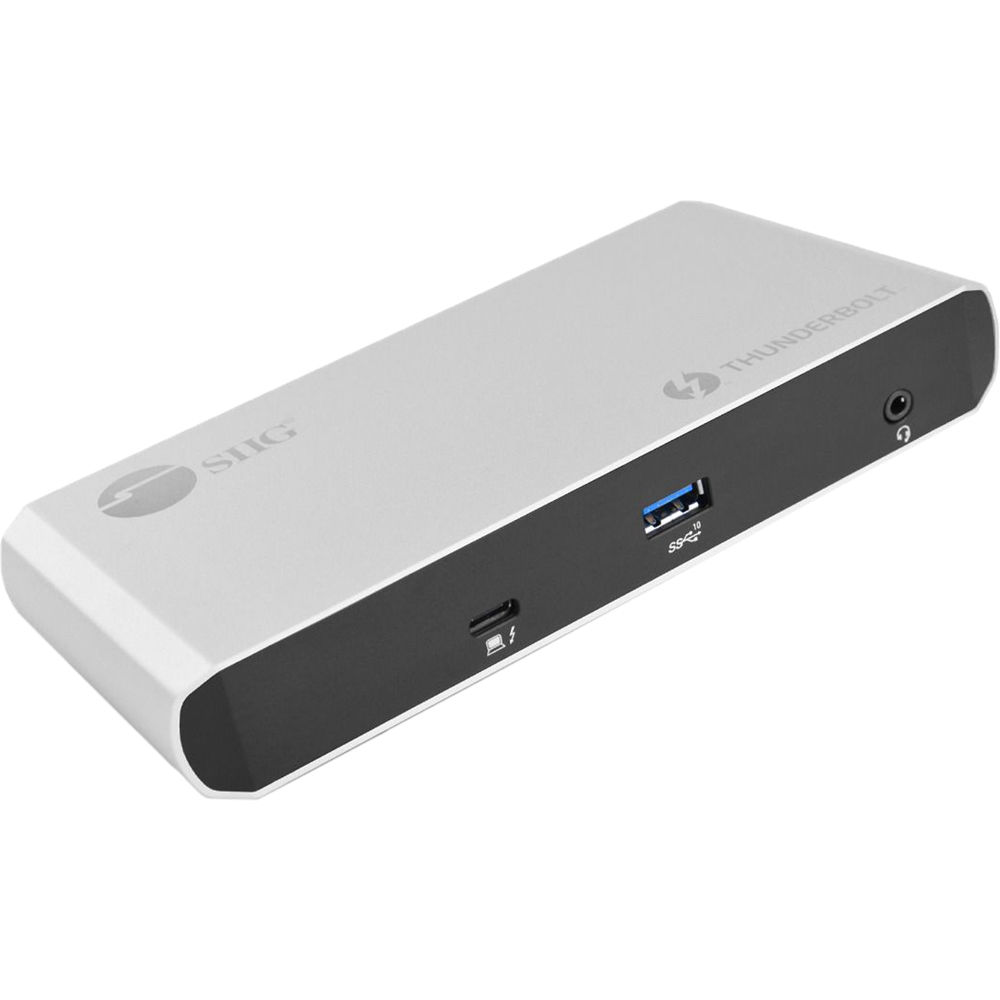

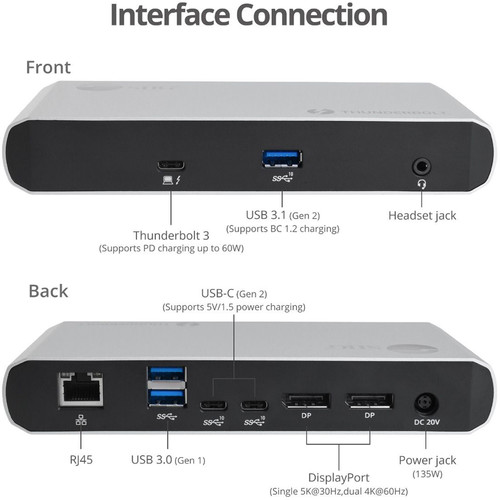

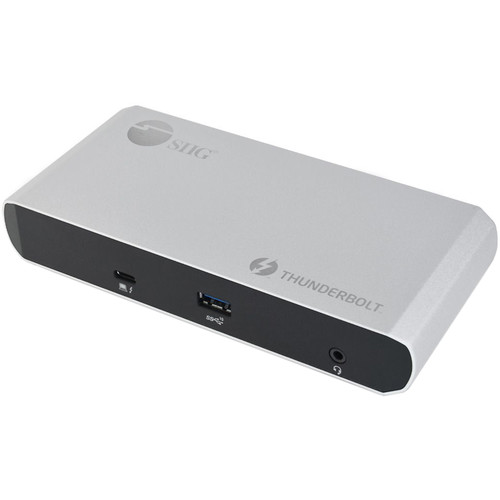

Expand the connectivity of your Thunderbolt 3 or USB Type-C / DP Alt mode Windows or Mac system using the Thunderbolt 3 Dual DP 4K Video Docking Station from SIIG. This dock has been built with two 10 Gb/s USB 3.1 Gen 2 Type-C ports that support charging up to 5V / 1.5A, one 10 Gb/s USB 3.1 Gen 2 Type-A port that supports the BC 1.2 charging spec up to 5V / 1.5A, two 5 Gb/s USB 3.1 Gen 1 Type-A ports that support charging up to 5V / 0.9A, two DisplayPort 1.2 outputs, one Gigiabit Ethernet port, and one 3.5mm headphone/mic combo jack. This dock connects to your host system’s Thunderbolt 3 or USB Type-C port using an included Thunderbolt 3 cable and an integrated 40 Gb/s Thunderbolt 3 port that also provides up to 60W of power for devices that include your laptop, notebook, tablet, smartphone, and more.

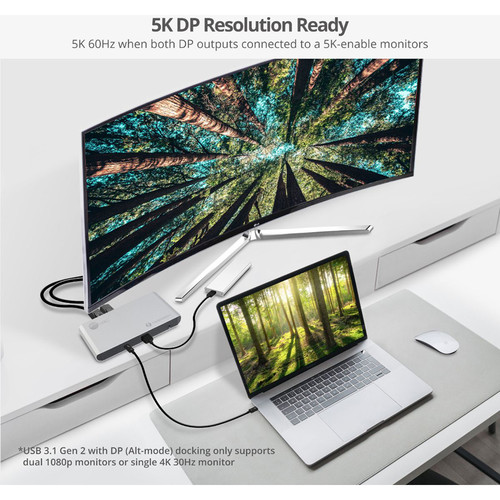

Thanks to the dual DisplayPort connections, this dock can drive up to two external displays at varying resolutions. When connected to a Thunderbolt 3 host, you’ll be able to use both DisplayPort outputs to power one 5K / 60 Hz display at resolutions up to 5120 x 3200. Or, the DisplayPort outputs can be used individually to run one or two 4K / 60 Hz (4096 x 2160) displays. When connected to a host that supports USB Type-C / DP Alt mode, you’ll be able to drive one 4K / 30 Hz (4096 x 2160) display or two 1080p / 60 Hz (1920 x 1080) displays.
Please note that if you connect this dock to a USB 3.1 Gen 1 host, all USB ports will operate at 5 Gb/s and the DisplayPort outputs will only support 1080p displays.
| Weight | 2.49 lbs |
|---|---|
| Dimensions | 9.2 × 5.7 × 3.4 in |
| USB | 2 x USB 3.1 / USB 3.2 Gen 2 Type-C (7.5 W)<br />1 x USB 3.1 / USB 3.2 Gen 2 Type-A (7.5 W)<br />2 x USB 3.1 / USB 3.2 Gen 1 Type-A (4.5 W) |
| UASP Support | No |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Operating Humidity | 5 to 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Total Current Output | 6.75 A |
| Maximum Power Consumption | 135 W (AC Adapter) |
| Power Port | Barrel Connector (Unspecified Diameter) (Input) |
| Power Source | AC Adapter |
| Operating System Support | Windows, macOS/OS X |
| Thunderbolt | None |
| Maximum Resolution Supported | 5120 x 3200 at 60 Hz (Single Display)<br />4096 x 2160 at 60 Hz (Dual Display)<br />4096 x 2160 at 60 Hz (Single Display)<br />4096 x 2160 at 30 Hz (Single Display)<br />1920 x 1080 at 60 Hz (Dual Display) |
| Number of Displays Supported | 2 |
| Chipset | Intel Titan Ridge |
| Interface Max Data Rate | 40 Gb/s |
| System Connection | 1 x Thunderbolt 3 Female (via Included Detachable Cable) |
| Memory Card Slots | None |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo |
| Display | 2 x DisplayPort 1.2 |
| FireWire | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Lock Slot | No |
1 review for SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with Power Delivery
Only logged in customers who have purchased this product may leave a review.
Related products
Docking Stations
Docking Stations
Docking Stations
Docking Stations
Docking Stations
$213.85
Docking Stations
Docking Stations
Docking Stations
$122.85
Hailee Berge (verified owner) –
Bought it for for my new m1 pro macbook pro. It Works amazing! Dual monitors, audio, all my hard drives and charging with 1 thunderbolt cord in 1 port. When I’m home editing my desk is clean. When I have to edit on the go I only have to remove 1 cable! Epic!
