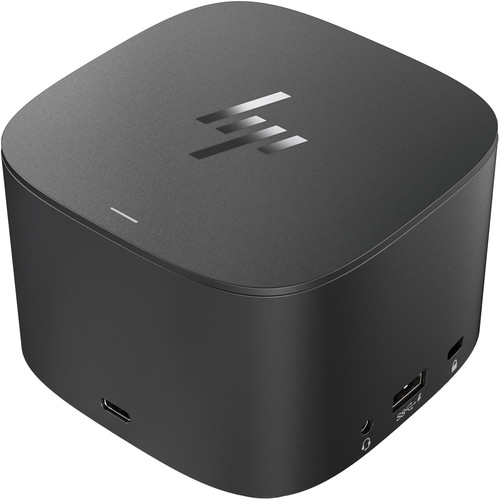

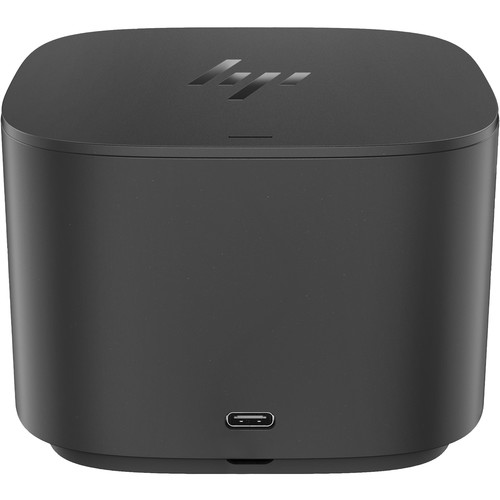

HP Thunderbolt Dock G2 – Universal USB-C Docking Station with Dual 4K Display Support
$174.85
Expand your HP or non-HP Thunderbolt/USB Type-C notebook’s connectivity with this versatile dock, supporting up to four 4K displays, Gigabit Ethernet, and USB Type-C charging up to 100W.
In stock
Description
The HP Thunderbolt Dock G2 is a powerful docking station designed for HP and non-HP Thunderbolt and USB Type-C notebooks, offering extensive connectivity options including Thunderbolt 3, USB Type-C, USB 3.0 Type-A, DisplayPort, VGA, Gigabit Ethernet, and 3.5mm audio. With support for up to four simultaneous displays at resolutions up to 5120 x 2880 at 60 Hz, this dock enhances your productivity. It features two USB Type-C ports supporting data and power up to 15W, one Thunderbolt 3 port with bi-directional transfer speeds of up to 40 Gb/s, and three USB 3.0 Type-A ports. The dock also supports USB Type-C notebook charging up to 100W and is compatible with systems running Windows 10 and 7, macOS, and Google Chrome. Powered by an included 120W AC adapter, it provides Power Delivery 3.0 with various output options and is backed by a limited 1-year warranty.
Additional information
| Weight | 3.67 lbs |
|---|---|
| Dimensions | 9.6 × 6.7 × 5.8 in |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Type-C<br />3 x USB 3.1 / USB 3.2 Gen 1 Type-A |
| Operating System Support | ChromeOS, Windows, macOS/OS X |
| LED Indicator | Power |
| Operating Altitude | -50 to 10, 000' / -15.24 to 3048 m |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| DC Input Power | 19.7 VDC at 6.1 A |
| Maximum Power Consumption | 120 W (AC Adapter) |
| Power Port | Barrel Connector (Unspecified Diameter) |
| Power Source | AC Adapter |
| UASP Support | No |
| Compatibility | HP Elite x2 1012 G1<br />HP Elite x2 1012 G2<br />HP Pro x2 612 G2<br />HP EliteBook Folio G1<br />HP EliteBook Folio x360 1020 G2<br />HP EliteBook x360 1030 G2<br />HP EliteBook 1040 G4<br />HP EliteBook 700 G5<br />HP EliteBook 800 G5<br />HP ProBook 600 G4<br />HP ProBook 400 G5<br />HP ZBook 14u G5<br />HP ZBook 15u G5 |
| Thunderbolt | 1 x Thunderbolt 3 |
| Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display)<br />4096 x 2160 at 60 Hz (Dual Display)<br />3840 x 2160 at 60 Hz (Dual Display)<br />2560 x 1600 at 60 Hz<br />2560 x 1440 at 60 Hz<br />1920 x 1200 at 60 Hz (Triple Display) |
| Number of Displays Supported | 4 |
| Interface Max Data Rate | 40 Gb/s |
| Connection Type | Detachable Cable |
| System Connection | 1 x Thunderbolt 3 Male |
| Memory Card Slots | None |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo |
| Display | 2 x DisplayPort<br />1 x VGA |
| FireWire | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Lock Slot | Yes |
