Description

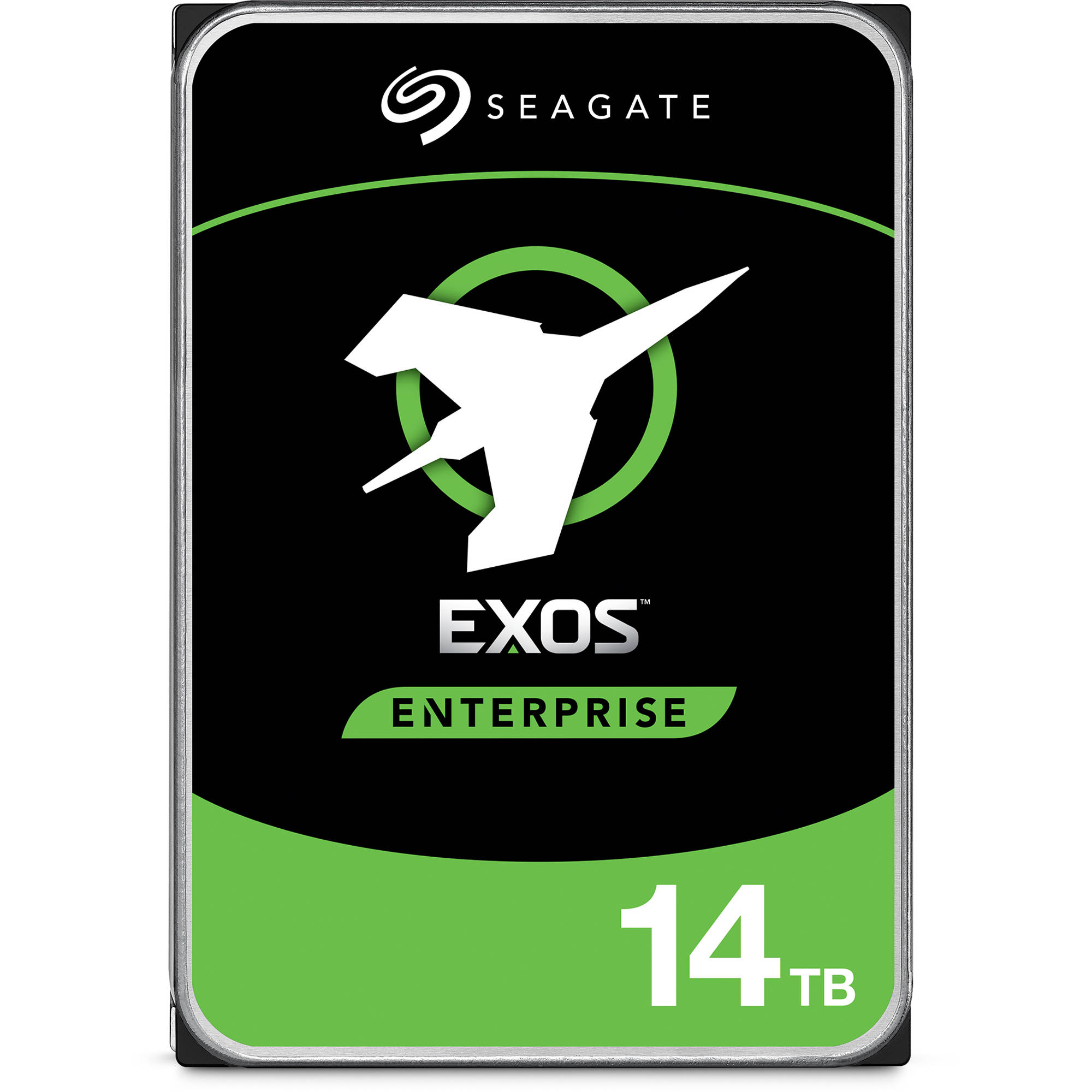

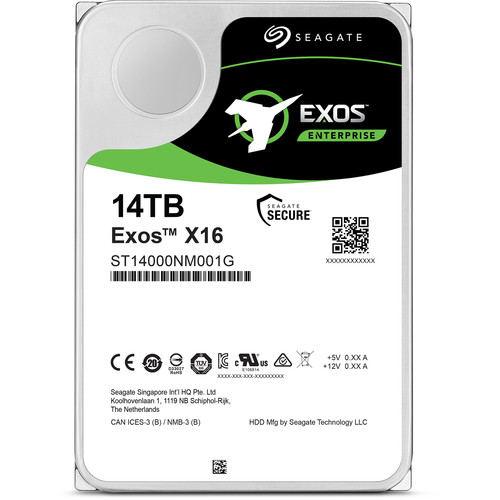

Seagate 14TB Exos X16: High-Capacity Storage for Demanding Applications
The 14TB Exos X16 7200 rpm SATA III 3.5″ Internal HDD from Seagate is engineered to deliver high performance and reliability for data-intensive applications. Ideal for engineering workstations, network servers, mainframes, and supercomputers, this drive is designed to operate continuously in demanding environments.
Key Features:
- High Capacity: 14TB storage capacity for large data sets and applications
- Fast Performance: 7200 rpm rotational speed for quick data access and transfer
- SATA III Interface: 6 Gb/s interface for data transfer rates of up to 261 MB/s
- Reliability: 2.5 million hours MTBF rating for high reliability and low failure rate
- Optimal Performance: Built-in digital sensors to monitor and ensure optimal performance
This Seagate Exos X16 HDD is designed to meet the needs of data centers and enterprises requiring high-capacity, high-performance storage solutions. With its robust design and advanced features, it provides a reliable storage solution for critical applications and data.
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
| Storage Capacity | 14 TB |
| Non-Recoverable Read Errors per Bits Read | 1 in 1015 |
| Dimensions (W x H x D) | 4.01 x 1.03 x 5.79" / 101.85 x 26.11 x 147 mm |
| Storage Altitude | -1, 000 to 40, 000' / -304.8 to 12, 192 m |
| Operating Altitude | -1, 000 to 10, 000' / -304.8 to 3048 m |
| Storage Humidity | 5 to 95% |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 41 to 140°F / 5 to 60°C |
| Storage Vibration | 2.27 G / 2 to 500 Hz |
| Operating Vibration | 0.7 G / 5 to 500 Hz |
| Storage Shock | 200 G / 2.0 ms |
| Operating Shock | 50 G / 2.0 ms |
| Current | 2.6 A at 12 VDC |
| Supported Voltage | 5 VDC, 12 VDC |
| Power Draw | 5.0 W (Idle)<br />10.00 W (Active)<br />6.3 W (Active) |
| Mean Time Between Failures (MTBF) | 2.5 Million Hours |
| Cache Memory | 256 MB |
| Noise Level | 3.2 dB (Active)<br />2.8 dB (Idle) |
| Interface | SATA III (6 Gb/s) |
| Write Speed | Random: 440 IOPS 4 KB Files |
| Read Speed | Maximum: 261 MB/s<br />Random: 170 IOPS 4 KB Files<br />Sequential: 249 MB/s |
| Latency | 4.1 ms |
| Drive Type | HDD |
| Form Factor | 3.5" |
| Spindle Speed (RPM) | 7200 RPM |
| Load/Unload Cycles | 600, 000 |
| Heads | 16 |
| Platters | 9 |
| Areal Density | 1028 Gb/in² |
| Disk Sector Format | 512e |
| Annualized Failure Rate (AFR) | 0.35 % |
| Endurance (Total Bytes Written) | 550 TB |
| Warranty Length | Limited 5-Year Warranty |
