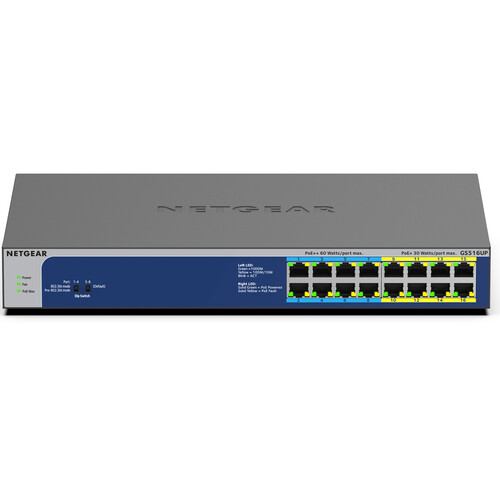

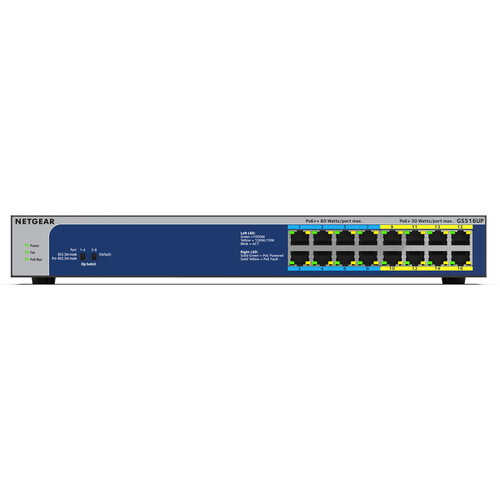

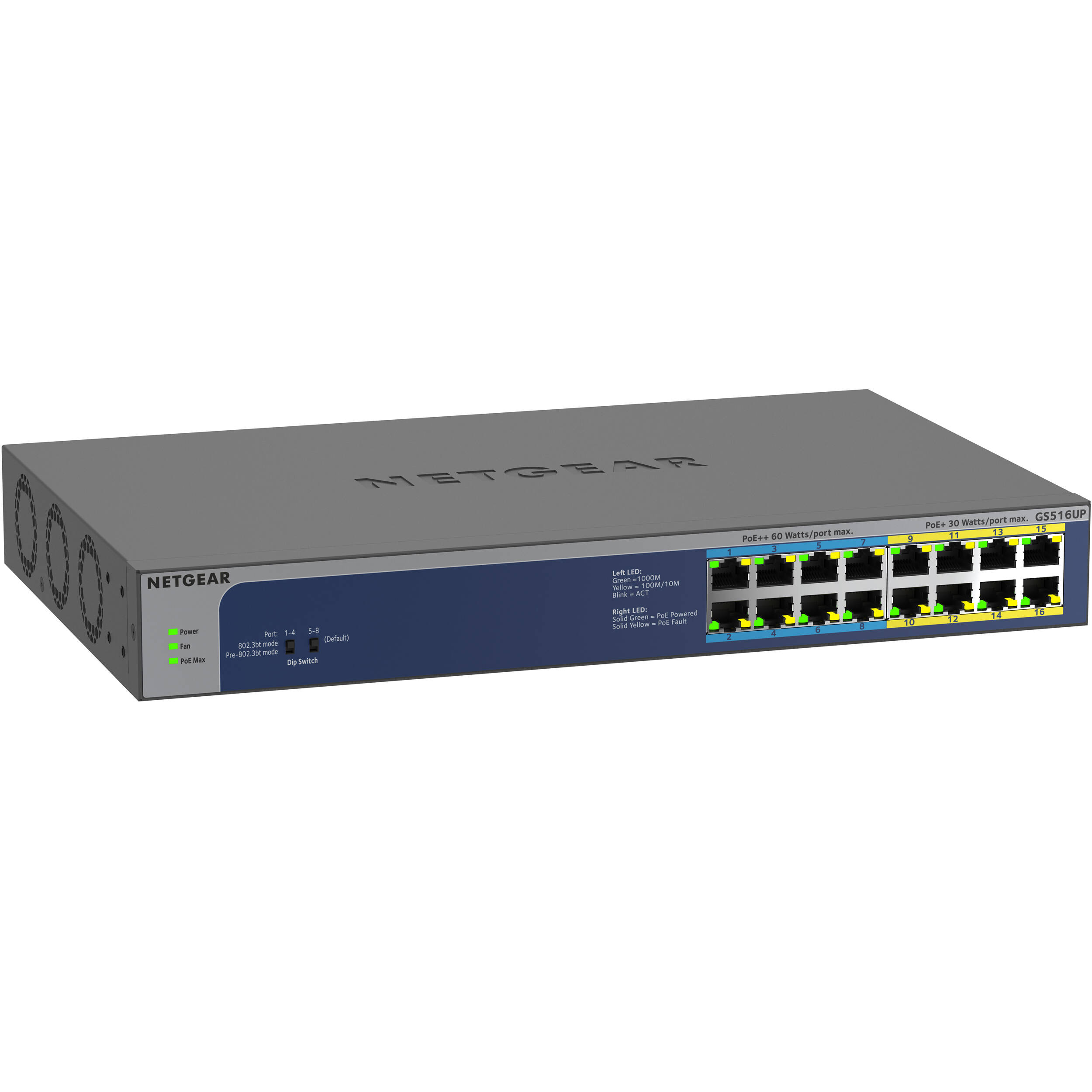

Expand your network with the Netgear GS516UP 16-Port Gigabit PoE++ Compliant Unmanaged Switch, which supports demanding Hi-PoE devices, such as advanced IP security cameras, in addition to VoIP phones and access points. This 16-port Gigabit Ethernet unmanaged switch includes eight 30W PoE+ and eight 60W PoE++ compliant ports for a total power budget of 380W. Netgear’s power technologies help to ensure that the exact amount of power necessary is delivered to each connected PoE device. The GS516UP also has a 32 Gb/s switching capacity and a 1.448 Mpps forwarding rate to ensure fast, reliable performance. You can mount this switch onto a desktop or use the included kit for rackmount installations. Its plug-and-play design allows you to integrate the switch into your network without the need for any additional hardware or software.
| Weight | 7.96 lbs |
|---|---|
| Dimensions | 17.8 × 10.6 × 3.6 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+<br />8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 3) |
| PoE per Port | 30 to 60 W |
| Indicator Lights | Link/Activity/Speed, PoE |
| Material of Construction | Metal |
| Mean Time Between Failures (MTBF) | 1, 213, 791 Hours |

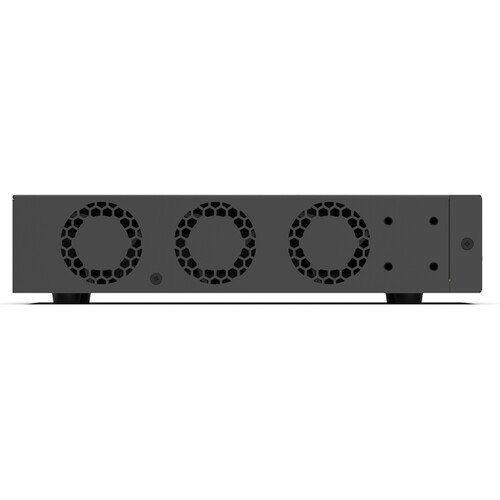

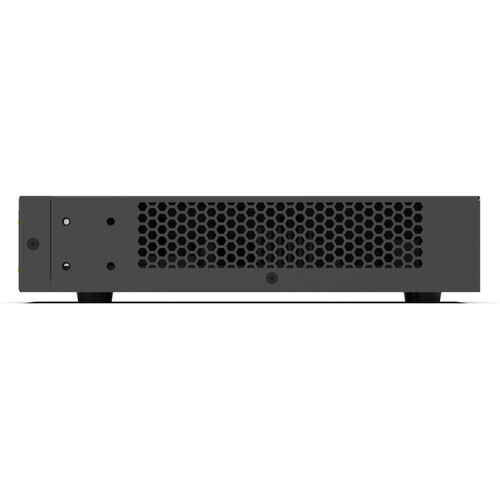

| Cooling System | Fan/Passive Combo |
| Operating Altitude | 9842' / 3000 m |
| Storage Humidity | 10 to 95% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 90% |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| PoE Power Budget | 380 W |
| Supported Protocols | Auto-MDIX/MDI |
| AC Input Power | VAC50 / 60 Hz |
| Power Draw | 456.8 W (Max)<br />14.9 W (Standby) |
| Packet Buffer | 192 kB |
| Switching Bandwidth | 32 Gb/s (Non-Blocking) |
| Forwarding Rate | 1.44 Mpps |
| Latency | 12 µs |
| Supported IEEE Standards | 802.1p, 802.2az, 802.3, 802.3ab, 802.3at, 802.3bt, 802.3i, 802.3u |
| MAC Address Table Size | 8K |
| Jumbo Frames Support | 9216 Bytes |
| Queuing | Weighted Round Robin (WRR) |
| Rack Form Factor | 1 RU |
