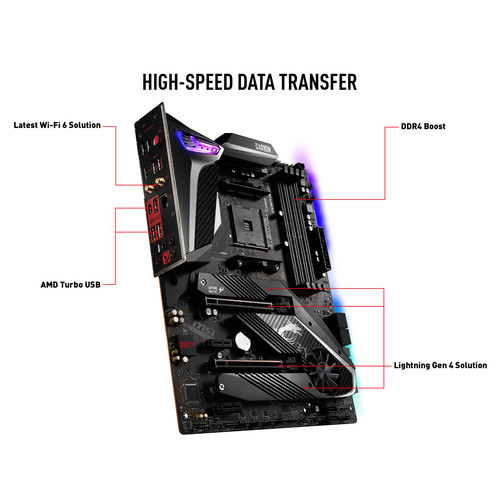

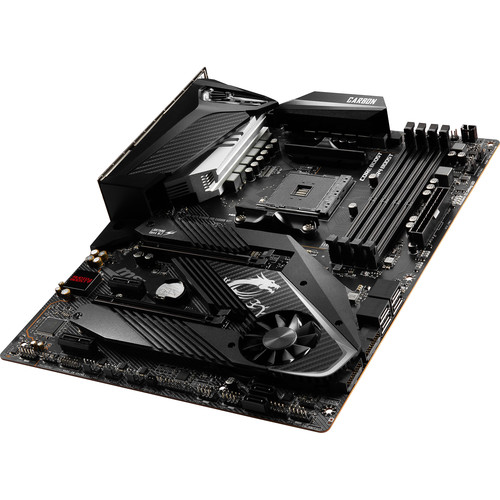

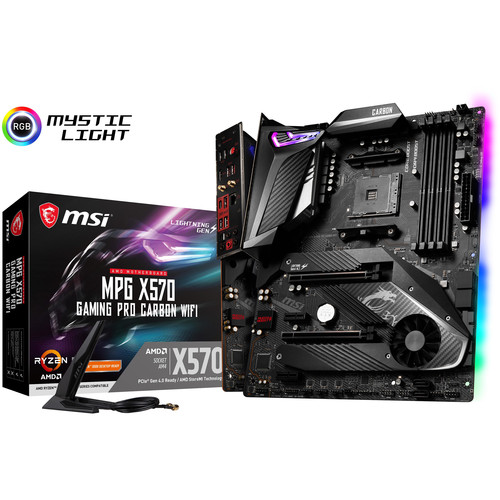

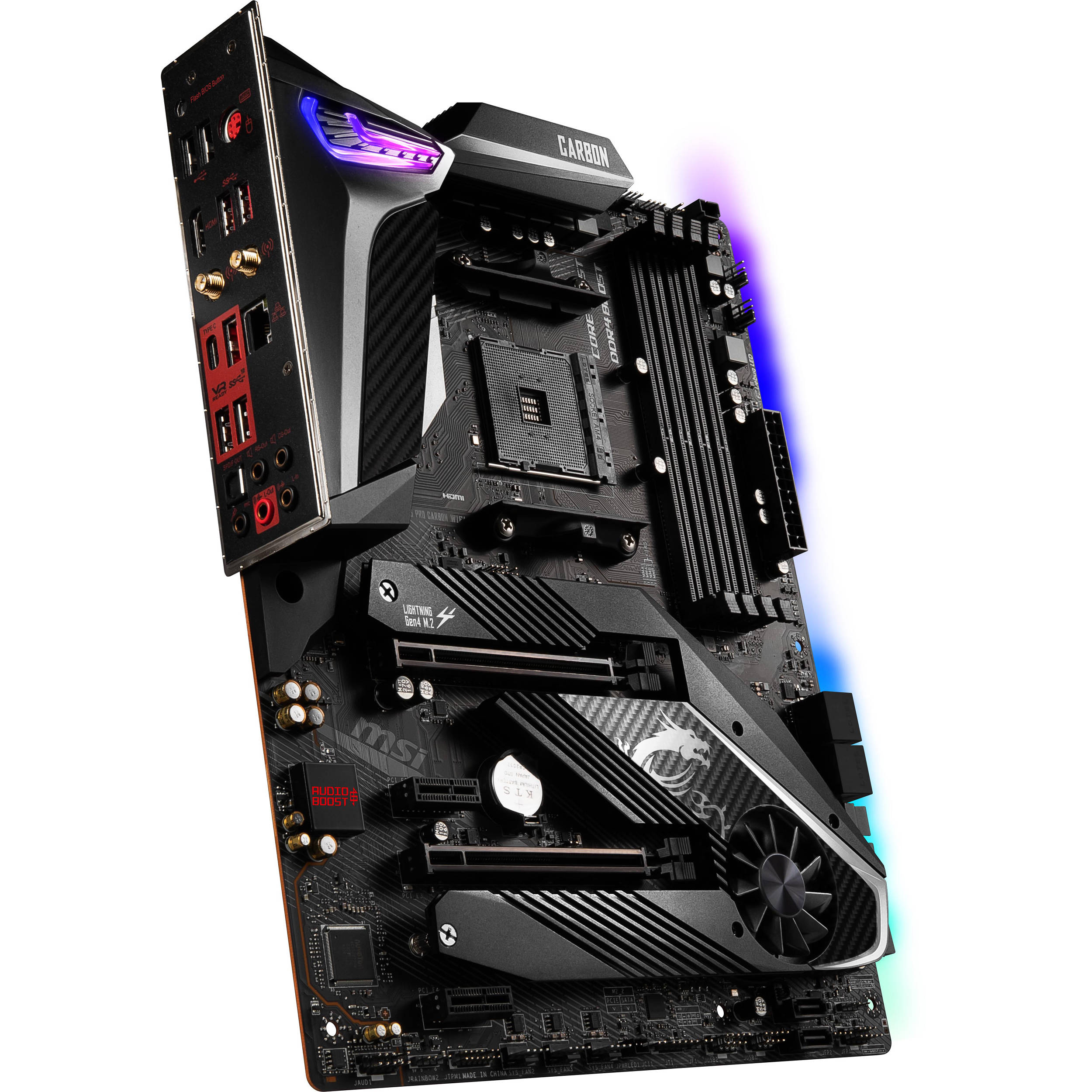

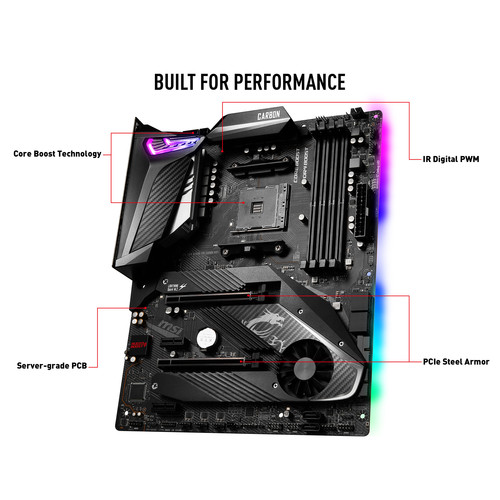

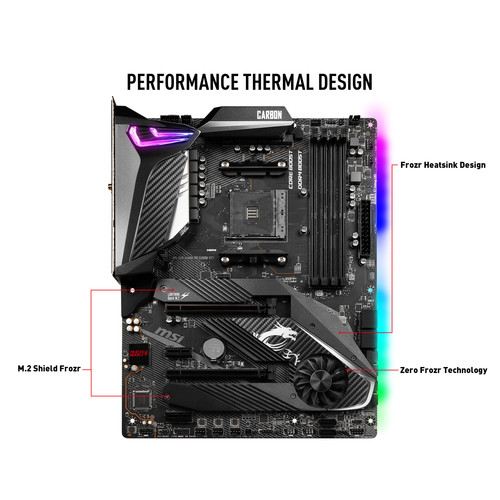

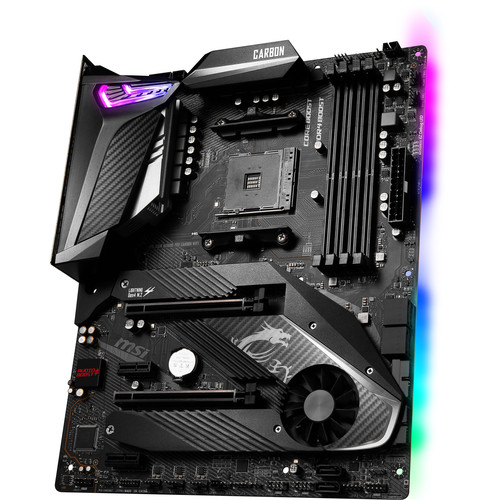

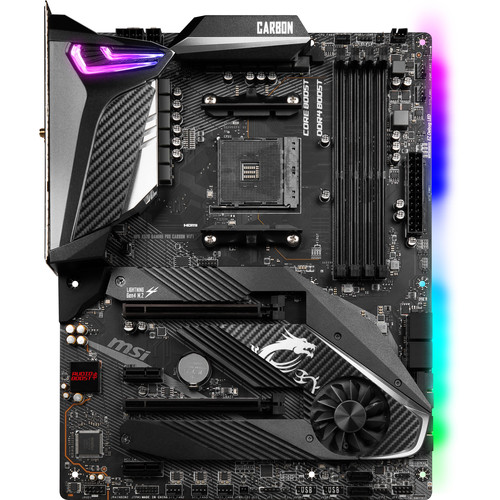

The MSI MPG X570 GAMING PRO CARBON WIFI AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4400 MHz. For storage, it’s equipped with six SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards, one of which runs x4 mode, and two PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet, Intel AX200 802.11ax Wi-Fi, Bluetooth 5.0, and Realtek ALC1220 7.1-channel HD audio.
| Weight | 4.21 lbs |
|---|---|
| Dimensions | 13.6 × 10.8 × 3.5 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.0 |
| Audio Codec | Realtek ALC1220 (7.1-Channel) |
| I/O Connection Headers | AAFP |
| Diagnostics | Clear CMOS |
| LED Header | 3 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Memory Slots | 4 x 288-Pin |

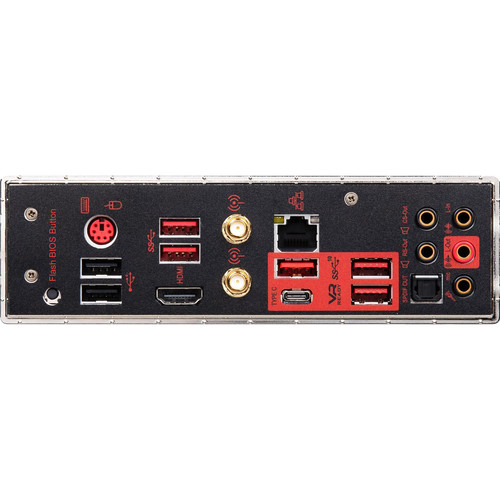

| Buttons | BIOS Flashback |

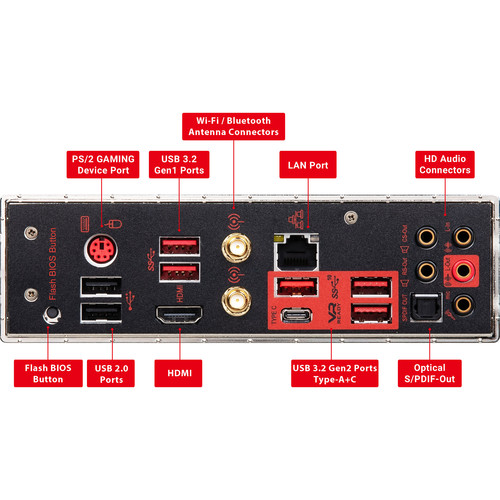

| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Intel I211AT Gigabit |
| Display | 1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
8 reviews for MSI MPG X570 GAMING PRO CARBON WIFI AM4 ATX Motherboard
Only logged in customers who have purchased this product may leave a review.
Related products
Desktop Components
Desktop Components
Desktop Components
Desktop Components
Desktop Components
$36.40
Desktop Components
$71.49
Desktop Components
Desktop Components
Logan Gleichner (verified owner) –
Couldn’t be happier. MSI manual is very good and everything is easily found and labeled on the motherboard. The quality speaks for itself.
Mitchel Christiansen (verified owner) –
works as described
Stanton Stehr (verified owner) –
Handles a very significant memory overclock and PBO curve changes on my 5800x with ease. The built in NVMe cooler is a nice touch for NVMe RAID0 configurations. Everything stays nice, cool and stable. The MSI RGB software leaves a lot to be desired, but that’s probably my only quip with this board.
Mathilde Mann (verified owner) –
Came Dead On Arrival, going to RMA
Stanton Leuschke (verified owner) –
Have been looking for this mobo for quite some time now. My sons first build! Took a while, but B&H came through. Out of stock EVERYWHERE….. Put my order in and B&H did the rest. Hassle free, just sat back and waited. They emailed me weekly until BAM ‘your mobo is available’. Less than a week later, son is building his 1st PC. Thanks
Prince Stamm (verified owner) –
I purchased this motherboard for my recent PC build and it was great. Everything was easy to install and it was great to take advantage of the PCI 4.0 speed as well as being able to use an NVMe internal SSD. The WiFi speed in this motherboard is also great and the Wifi 6 is part of the reason I decided to buy it. Overall, great product.
Carroll Tromp (verified owner) –
5 STAR this guy work great!!
Christine Haag (verified owner) –
TL;DR – Nearly 3 months trying to build a system and all issues point back to this motherboard every time. DO NOT BUY MSI EVER!!! Since the beginning of July when I first ordered this motherboard, I have been trying to build my system. Within 3 days of the first startup, the motherboard RGB fails, followed shortly by the audio beginning sounding like a digital dub from some club. I contact MSI and arrange for an RMA. Two weeks later I receive the RMA replacement (yeah, I know, I should have tried to swap with B&H first, my fault) only to find that it has a faulty M.2_1 slot forcing a perpetual boot and I can’t make it past the BIOS, enter RMA #2. Two weeks after that I ship it, the second RMA replacement arrives at my home (this is motherboard #3). I assemble the system, power it up and immediately the EZ Debug LED stops on CPU. I call tech support and try to get some help only to have the tech helping me try telling me that my problem is the RAM because it is not on the QVL. They worked just fine with the first 2 motherboards, why should it be any different now? After some very heated back and forth, removing various components, and putting them back in different configurations, we come to an agreement and run a BIOS update via the “Flash BIOS Button”. After getting the same result as earlier and I concede that it could be a bad CPU (Ryzen 7 3700) and RMA it to AMD. I finally get my CPU back today (another 2 weeks), get it and the heatsink installed, along with all the wiring set up and I get the exact same result, the EZ Debug LED stops on CPU. Now I have to eat the cost of this motherboard because I am no longer willing to deal with MSI and I failed to contact B&H first to resolve the issue with the first motherboard. My fun pandemic PC project has become a nightmare with MSI at the center of it all. And to clarify, I have been building systems for 20+ years and have never had an issue so severe as this ever! I will NEVER recommend an MSI motherboard to anybody under any circumstances ever.
