MSI MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard
$65.09
Free U.S. Standard Shipping
30-Day Money Back
100% Secure Payments
Top-notch support
In stock
Description

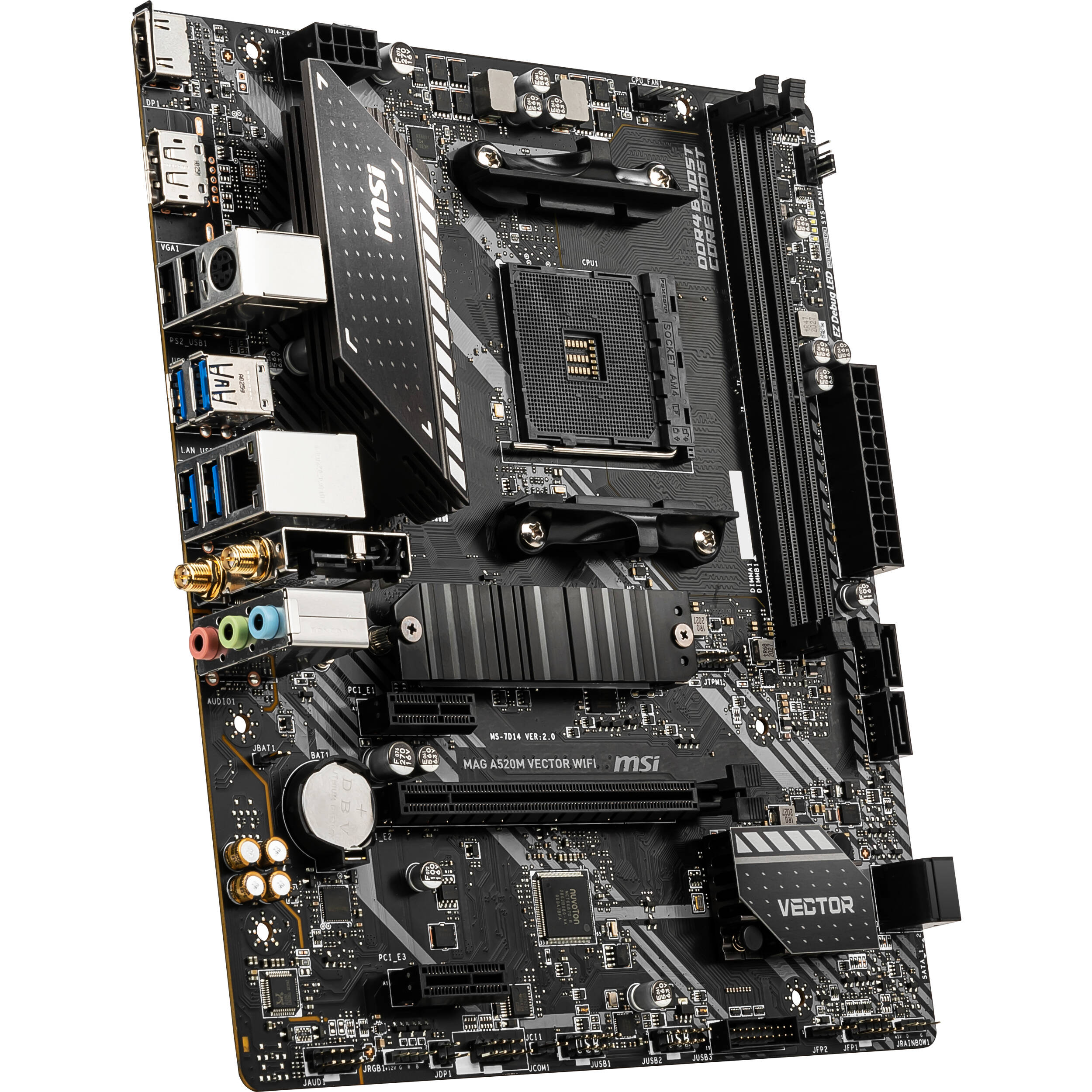

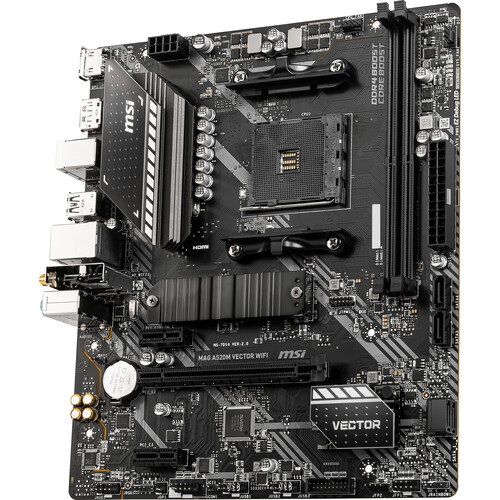

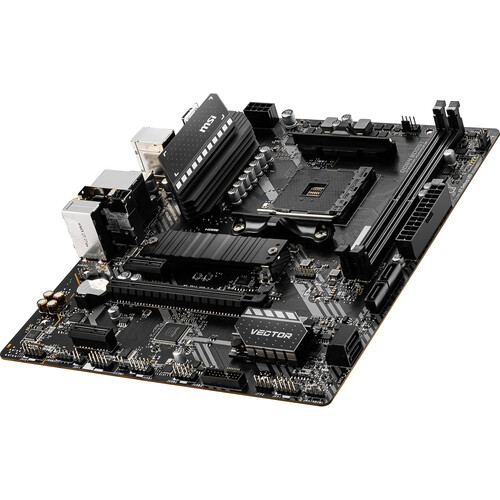

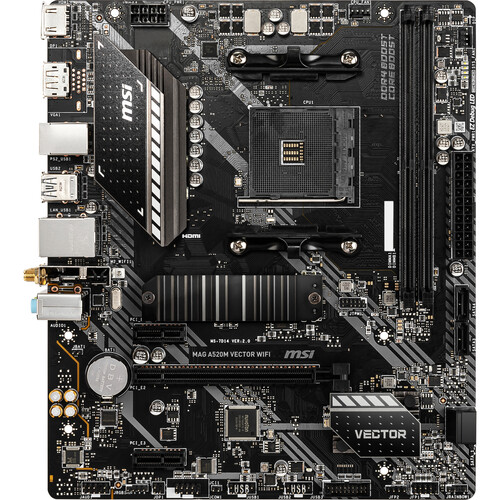

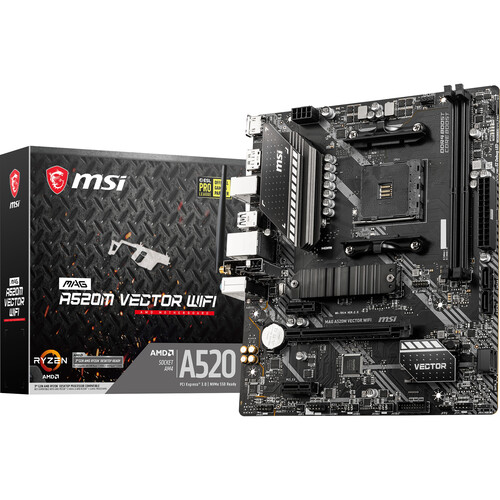

Sink your competition with the MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard from MSI. Featuring the AMD A520 chipset, this gaming motherboard is compatible with processors using the AM4 socket. Two dual-channel RAM slots support a total memory capacity of 64GB and speeds up to 4600 MHz when overclocking. Storage drives can be installed using four SATA III interfaces or an M.2 slot, while a PCIe 3.0 x16 and two PCIe 3.0 x1 slots provide room for various adapter cards.

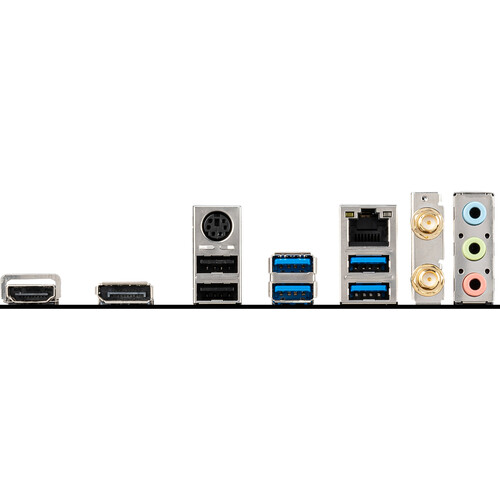

The rear I/O panel features four USB 3.2 Gen 1 and two USB 2.0 Type-A ports. A legacy mouse or keyboard can be connected to the PS/2 port, while displays can be hooked up using the DisplayPort or HDMI outputs. An RJ45 port is also present, supporting Gigabit Ethernet. Two Wi-Fi antenna connectors facilitate Wi-Fi 5 connectivity, while the preinstalled wireless controller further facilitates Bluetooth 4.2. The rear panel also sports three 3.5mm audio jacks. Relying on Realtek audio codecs, this motherboard supports 7.1 Surround Sound. The MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard is compatible with Windows 10 operating systems.
Additional information
| Weight | 2.42 lbs |
|---|---|
| Dimensions | 11.1 × 10.7 × 2.7 in |
| Chipset | AMD A520 |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Supported Operating Systems | Windows 10 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Bluetooth | 4.2 |
| Audio Codec | Realtek ALC892/ALC897 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 3.0 x16<br />2 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz |
| Memory Slots | 2 x 288-Pin |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
