Description
Unlock Peak Performance with the ASUS PRIME X570-PRO Motherboard
The ASUS PRIME X570-PRO AM4 ATX Motherboard is engineered for enthusiasts and gamers seeking top-tier performance. Built on the robust AMD X570 chipset, this motherboard supports both second- and third-generation AMD Ryzen processors with an AM4 socket, ensuring compatibility with the latest CPUs.
Key Features:

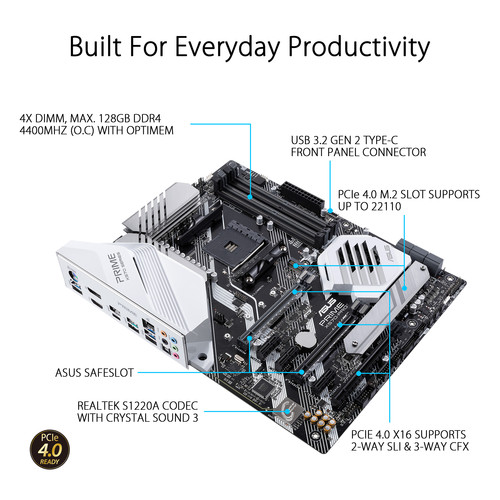

- Memory: Four DIMM slots support up to 128GB of dual-channel DDR4 RAM, overclockable to 4400 MHz for exceptional memory performance.
- Storage: Equipped with six SATA III ports and dual M.2 slots for high-speed NVMe storage solutions.
- Expansion: Three PCIe 4.0 x16 slots for graphics cards, configurable to x8/x8/x4 when all slots are in use, plus three PCIe 4.0 x1 slots for additional peripherals.
- Networking & Audio: Features Intel I211-AT Gigabit LAN for reliable connectivity and Realtek S1200A 8-channel HD audio for immersive sound.
This motherboard is designed to deliver unparalleled performance, flexibility, and future-proofing with PCIe 4.0 support. Whether you’re gaming, creating content, or pushing the limits of overclocking, the ASUS PRIME X570-PRO provides a solid foundation for your high-performance system.
Additional information
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 13.5 × 10.75 × 2.75 in |
| Chipset | AMD X570 |
| Expansion Slots | 2 x PCIe 4.0 x16<br />1 x PCIe 4.0 x16 (x4 mode)<br />3 x PCIe 4.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek S1220A (8-Channel) |
| I/O Connection Headers | AAFP |
| ROM | 256 Mb |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS, Power |

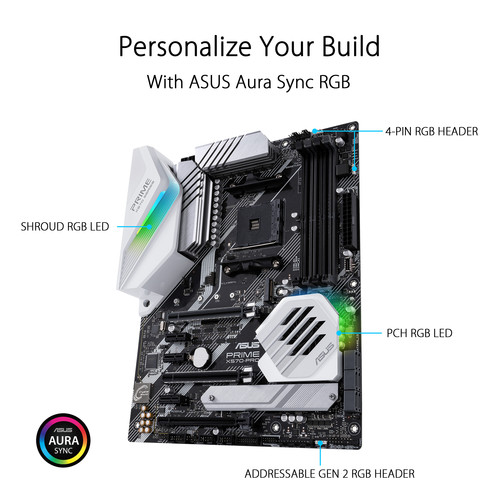

| LED Header | 3 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 2 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />2 x 4-Pin Assistant<br />3 x 4-Pin System<br />1 x Thermal Sensor |
| Multi-GPU Support | 2-Way NVIDIA SLI<br />3-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| SATA | 6 x SATA III |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Intel I211-AT Gigabit |

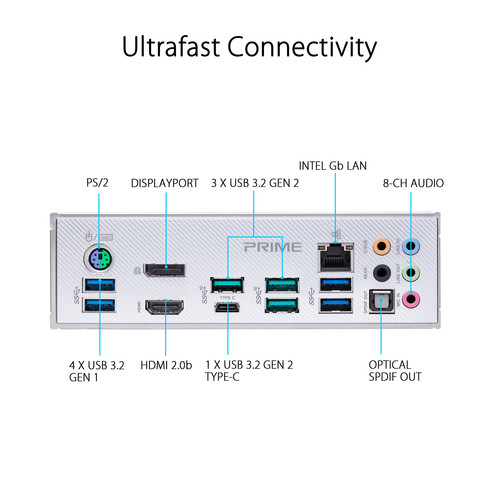

| Display | 1 x DisplayPort 1.2<br />1 x HDMI 2.0b |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
| Form Factor | ATX |
