Description

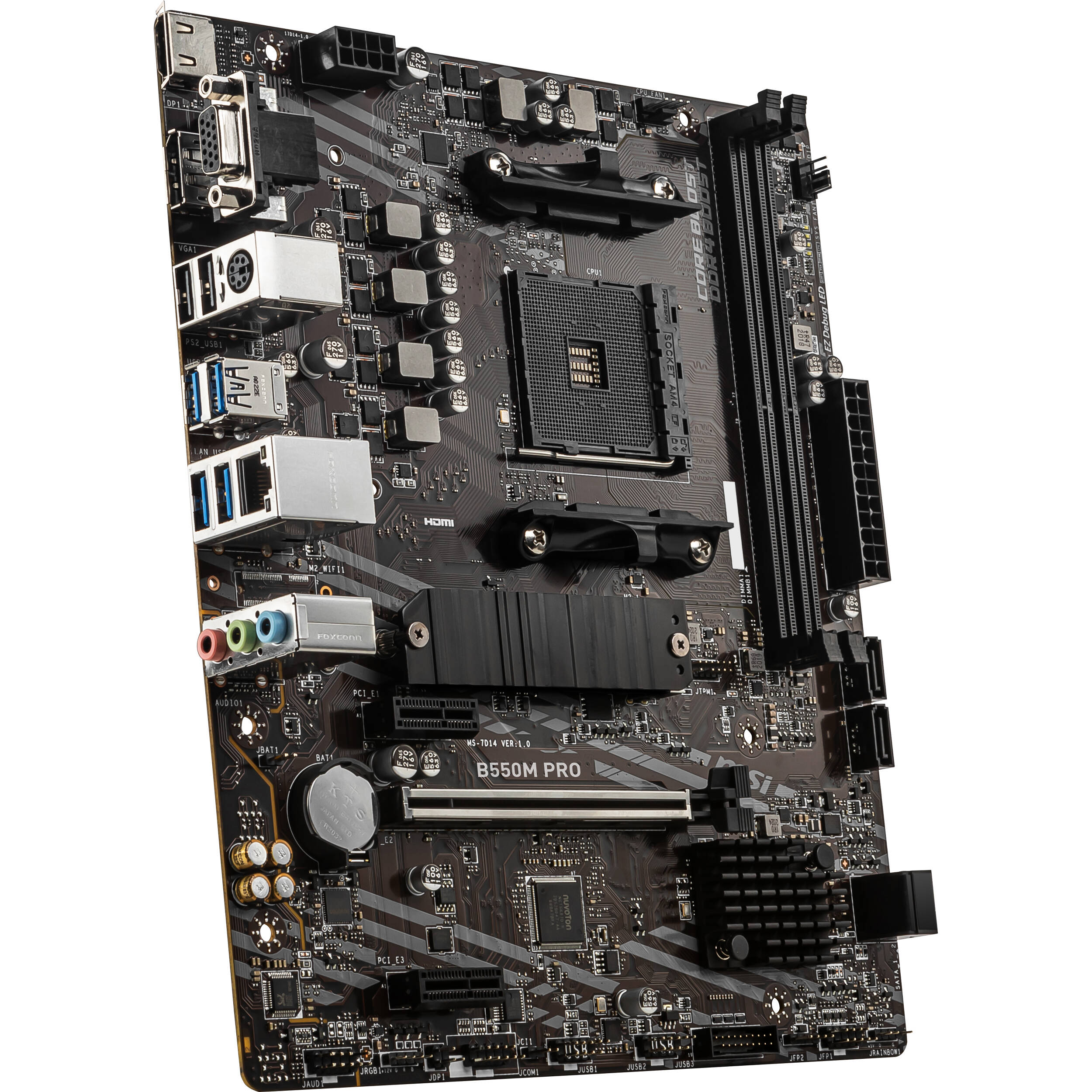

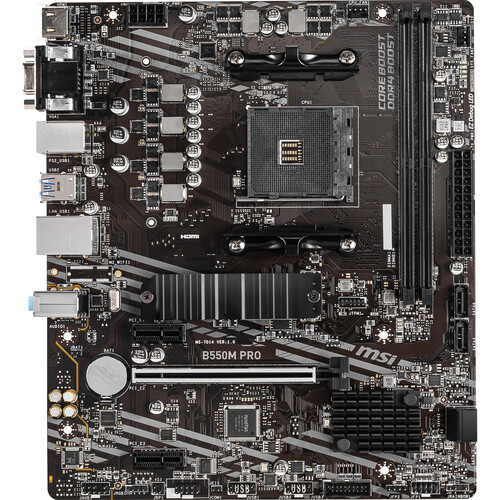

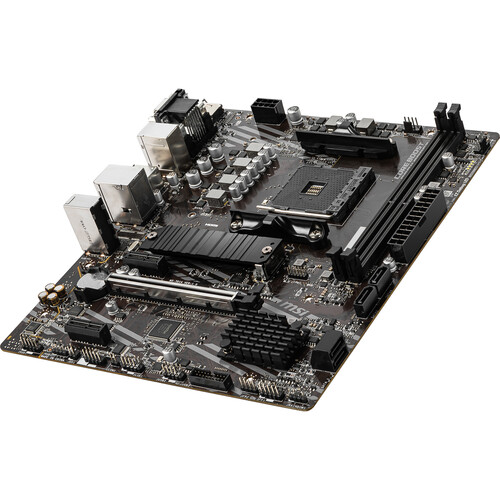

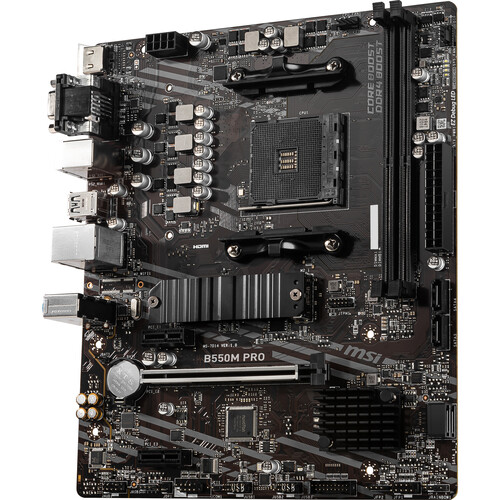

MSI B550M PRO Mini-ATX Motherboard – Optimize Your Computing Experience
Elevate your productivity and entertainment with the MSI B550M PRO Mini-ATX Motherboard, engineered to streamline your workflow and enhance overall system performance. This motherboard is designed for DIY enthusiasts and professionals looking to upgrade or build a new system with cutting-edge technology.
Key Features:
- AMD B550 Chipset: Supports AMD Ryzen 5000, 3000, and 4000 G-series processors via the AM4 socket, ensuring powerful processing capabilities.
- DDR4 Memory Support: Dual-channel memory slots accommodate DDR4 memory modules with speeds up to 4600 MHz, optimizing memory performance.
- High-Speed Storage: Four SATA III ports and one M.2 port provide ample storage options for faster data access and program loading.
- Expansion Capabilities: One PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots allow for the installation of graphics cards, sound cards, and networking cards, enhancing system versatility.
- High-Definition Audio: 7.1-channel high-definition audio delivers an immersive entertainment experience.
- Wired Connectivity: An RJ45 port ensures stable and fast wired internet connectivity.
The MSI B550M PRO Mini-ATX Motherboard is designed to be compatible with Windows 10 (64-bit) operating systems, making it an ideal choice for users seeking a reliable and high-performance computing platform. Upgrade your system with this robust motherboard and enjoy enhanced productivity and entertainment capabilities.
Additional information
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 10.2 × 10.2 × 2.3 in |
| Chipset | AMD B550 |
| Optane Memory Support | No |
| Audio Codec | Realtek ALC892/ALC897 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 4.0 x16<br />2 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 (SATA) |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4) |
| SATA | 4 x SATA III |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz |
| Memory Slots | 2 x 288-Pin |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |

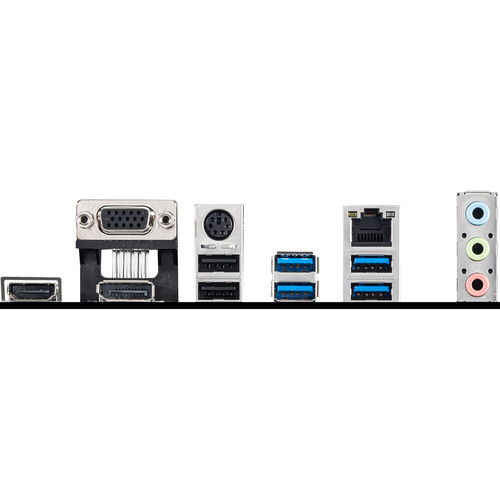

| Display | 1 x DisplayPort <br />1 x VGA <br />1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
