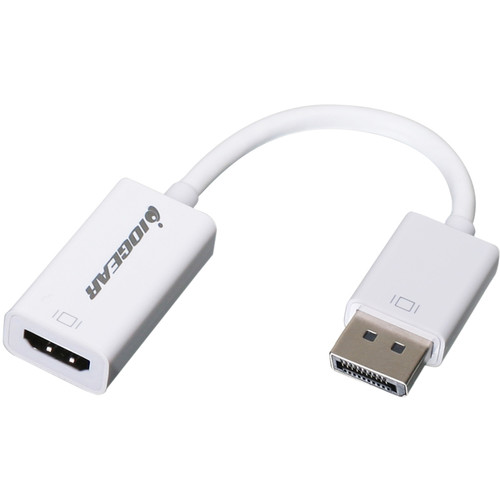

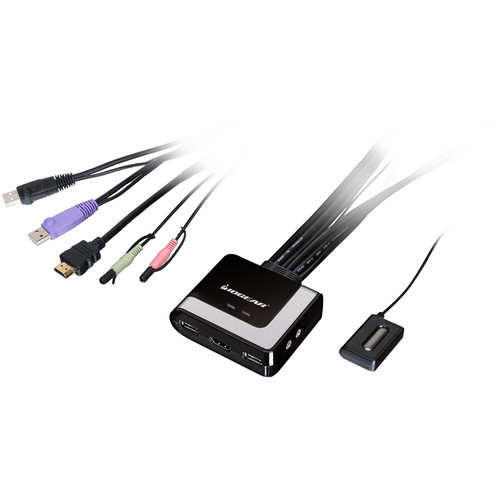

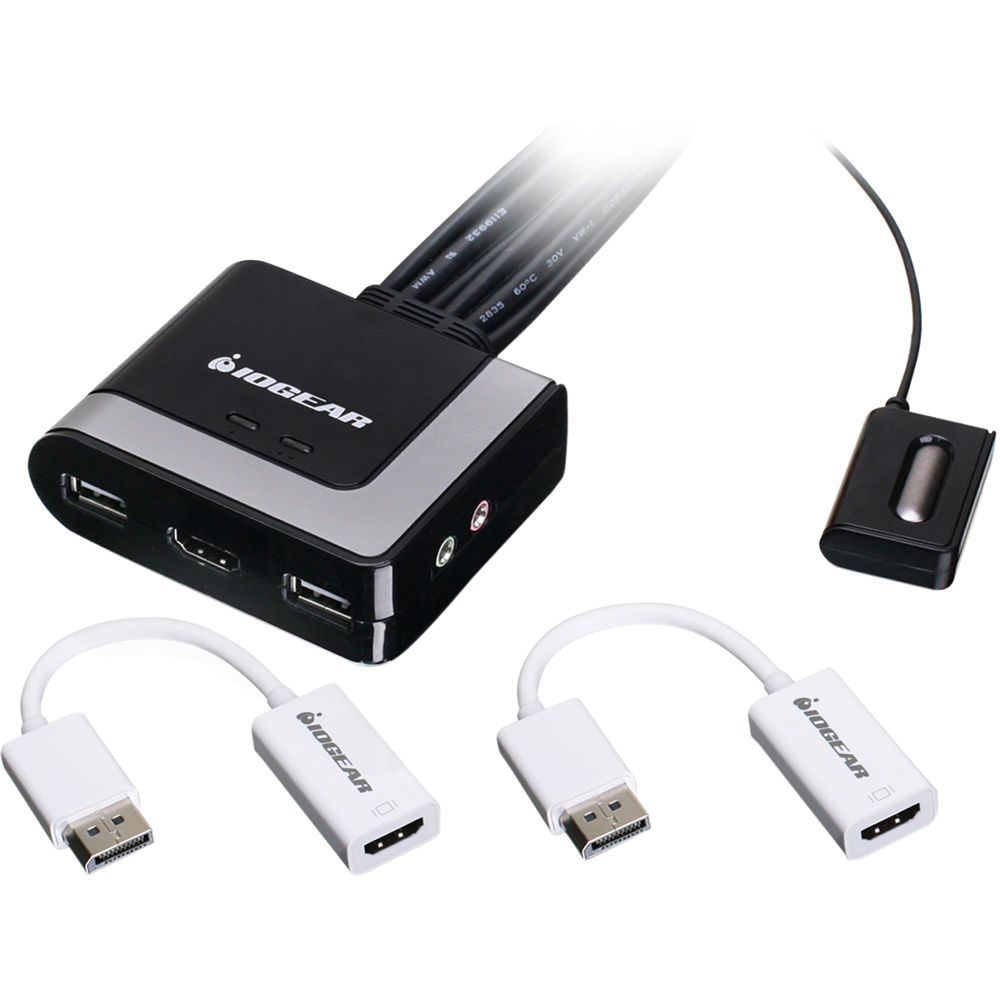

The bundle from IOGEAR comes with the 2-Port HD Cable KVM Switch along with two HDMI to DisplayPort adapters, so you can control 2 computer systems with HDMI or DisplayPort video connections using a single USB keyboard and mouse as well as an HDMI-capable monitor. Each set of integrated cables sports one HDMI, two USB, and two 3.5mm connectors for your game console or computer. The included adapters let you convert both cables into a DisplayPort connection, so you can use this switch with DisplayPort-enabled products.
This switch offers resolutions of up to 1920 x 1200 at 60 Hz, including support for FHD 1080p. You can quickly switch between the two systems with a push of a button or using asynchronous hotkey software. It supports DynaSync so that Windows 7 can read and remember the monitor’s video resolution when switching between or booting computers. IOGEAR has designed this switch to work with various operating systems, including Windows, Mac OS X, Sun Solaris, and Linux. Additionally, it is HDCP compliant and firmware upgradeable.
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 9 × 6.4 × 2.9 in |
| Connections | 2 |
| Console Connection | 1 |
| Port Selection | Hotkey, Remote Pushbutton, or Mouse Switching |
| CPU Connectors | Monitor: 2 x HDMI Type-A Male (or 2 x DisplayPort Male with adapters)<br> Keyboard: 2 x USB Type-A Male (Purple)<br> Mouse: 2 x USB Type-A Male (Black)<br> Audio: 2 x 3.5 mm Mini-Stereo Jack Male (Green)<br> Microphone: 2 x 3.5 mm Mini-Stereo Jack Male (Pink) |
| Console Connectors | Monitor: 1 x HDMI Type-A Female<br> Keyboard: 1 x USB Type-A Female<br> Mouse: 1 x USB Type-A Female<br> Audio: 1 x 3.5 mm Mini-Stereo Jack Female (Green)<br> Microphone: 1 x 3.5 mm Mini-Stereo Jack Female (Pink) |
| LED | On Line: 2 x Green |
| Specifications | DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps <br>DisplayPort link tracking <br>Compliant with DVI 1.0 up to 1.65 Gbps <br>Supports Deep Sleep mode |
| Keyboard / Mouse | USB |
| Video Resolution | Up to FHD 1080p; 1920 x 1200 @ 60 Hz |
| Scan Interval | 3, 5, 10, 20 seconds (Default 5 seconds) |
| Supported Operating Systems | Windows XP, Vista, 7, 8, 8.1, 10 <br>Mac OS 9 to 10.x <br>Oracle Solaris <br>Linux <br>Unix <br>Other USB-supported systems |
| Temperature / Humidity | Operation Temperature: 32 to 122°F (0 to 50°C)<br> Storage Temperature: -4 to 140°F (-20 to 60°C) |
| Humidity Range | 0 to 80% RH, Non-condensing |
| Material of Construction | Plastic housing |
| Dimensions (W x H x D) | 3.15 x 0.98 x 2.56" (8 x 2.5 x 6.5 cm) |
1 review for IOGEAR 2-Port HD Cable KVM Switch with DisplayPort Adapters Bundle
Only logged in customers who have purchased this product may leave a review.
Related products
$106.00
$18.71
$387.60
Mae Towne (verified owner) –
The IOGEAR KVM works flawlessly with my 2 PCs. One PC has the DisplayPort, while the other has the HDMI port. The included KVM/DisplayPort makes connecting the 2 PCs so easy. It’s particularly handy with the remote to switch PC. The remote with more than enough wire to mount very conveniently near my keyboard.
