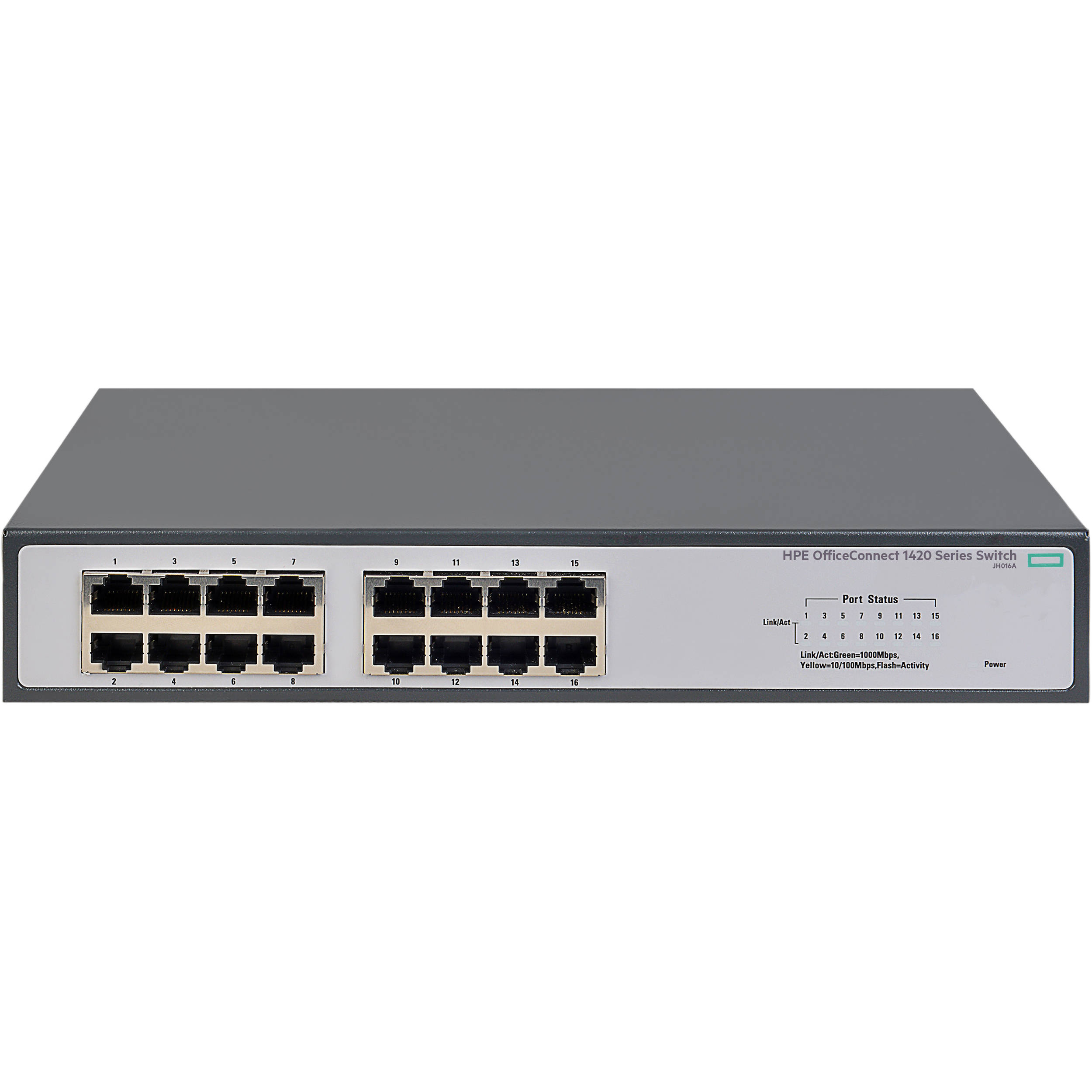

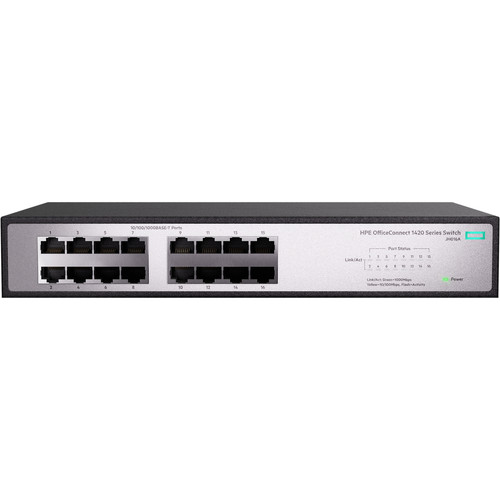

The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage. All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days.
| Weight | 4.6 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Device Type | Switch – 16 ports – unmanaged |
| MTBF | 153.3 years |
| Max Storage Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Min Operating Temperature | 32 °F |
| Service & Support | Limited warranty – advance parts replacement – lifetime – response time: next business day<br />Technical support – phone consulting – 3 years |
| Height | 1.7 in |
| Depth | 6.4 in |
| Width | 10.5 in |
| Localization | English / United States |
| Rack Mounting Kit | Included |
| Enclosure Type | Desktop, rack-mountable 1U |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Device | Internal power supply |
| Interfaces | 16 x 1000Base-T RJ-45 |
| Flash Memory | 1 MB |
| Compliant Standards | CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8192 entries |
| Performance | Throughput (64-byte packet size): 23.8 Mpps<br />Switching capacity: 32 Gbps |
| Ports | 16 x 10/100/1000 |
| Subtype | Gigabit Ethernet |
| Humidity Range Storage | 5 – 95% (non-condensing) |
3 reviews for HP OfficeConnect 1420 16-Port Gigabit Unmanaged Switch
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
Ubiquiti Networks 12-Port EdgeRouter 12 Advanced Network Router
Wired Networking
$74.99
Wired Networking
$244.99
$307.30
$271.49
Wired Networking
$14.99
Wired Networking
$149.47
Cale Leannon (verified owner) –
This switch does not provide power over Ethernet. I searched for POE switches and this unit appears in the results. It is part of a series of switches that are listed as POE, although this model does NOT. I have been trying for weeks to exchange it but support has been less than responsive.
Maximus Hermann (verified owner) –
I used to buy some other Linksys switches, but I’ve had them burn out on me, so I decided to get this instead since I’ve heard these are more reliable. So far it’s working really well, and I’ve had it quite a while now. I love the build quality and the indicator lights. It tells me what speed my connections are and when they are transmitting data. Some of the other ones I’ve used only tell you the link is up and whether it is transmitting.
Ivory Yundt (verified owner) –
I had a good prior experience with a managed HPE Switch, so I took the dive again. This switch is just a plug and play with no management options, which were unnecessary for my intended use and probably for most home users. It is more pricey than some functionally equivalent options. This is why I decided to pay a little more. First, it serves as the Ethernet connection point between various desktop devices, my computer, and my single Ethernet wall outlet. I like that the ports are on the backside of the switch so the Ethernet cables sit neatly behind while the port status lights are on the front where I can see them. Second, the switch that it replaced was very plasticky and light, so to keep it from flopping around I had to secure it with Velcro. This switch has a metal housing, and while small in size, is more weighty and substantial. It just sits in place. The aesthetics are very basic and simple. Not fancy or stylish at all, but that suits me. And, of course, when I plugged it in, it just worked, which is what you expect for PnP. Only negative is that there are cheaper options, but the relatively higher price point was worth it for me. Recommended.
