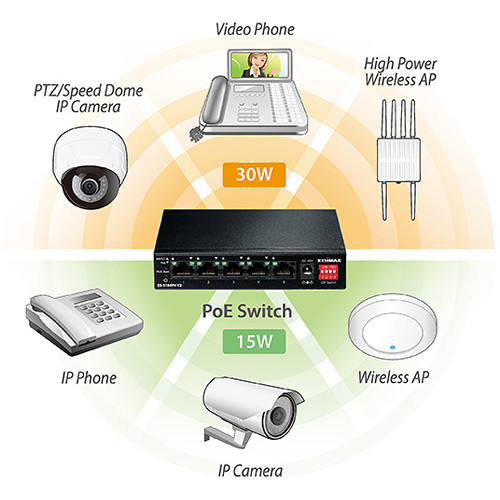

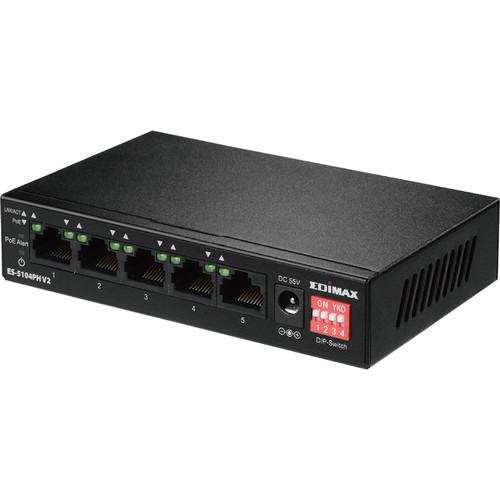

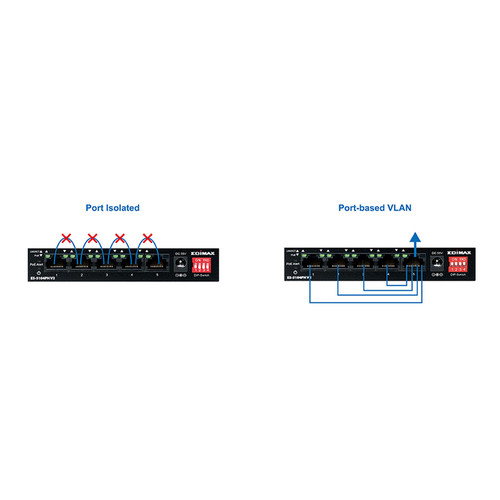

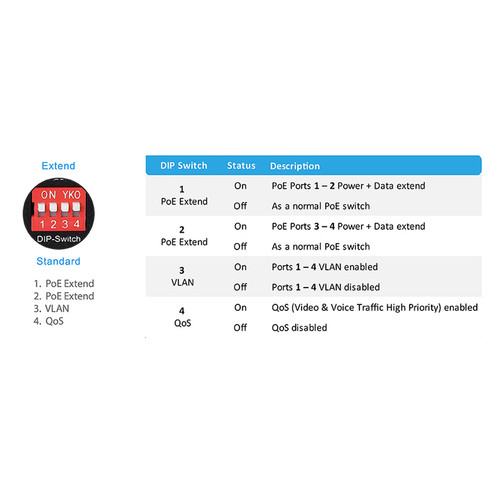

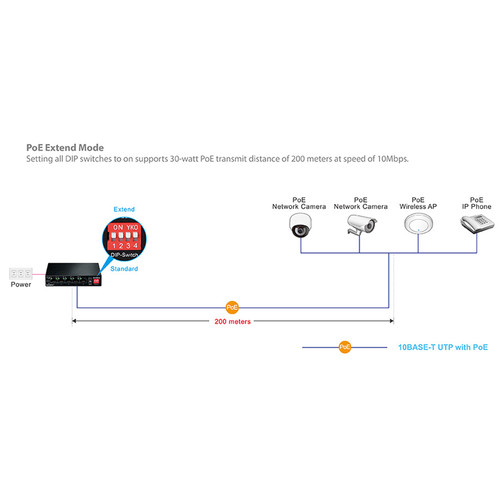

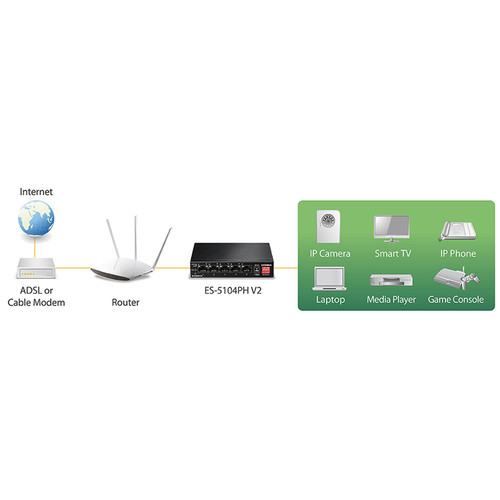

The Edimax ES-5104PH V2 is a five port Fast Ethernet switch with four PoE+ Ports designed for use in home, small or medium sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.
| Weight | 1.79 lbs |
|---|---|
| Dimensions | 8.4 × 5.2 × 3.1 in |
| Device Type | Switch – 5 ports |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Max Storage Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Min Operating Temperature | 32 °F |
| Height | 1 in |
| Depth | 3 in |
| Width | 4.8 in |
| Power Consumption Operational | 3 Watt |
| Power Device | External power adapter |
| Enclosure Type | Desktop |
| Interfaces | 4 x 100Base-TX RJ-45 PoE+ – 30 W<br />1 x 100Base-TX RJ-45 |
| Status Indicators | Power, PoE, link/activity |
| Compliant Standards | FCC, LVD |
| Features | VLAN support, store and forward, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 56KB packet buffer |
| MAC Address Table Size | 1K entries |
| Performance | Switching capacity: 1 Gbps |
| PoE Budget | 60 W |
| Power Over Ethernet (PoE) | PoE+ |
| Ports | 4 x 10/100 (PoE+) + 1 x 10/100 |
| Subtype | Fast Ethernet |
| Humidity Range Storage | 5 – 90% (non-condensing) |
