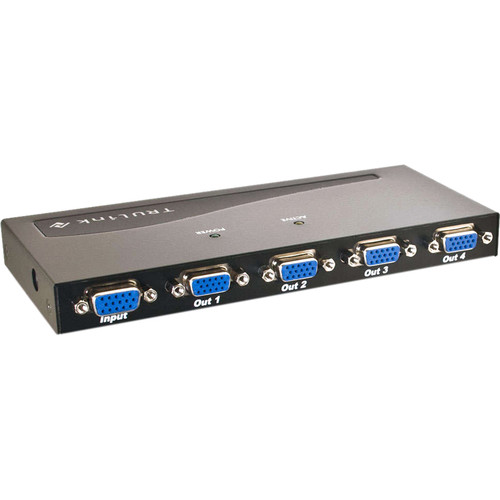

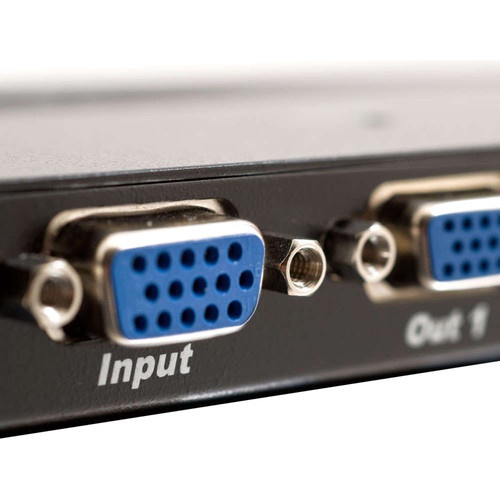

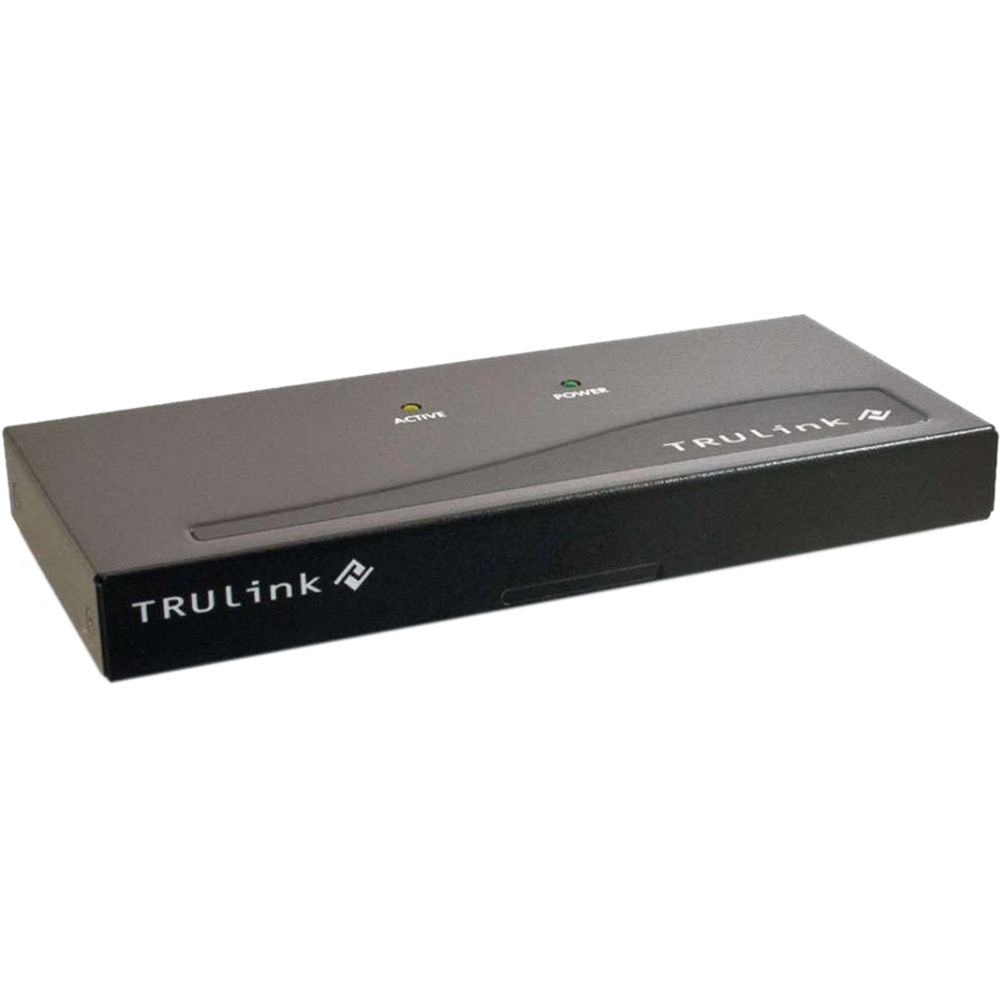

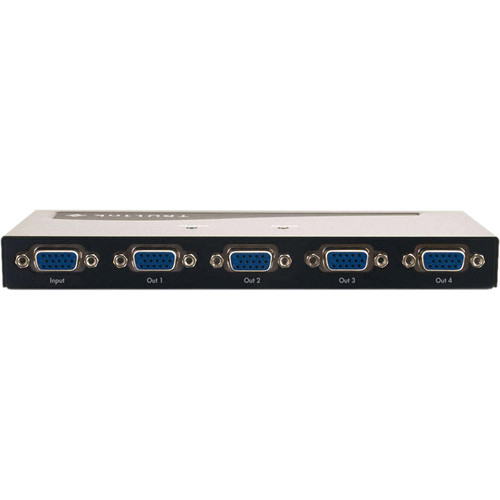

The TruLink 4-Port UXGA Monitor Splitter/Extender from C2G splits a single VGA signal to mirror the same image on four VGA-equipped monitors. This splitter sports one female VGA input port and four female VGA output ports. Without installing software or interface cards, you can set it up easily and daisy-chain multiple units together to support additional displays. C2G has also designed it to extend the VGA signal up to 210′ (64m) away, making it useful for signage environments.

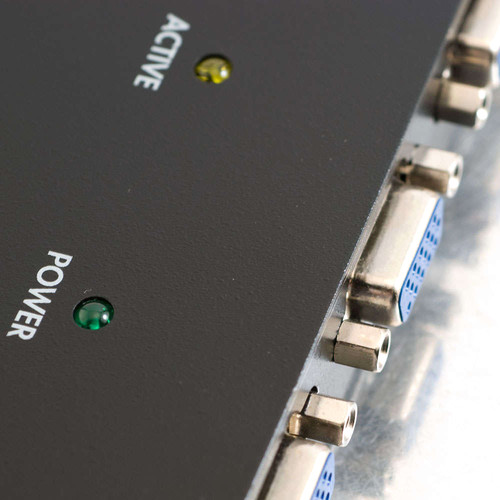

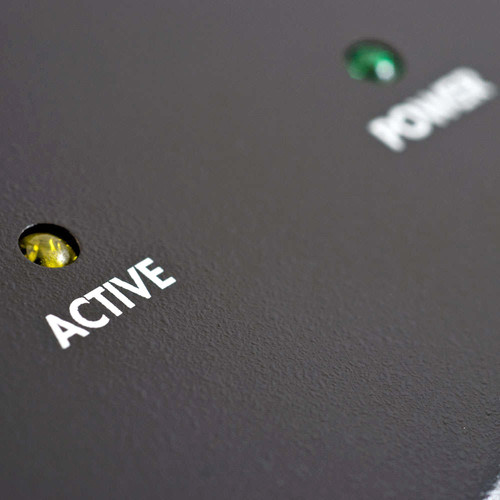

The TruLink splitter supports resolutions of up to 1920 x 1440 and is compatible with XGA, SVGA, VGA and MultiSync monitors. It is armed with an all-metal housing as well as power and activity LED indicators. Furthermore, the connectors are color coded so you can easily match the connections.
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 11.8 × 8.4 × 2.8 in |
| Connectors | Input: 1 x 15-pin VGA female<br> Outputs: 4 x 15-pin VGA female |
| Indicators | LED, Power<br> LED, Activity |
| Video Specifications | Signal Types Supported: VGA, SVGA, XGA, UXGA, and MultiSync<br> Video Bandwidth: 350 MHz<br> Maximum Resolution Supported: 1920 x 1440 at 80 Hz |
| Maximum Cable Length Supported | 210' / 64 m |
| Adapter Specifications | Power Input: 100 to 240 VAC, 50/60 Hz<br> Power Output: 9 VAC, 600 mA<br> Pin Diameter: 5.5 mm<br> Center Pin Polarity: Positive |
| Minimum Requirements | System with a 15-pin VGA video card<br> male to male 15-pin VGA cable (to connect the splitter to a computer) <br> male to male 15-pin VGA cables (to connect the splitter to the monitors) <br> Each cable must have UXGA resolution to deliver the true potential resolution of this splitter. |
| Material of Construction | Metal |
7 reviews for C2G TruLink 4-Port VGA Monitor Splitter/Extender
Only logged in customers who have purchased this product may leave a review.
Related products
Cable Accessories
$171.47
Cable Accessories
$91.67
Cable Accessories
$209.30
Marjorie Morissette (verified owner) –
This simple & very effective product out performed past models that we have purchased which claim to support signals at extended lengths. This unit has met our requirements!
Alisa Toy (verified owner) –
Nothing could be easier! Just plug in the cables and the power and get a crystal clear picture on additional projector and monitors at over 100′. I set it up in 5 minutes for a speaker using a laptop from a podium near the 1st projector, a second projector in the overflow area on a 100′ foot VGA cable, and an additional monitor on a 20′ VGA cable for those who were also one the podium. Still had an extra port available. All picutes were clear, no static, colors true to the original. Solid construction, small footprint, nice packaging, quality connectors.
Retta Streich (verified owner) –
Compact and easy to use. I use two remote flat panels and a LCD projector for presentations, the units are attached via a 35″ VGA with a 25″ VGA to my MacBook Pro.
Stella Bradtke (verified owner) –
I got this product because I’m using it to split the feed of one PC to multiple LCD screens and it was easy to install and because of the sleek design it fits behind the main monitor perfectly.
Philip Waelchi (verified owner) –
Purchased this for my church. Works great and would recommend this for anyone wishing to split your video signal to more than one projector.
Ella Berge (verified owner) –
Great Product! Very small and easy to transport. I also love the length of the power adaptor
Jerrell Rippin (verified owner) –
I have used several of these devices with high quality VGA cords up to 50′ feet with no signal degradation, even at 1920×1080.
