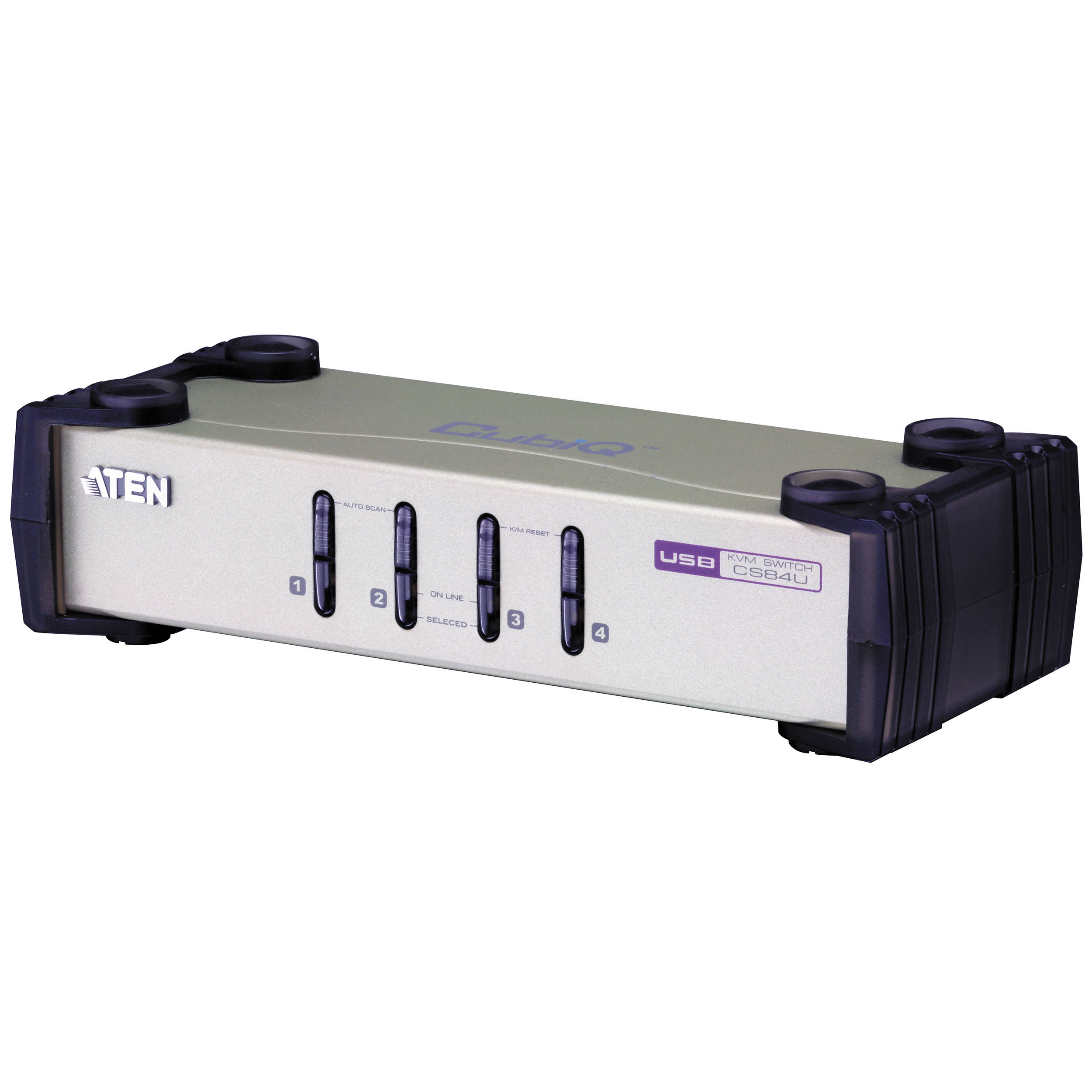

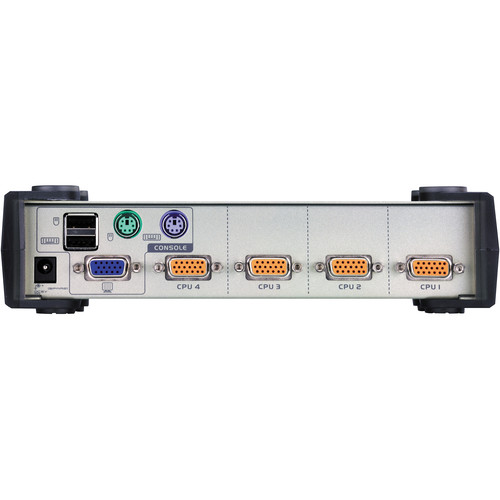

Use one mouse, keyboard, and monitor to control four computers with the CS84U 4-Port PS/2 USB KVM Switch from Aten. This KVM switch comes equipped with four SPHD-18 KVM ports that connect to your computers using the included sets of KVM cables. The switch’s console ports include a VGA connector for a monitor, and you can choose between either PS/2 or USB Type-A ports for your mouse and keyboard.
To cycle between computers, you can press the front-panel buttons, double-click the mouse button on a compatible mouse, or use a hotkey. The plug-and-play and firmware-upgradable CS84U supports Windows, Mac, Linux, and Sun PCs, as well as video resolutions up to 2048 x 1536. No software or drivers are required to use the switch.
| Weight | 3.72 lbs |
|---|---|
| Dimensions | 11.2 × 7.1 × 3.95 in |
| Max Computer Connections | 4 |
| Console Connections | Keyboard: 1 x USB Type-A and 1 x PS/2 6-Pin Mini-DIN<br> Mouse: 1 x USB Type-A and 1 x PS/2 6-Pin Mini-DIN<br> Video: 1 x VGA Female |
| KVM Ports | 4 x SPHD-18 |
| Power Ports | 1 x DC |
| Switches | 4 Push-Buttons |
| Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B Compliant |
| Scan Interval | 3, 5, 10, or 20 Seconds (5-Second Default) |
| Port Selection | Front Panel Push-Buttons, Hotkey, USB Mouse |
| LEDs | Online: 4 (Orange)<br> Selected: 4 (Green) |
| Emulation | Keyboard and Mouse: USB, PS/2 |
| Housing | Metal |
| Power Consumption | DC 5 V, 0.45 W, 11 BTU |
| Operating Temperature | 32-122°F / 0-50°C |
| Storage Temperature | -4-140°F / -20-60°C |
| Compatible Operating Systems | Windows, Mac, Linux, and Sun |
| Dimensions (L x W x H) | 8.3 x 3.5 x 2.2" / 21.0 x 8.8 x 5.6 cm |
