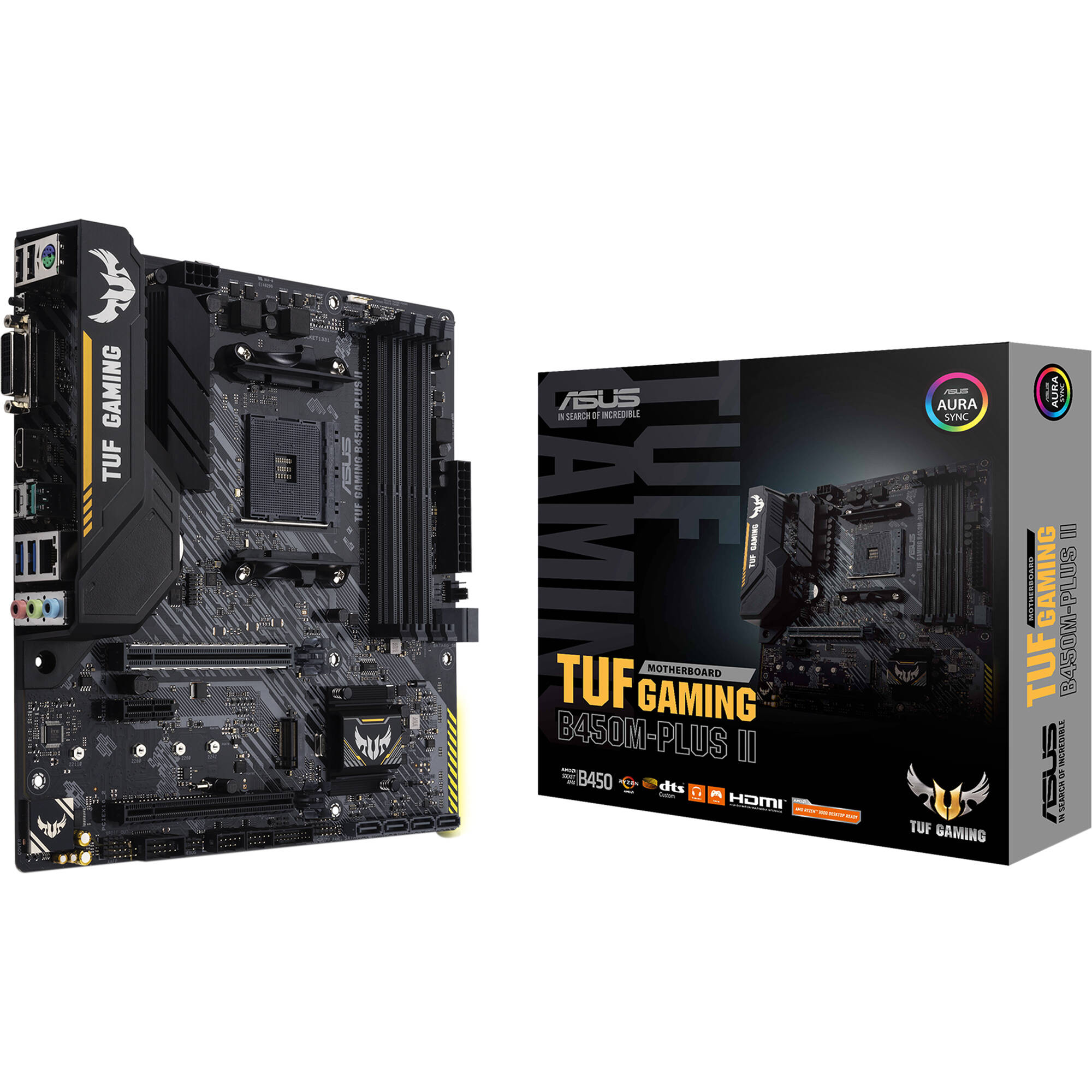

ASUS TUF Gaming B450M-Plus II AM4 Micro-ATX Gaming Motherboard

Take advantage of connectivity and gaming performance with the TUF Gaming B450M-Plus II AM4 Micro-ATX Gaming Motherboard from ASUS. This TUF Gaming motherboard utilizes the AMD B450 chipset and is compatible with CPUs that fit the AM4 socket. Four RAM slots accommodate up to 128GB of dual-channel DDR4 memory, with speeds up to 4400 MHz supported when overclocking. Install drives using an M.2 or six SATA III interfaces; connect a graphics card and other adapters using the PCIe 3.0 x16, 2.0 x16 and 2.0 x1 slots.

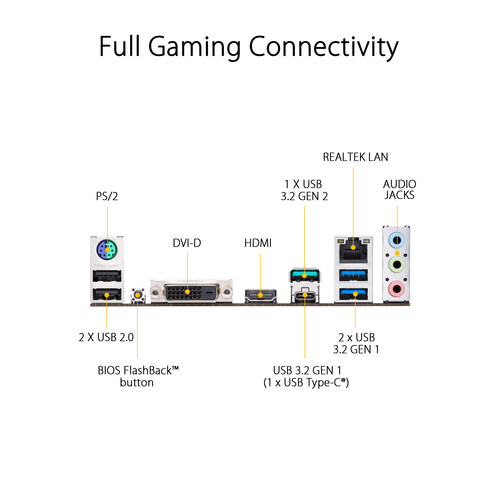

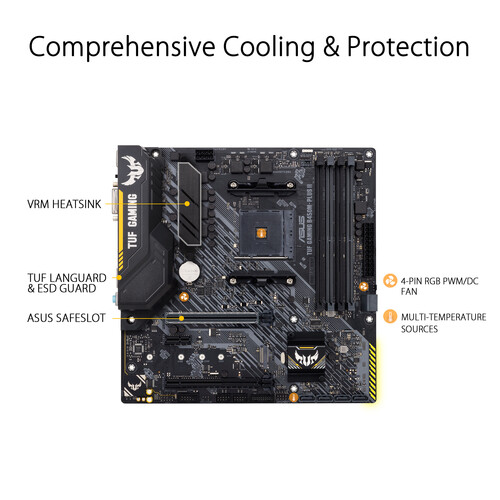

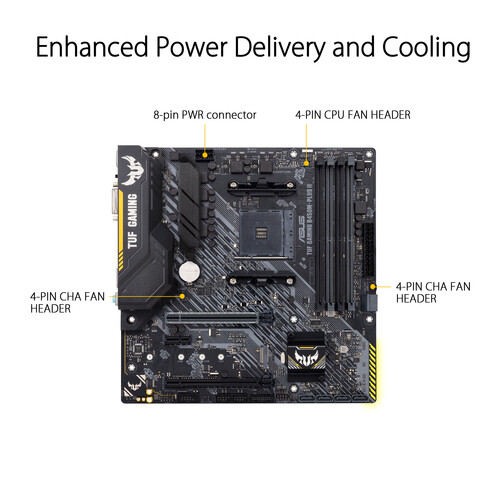

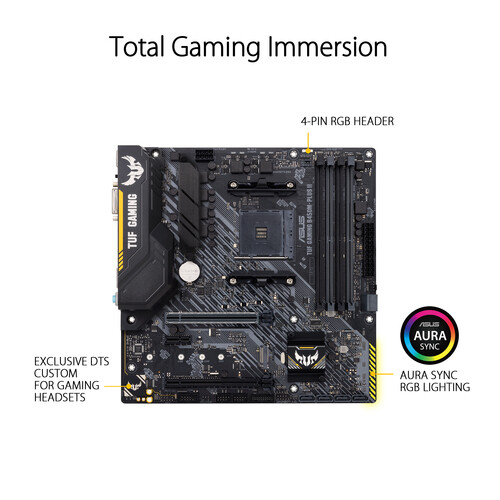

A rear I/O panel sports one USB 3.2 Gen 2, two USB 3.2 Gen 1, and two USB 2.0 Type-A ports. Additionally, a UBS 3.2 Gen 1 Type-C port is also present. Connect a legacy mouse or keyboard using the PS/2 combo port; connect displays via the HDMI or DVI-D ports. In addition to a Gigabit Ethernet port and three 3.5mm audio jacks, the rear panel also sports a BIOS flashback button. Internal headers support two USB 3.2 Gen 1 and four USB 2.0 ports on the front panel. Connectors for RGB, a TPM chip, two system fans, S/PDIF output, speakers, and a Clear CMOS are also present. Audio is handled by the Realtek ALC887 audio codec, which supports both 7.1 Surround Sound and 24-bit audio. AI Noise-Cancelling mic support provides smart audio pickup for efficient team chat, while VRM and PCH heatsinks ensure smooth operation and system stability. The ASUS TUF Gaming B450M-Plus II AM4 Micro-ATX Gaming Motherboard is compatible with Windows 10 64-bit operating systems, as well as Windows 7 64-bit when using an AMD Ryzen 1st or 2nd Generation processor.
