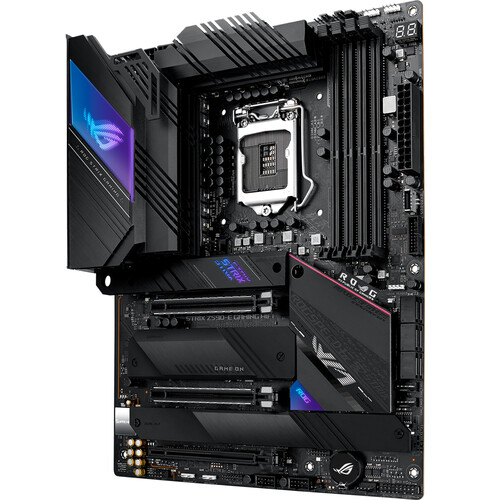

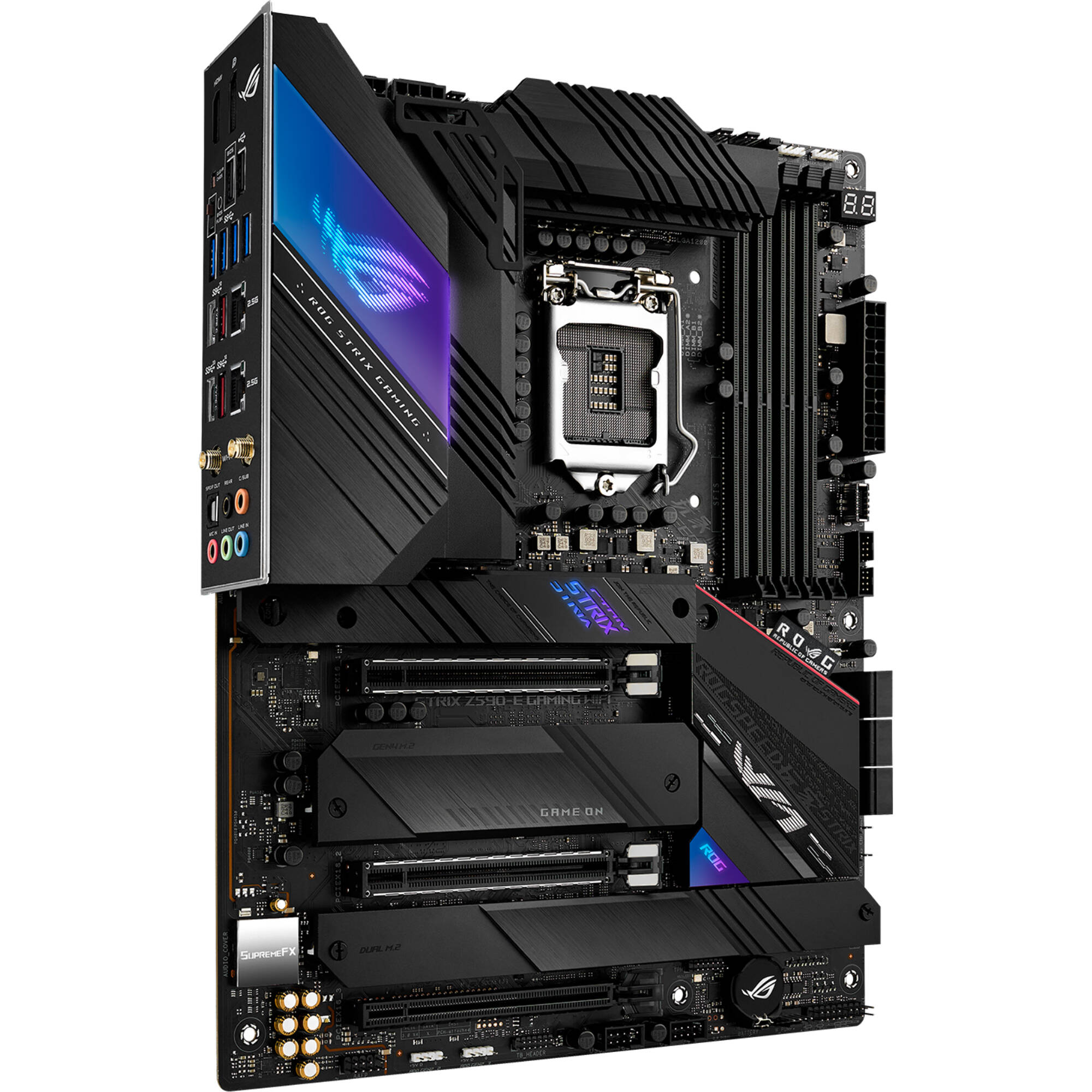

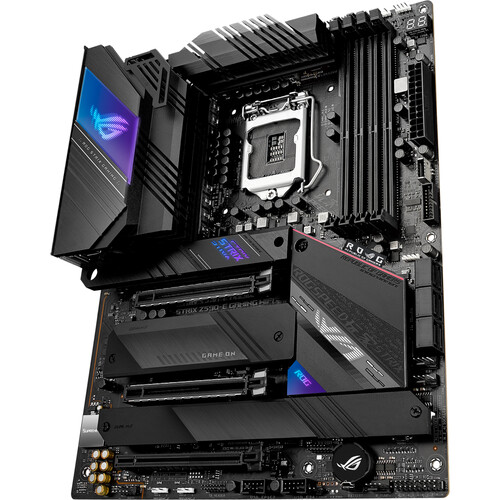

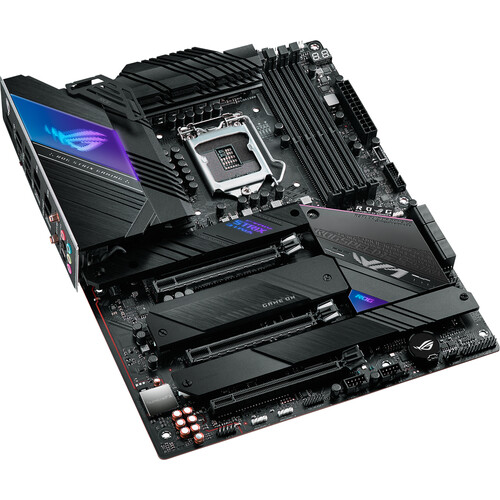

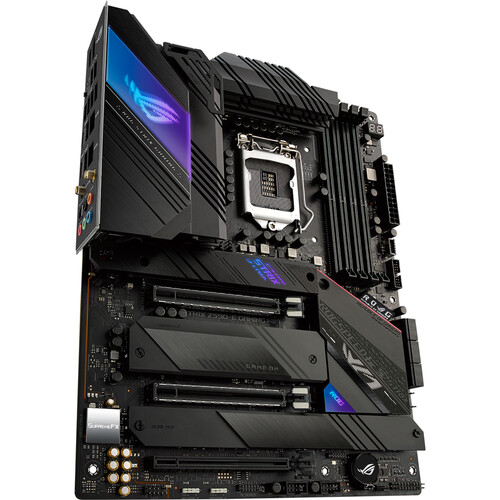

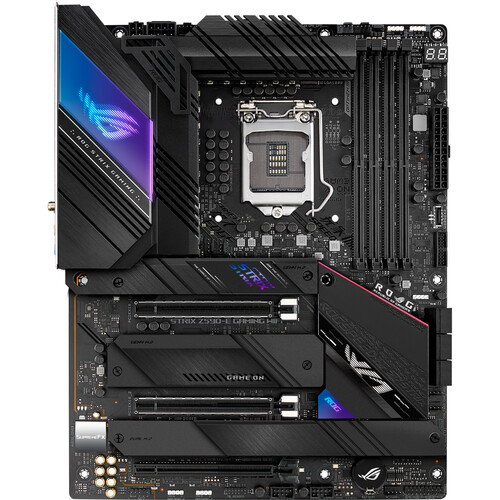

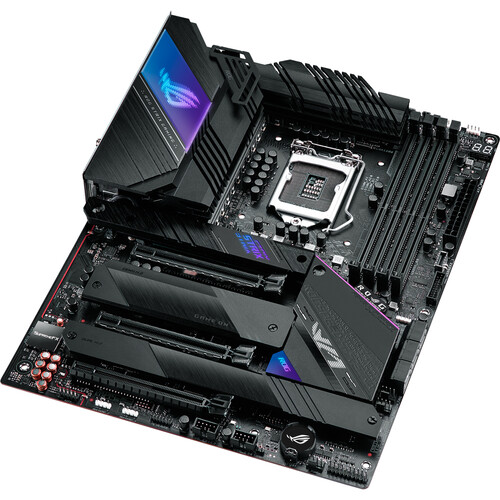

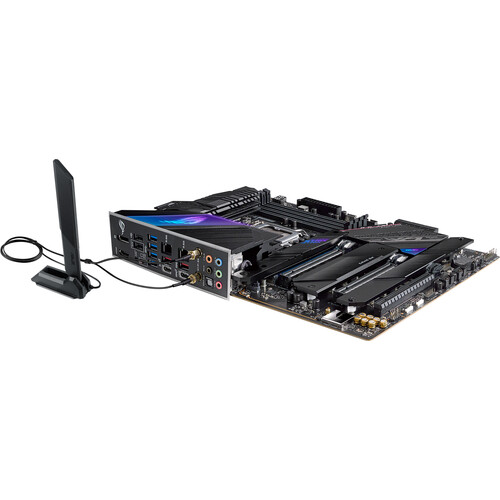

Unleash the full power of your 11th Gen Intel Core system with the ROG STRIX Z590-E GAMING WIFI LGA 1200 ATX Motherboard from ASUS. Featuring the Intel Z590 chipset, supporting both 11th and 10th generation Intel processors with the LGA 1200 socket, this ATX motherboard is designed to support high-performance computer builds for gaming and content creation. The ROG STRIX Z590-E GAMING WIFI takes full advantage of the large PCIe 4.0 data bandwidth to maximize speeds with compatible devices, including the four memory slots that support up to 128GB of dual-channel DDR4 memory, reaching 5333 MHz when overclocked. It also includes slots for up to six SATA III drives and four M.2 PCIe 4.0 and 3.0 SSDs, which can be put into RAID 0, 1, 5, or 10 configuration and enhanced with Intel Optane technology. Additionally, its three expansion slots can accommodate up to two PCIe 4.0 x16 devices , including NVIDIA SLI graphics cards in 2-way configuration to maximize your system’s graphical capabilities and accelerate rendering times. Compatible expansion cards may be installed into PCIe 3.0 x16 slot.
Connect peripherals such as mice and keyboards to the USB 2.0 ports while reserving the USB 3.2 Gen 2×2 Type-C and USB 3.2 Gen 2 Type-A and Type-C ports for 20 Gb/s and 10 Gb/s compatible devices, respectively. The SupremeFX 7.1-channel audio includes a Savitech amp for rich sound that can be further enhanced with DTS Sound Unbound spatial audio technology. The RGB lighting headers allow you to customize Aura Sync compatible light strips and devices with dazzling effects. Dual 2.5G Ethernet ports and integrated Wi-Fi 6E support provide high-speed data transfers with compatible networks and devices for super low-latency online gaming experiences and smooth 4K video streaming. Windows 10 64-bit is required to take advantage of all the motherboard’s features.
| Weight | 5.25 lbs |
|---|---|
| Dimensions | 13.6 × 10.7 × 3.1 in |
| Chipset | Intel Z590 |
| Add-On | 1 x Thunderbolt Card Header |
| Air Cooling | 2 x 4-Pin CPU<br />3 x 4-Pin System<br />1 x 4-Pin Assistant<br />1 x Thermal Sensor |
| Liquid Cooling | 2 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 4 x RGB |
| Diagnostics | 2-Digit Debug LED, CPU Overclock |
| ROM | 256 Mb |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2 |
| Audio Codec | SupremeFX ALC4080 (7.1-Channel) |
| DAC | Savitech SV3H712 |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Multi-GPU Support | 2-Way NVIDIA SLI |
| RAID Support | RAID 0, 1, 5, 10 |
| CPU Socket | LGA 1200 |
| Memory Slots | 4 x 288-Pin |
| USB | 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.0<br />1 x DisplayPort 1.4 |
| Ethernet / Controller | 2 x Intel I225-V 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133, 5333 MHz |
| Optane Memory Support | Yes |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| U.2 | None |
| Form Factor | ATX |
