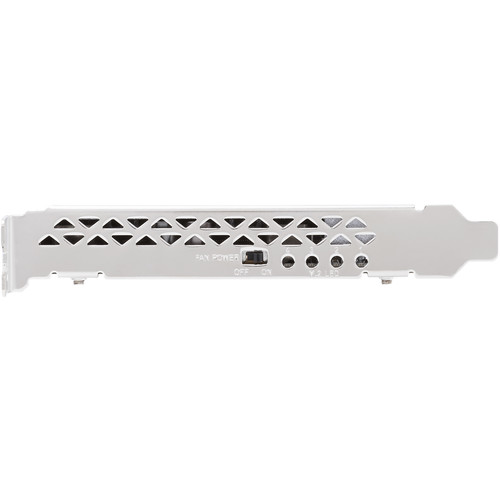

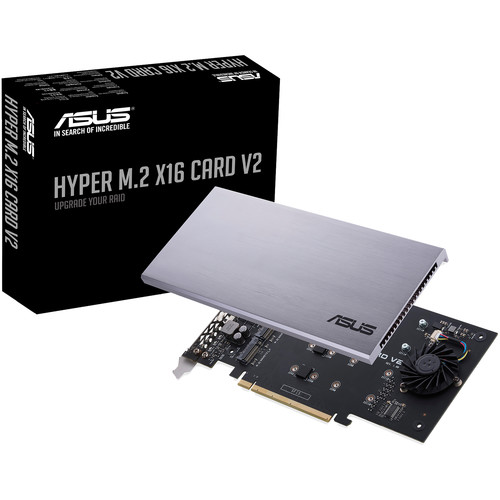

Add additional storage to your system with the Hyper M.2 x16 Card V2 from ASUS. Using an empty x8 or x16 PCIe slot, this card provides you with four PCIe M.2 slots with up to a 22110 form factor. For the best performance, you can configure NVMe drives in RAID for data transfer speeds of up to 128 Gb/s. At the back of the card are four status LEDs and a fan power switch, which it uses in combination with its heatsink cover to keep your drives cool and prevent throttling.
The Hyper M.2 x16 Card V.2 is Intel VROC-ready for X299, Z370 and Z390 Series motherboards, using Intel SSDs only. Using AMD Ryzen Threadripper NVMe RAID, it is compatible with X399, X470, B450, X370, and B350 Series motherboards. The maximum number of M.2 SSDs supported may vary depending on the CPU.
| Weight | 1.41 lbs |
|---|---|
| Dimensions | 9.7 × 8.9 × 2.1 in |
| Host Interface | PCI Express 3.0 x4 |
| M.2 | 4 x 2242, 2260, 2280, 22110 (PCIe (Unspecified)) |
| RAID Modes | None |
| Audible Alarm | No |
| Status Monitoring | LED Indicator |
8 reviews for ASUS Hyper M.2 x16 Card V2
Only logged in customers who have purchased this product may leave a review.
Related products
Controller Cards
StarTech 4-Port PCI Express Low-Profile High-Speed USB 2.0 Card
Controller Cards
$80.21
Controller Cards
HighPoint RocketRAID 2782 SAS 6 GB/s PCI-E 2.0 x16 Host Bus Adapter
$421.85
Controller Cards
HighPoint SSD7180 PCIe 3.0 x16 8-Channel U.2 NVMe RAID Controller
$479.20
Controller Cards
$90.30
Controller Cards
Sonnet Tempo 6 Gb/s SATA PCI Express 2.5″ Solid State Drive Card
Controller Cards
$74.80
Leila Bartoletti (verified owner) –
I am using it on a Truenas machine with 14 Cores CPU. It is the only expansion module that could get maximum speed. Integrated Cooling system. I use SAMSUNG EVO and it can handle up to 3.2GByte per second per NVME module…. super fast.
Retha Pollich (verified owner) –
So far I’ve only got one extra M.2 installed, but this card feels rigid and can definitely keep your cards cool. The built-in fan is a great addition, and not to mention the thermal paste on the inside for your cards.
Cristopher Luettgen (verified owner) –
Buen producto
Desmond Beatty (verified owner) –
I bought this to go with a Samsung 2TB 970 EVO Plus NVMe M.2 Internal SSD. Works great with my X299 Motherboard. I use it for video editing and it has 4 bays for future expansion.
Silas Wyman (verified owner) –
Updated my PC for more storage, easy install with 2 Hynix Gold P32 SSD’s. Working great so far, speeds are quick loading large photo files. This addition I would recommend!
Ferne Schneider (verified owner) –
Installed in PCIE slot 3 on ROG Zenith Extreme motherboard With two WD Black 500 GB NVME m.2 SSDs. Meets expectations. Will be adding two Samsung 970 EVO Plus NVME M.2 SSDs in the future.
Kelly Wiegand (verified owner) –
Very easy to open and install my M.2 SSDs. Use an x16 PCIe if you have one available on your motherboard for optimal performance.
Addison Cartwright (verified owner) –
The ASUS Hyper m.2 Card is the best M.2 card on the market. Slots to add up to 4(four) M.2 SSDs to your computer. Hyper m.2 card comes in well-built sleek looking card with a built-in cooling fan for the SSD’s. What more could you want?
