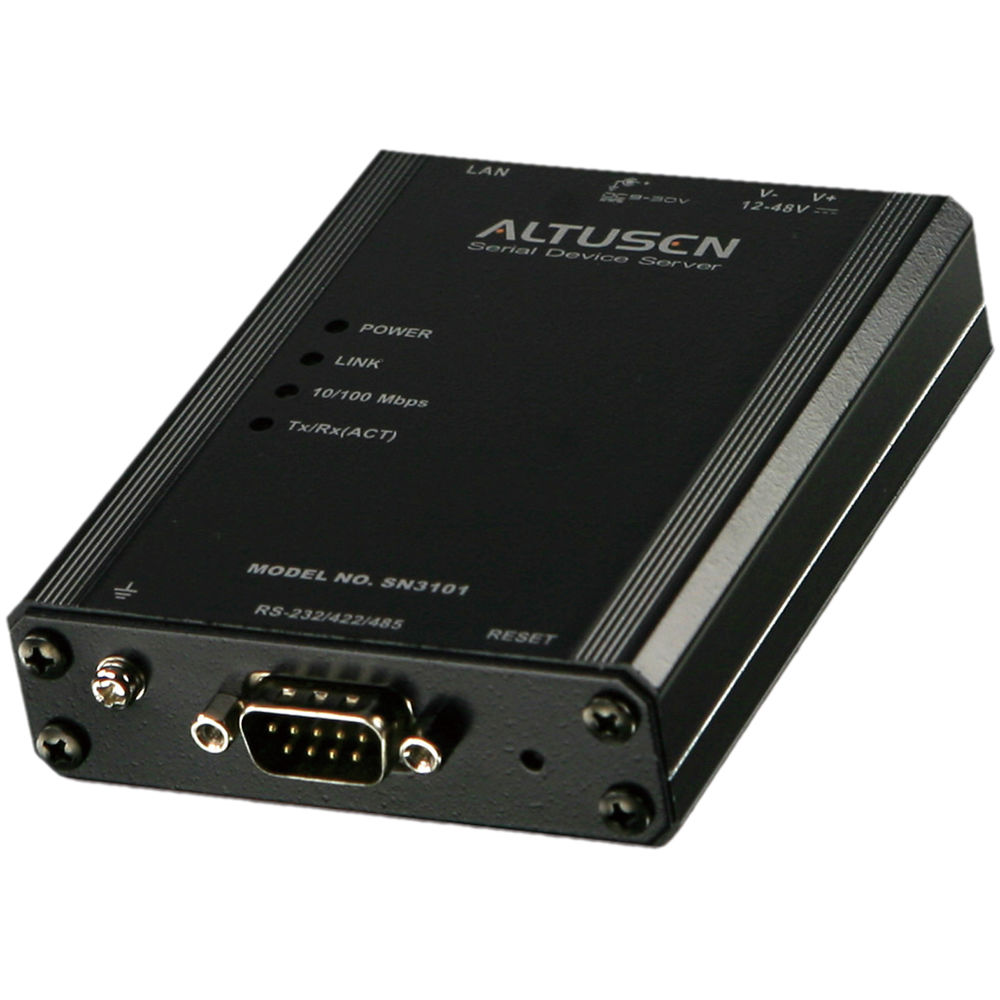

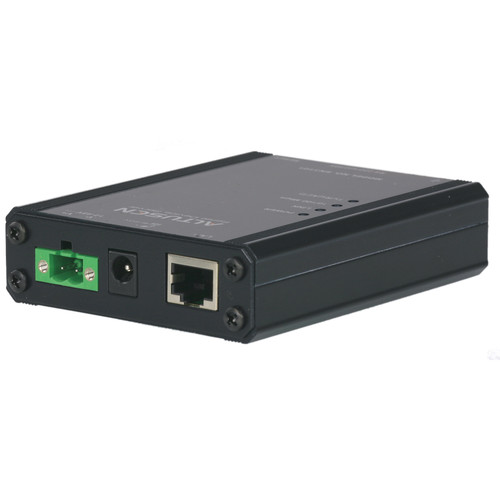

ATEN SN3101 Serial Device Server – RS232/422/485 Ethernet
$153.97
Transform legacy serial devices with ATEN SN3101, a 3-in-1 Serial Device Server supporting RS-232, RS-422, and RS-485 data transfers over Ethernet.
In stock
Description
Aten SN3101: Revolutionize Serial Device Connectivity
The ATEN SN3101 One Port Serial Device Server is a versatile, 3-in-1 solution designed to integrate legacy serial devices into modern Ethernet networks seamlessly. By supporting RS-232, RS-422, and RS-485 data transfers, this device server enables a wide range of commercial applications, including industrial control, data acquisition, access control, environment monitoring, banking, telecoms, and remote site management.
Key Features:
- Multi-Protocol Support: Compatible with RS-232, RS-422, and RS-485 protocols, offering flexibility for various serial devices.
- Ethernet Connectivity: Provides reliable and fast Ethernet connectivity for legacy serial devices.
- Versatile Applications: Suitable for industrial control, data acquisition, access control, and more.
The ATEN SN3101 transforms the capability of legacy serial devices, allowing them to leverage the speed and reliability of modern communication techniques. This not only enhances operational efficiency but also extends the lifespan of existing serial devices, making it a cost-effective solution for businesses looking to upgrade their infrastructure without replacing legacy equipment.
With its robust design and comprehensive feature set, the ATEN SN3101 is an ideal choice for organizations seeking to integrate their serial devices into contemporary network environments. Whether you’re managing remote sites, monitoring environments, or controlling industrial processes, the SN3101 offers a reliable and efficient connectivity solution.
Additional information
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 9.4 × 6.3 × 2.3 in |
| Connectors | 1 x DB-9 male (black) |
| Power Consumption | 9 V, 2.7 W |
| Housing | Metal |
| Humidity | 0 ~ 95% RH, non-condensing |
| Storage Temperature | -4 to 185°F (-20 to 85°C |
| Operating Temperature | 32 to 140°F (0 to 60°C) |
| Class Compliant | FCC Class A, CE Class A, RoHS |
| Serial | Standards: RS-232/422/485; software selectable |
| Power Line | Protection: 4 KV burst (EFT), EN61000-4-4 2 KV surge, EN61000-4-4 |
| Network | Standards: 10/100BaseTX; Autosensing |
| Power Adapter | 100 to 240 V AC; 50/60 Hz |
| TxRx (ACT) | 1 (green) |
| 10/100 Mbps | 1 (orange/green) |
| Link | 1 (green) |
| Reset | 1 x semi-recessed pushbutton |
| Power | PWR1: 12 to 48 V DC (2-pin terminal block) |
| Dimensions (L x W x H) | 4.2 x 3.1 x 1" (10.69 x 7.90 x 2.44 cm) |
