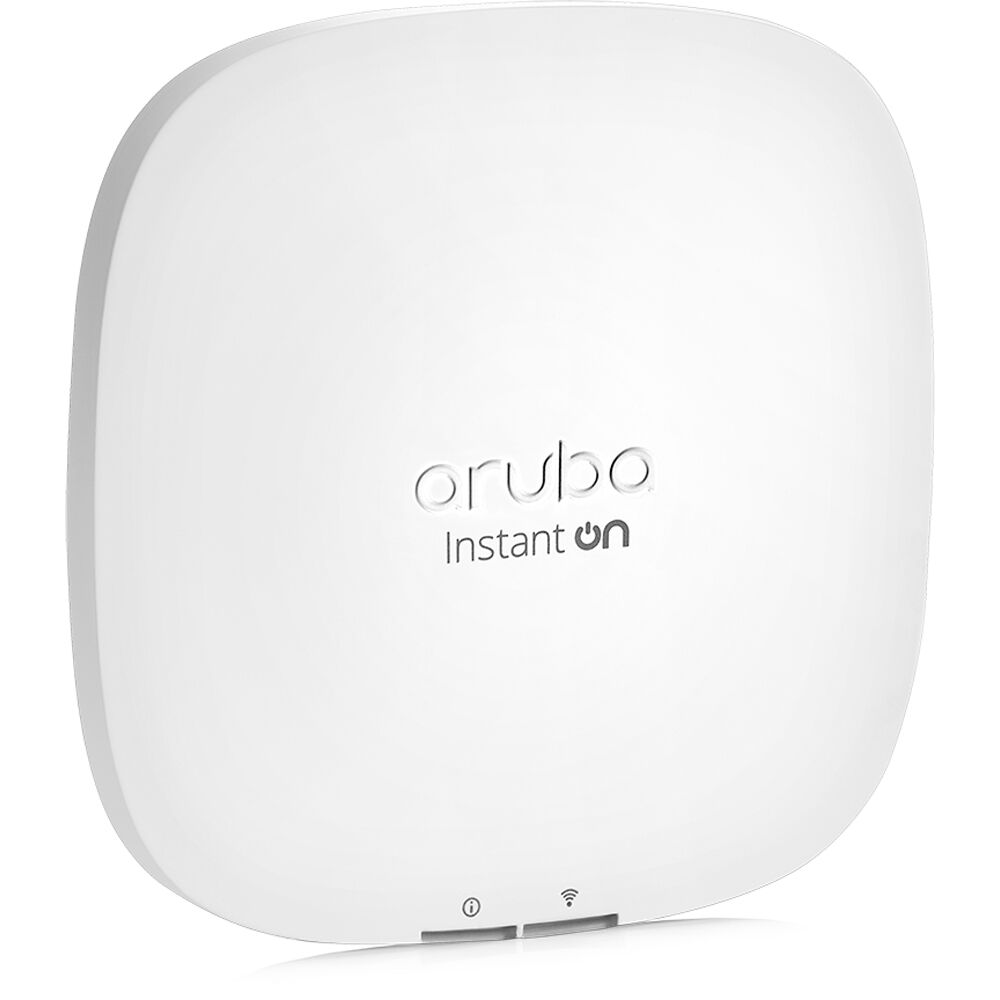

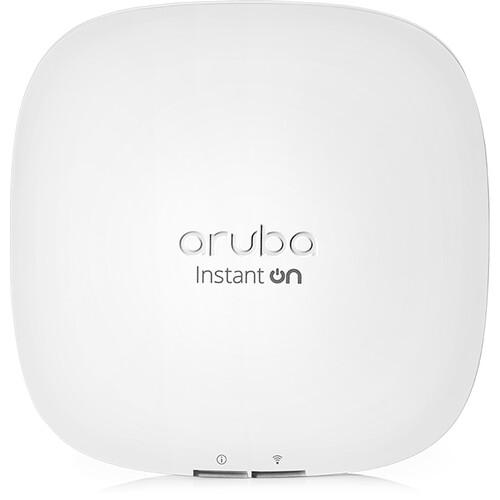

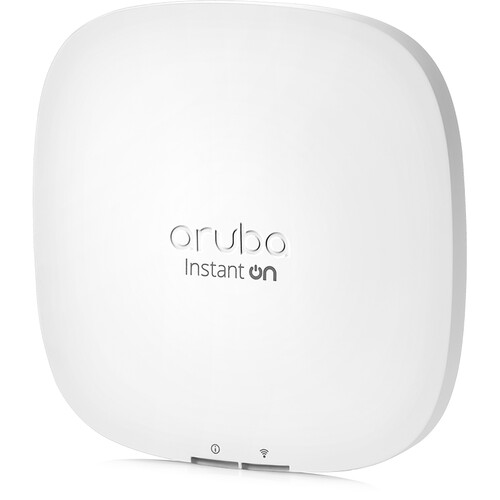

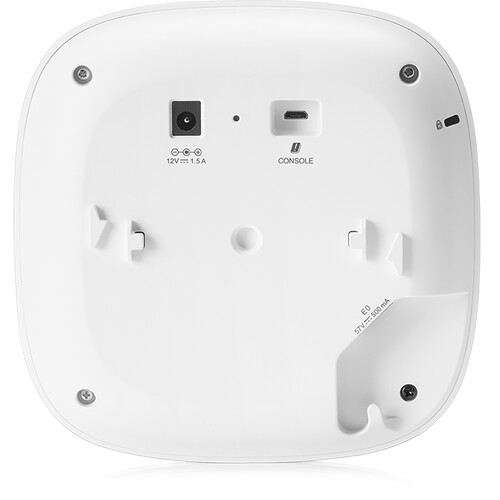

Enhance your business’s wireless coverage with by connecting an Aruba Instant On AP22 Dual-Band Access Point to your network. Supporting 802.11ax Wi-Fi, this dual-band access point can transfer up to 574 Mb/s over the 2.4 GHz frequency band and 1200 Mb/s on the 5 GHz band for a total throughput of 1775 Mb/s. The Instant On AP22 can be powered through PoE using the Gigabit Ethernet uplink port or you can connect a separate 12V DC adapter. Its two down-tilt omnidirectional antennas support 2 x 2 MIMO technology with a peak gain of up to 5.6 dBi over the 5 GHz band, providing fast and stable connections to devices. The wireless signal is secured by WPA2 and WPA3 authentication while a built-in firewall helps to prevent intruders and bots from accessing your network. You can mount the access point on your desk or use the included clip to mount it onto a wall or ceiling. Configure the access point via the Aruba Instant On mobile app to set up guest networks, block users, and take advantage of other features.
| Weight | 1.34 lbs |
|---|---|
| Dimensions | 7.4 × 6.9 × 2.6 in |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| Lock Slot | Yes, Kensington |
| Mount Options | Wall, Ceiling |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Power Consumption | 10.1 W |
| DC Input Power | VDC |
| Supported IEEE Standards | 802.11ac, 802.11ax, 802.11a, 802.11b, 802.11g, 802.11n, 802.3af |
| Throughput | 1774 Mb/s Total <br>5 GHz: 1200 Mb/s <br>2.4 GHz: 574 Mb/s |
| Operation Modes | Access Point |
| Wireless Security | WPA2, WPA3 |
| Number of Antennas | 2 |
| Guest Network Support | Yes |
| USB Sharing Support | No |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE |
| Antenna Placement | External (Detachable) |
| Antenna Gain | 4.3 to 5.6 dBi |
| WLAN Mode | Wi-Fi 6 (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Warranty Length | Limited 1-Year Warranty |
8 reviews for Aruba Instant On AP22 Dual-Band Access Point
Only logged in customers who have purchased this product may leave a review.
Related products
Wireless Networking
Ubiquiti Networks RD-5G31-AC RocketDish airMAX Carrier Class 2×2 PtP Bridge Dish Antenna
$237.30
Wireless Networking
StarTech 300 Mb/s PCIe 802.11 b/g/n Wireless Network Adapter
$22.50
Wireless Networking
ASUS RP-AC1900 Dual Band Wireless Wi-Fi/AiMesh Range Extender
Wireless Networking
Wireless Networking
$96.77
Wireless Networking
$27.99
Wireless Networking
Wireless Networking
Motorola MH7022 Whole Home AC2200 Wireless Tri-Band Gigabit Mesh Wi-Fi System (2-Pack)
$111.99
Lyda Schmitt (verified owner) –
I’m a novice and have been using an ASUS wireless routers for years. Bought this AP22 and a 1930 switch about a year ago from B&H. Made a pfsense box out of an old pc to do the router and firewall The whole setup has been running well without issues. Extremely stable. No more resetting the router or Wi-Fi. Very happy with the system
Eliza Cruickshank (verified owner) –
The AP-22 is a newer version of the AP15. Has good features and functionality. Highly recommend.
Chance Nader (verified owner) –
My house has always been a bit tricky Wi-Fi-wise. This AP fixed that. I have 2 of them. One is running POE at the switch and the other is connected (mesh’d?) to the first one. Bam! All dead spots filled. The App showed that one of my TVs was getting a ‘poor’ signal so I checked with my daughter and she said that she had no buffering or dropouts. Apparently the AP22 with a poor signal is better than any other solution I’ve tried. Also Wi-Fi 6 is great. It’s not mind-blowing fast but it’s so fast that you don’t even think about it… I guest that is mind-blowing. I do a lot of online gaming. This fixed all of my NAT issues for the first time ever. It no longer seems like I’m the only person playin CoD. Guest network control is pretty awesome. I generally keep it turned off, but if people come over I use app, turn it on, and everyone can log on easily. It’s pretty cool. If I had any complaint it would be that POE seems to be SLOW to start, it takes a long time to boot the AP, but I don’t know if that is the AP or POE in general.
Kiara Fadel (verified owner) –
I installed 4 of these devices in our community clubhouse. One is connected to our Comcast business router via ethernet cable (as the base), the others synch wirelessly with the base as a mesh network. The devices provide for good WI-FI reception across the entire clubhouse. Their phone app makes it very easy to define the network and setup the devices, and I am not a pro by any means. The hardest part was finding a good spot for the devices to cover all the rooms we have in the building. The phone app tells you if have good/fair/poor signal with an access point and the base, helping you to locate it. I went with the Aruba APs versus others I read about as they have the best features for the price. So far I am very happy with the purchase.
Emanuel Hickle (verified owner) –
Great easy product. I would recommend creating an account online via the Aruba Instant On Portal first. Install the first AP with POE and uses the serial number to associate it with your Aruba account in the portal. For each subsequent device on the same network, you can just adopt them without needing to do the serial number part. Couldn’t be happier, makes my life easy!
Aurelie Roberts (verified owner) –
My clients have been complaining about issues with Unifi for a while now, and their equipment always needs to be updated or rebooted. Seems like it’s always something. I tried Aruba Instant On. It was easy to setup, it’s low maintenance and updates it self on a schedule I set. Of course there are cons to the system. 25 AP limit, limited functionality, but for most clients, that’s all they need. I’m just happy with the decreased workload.
Alice Keeling (verified owner) –
I been battling with Aruba Instant On since I purchased a complete network system from them on 7/5/2021. It’s 10/3/2021 and we still have issue with Aruba Instant On and iOS product, it will not connect to WIFI. I called Aruba, submitted a ticket, spoke with chat and still no resolution. I wish I could’ve listen to myself and return this product when I was within my 30 day window. Save yourself the headache and just purchase Unifi. I wouldn’t recommend this to my worst enemy, just because it’ll be torture and I’ll be breaking a few rules in the Geneva Convention.
Dorothy Roob (verified owner) –
I could not find a way of turning off the traffic categorization which means at some point they are tracking what sites you go to and who knows what that data is being used for. should have the option to turn it off.
