Description

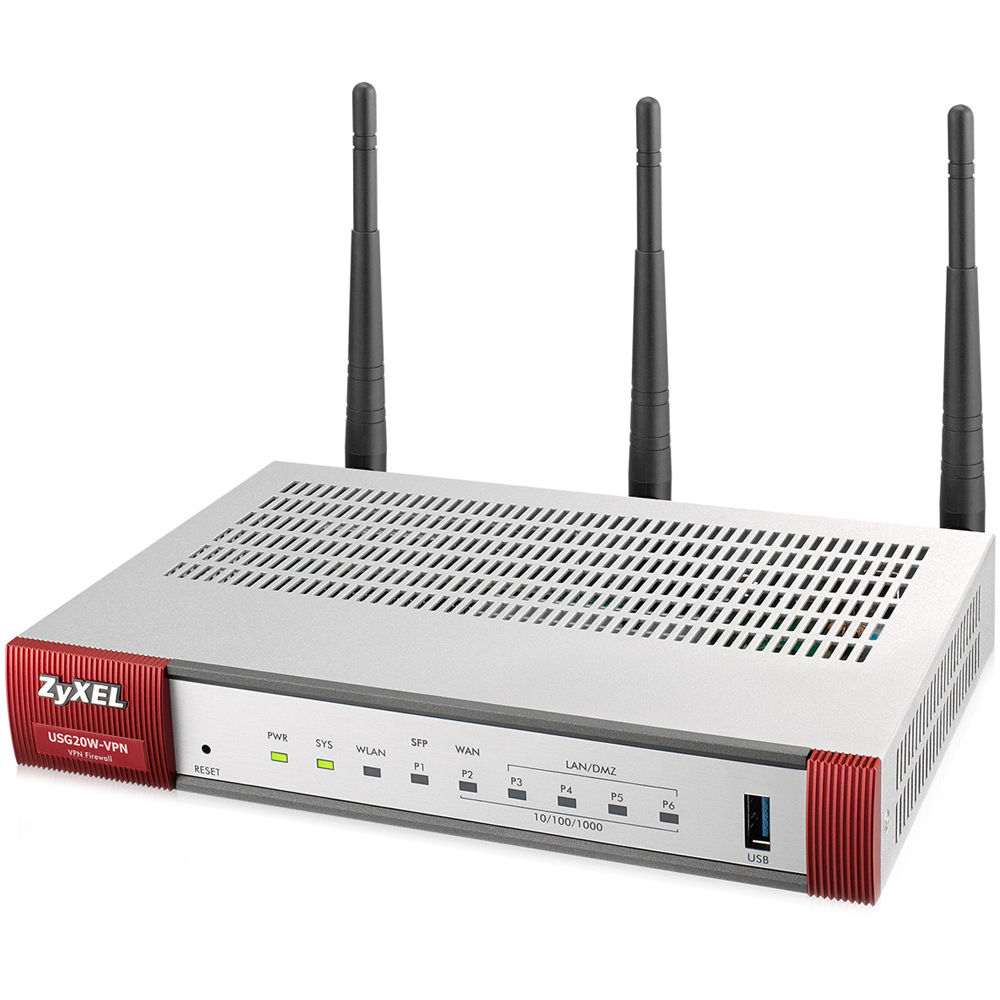

The USG20W-VPN provides safe and reliable VPN connections. Faster processors have vastly boosted the capabilities of attackers to decrypt VPN tunnels. With support to the advanced Secure Hash Algorithm 2, the VPN firewall provides safe VPN connections to ensure maximum security for business communications.
Additional information
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 11 × 7.5 × 4 in |
| Device Type | Firewall |
| Width | 8.5 in |
| Depth | 5.6 in |
| Height | 1.3 in |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 1300 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Network / Transport Protocol | L2TP, IPSec, PPPoE, DNS, DDNS, DHCPv6 |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, GRE, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Firewall throughput: 350 Mbps<br />VPN throughput: 90 Mbps |
| Capacity | Concurrent IPSec VPN tunnels: 10<br />Concurrent sessions: 20000<br />Concurrent SSL VPN users: 10<br />SSL VPN users: 15<br />Maximum number of configured SSIDs: 8 |
| Features | Network monitoring, routing, NAT support, VPN support, PAT support, SNAT support, load balancing, VLAN support, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, ALG support, E-mail alert, IPv6 support, High Availability, Transparency, firmware upgradable, DDos attack prevention, tunneling, IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, Multiple SSID support, bandwidth control, DHCP relay, CAPWAP support, DHCP client, dual firmware images, tagged VLAN, Captive Portal, VPN auto-reconnection, Single Sign-On (SSO) support, ZyXEL One Network (ZON), SmartConnect Technology, system log, failover protection |
| Encryption Algorithm | DES, Triple DES, MD5, IKE, SSL, DH, SHA-1, PKI, 256-bit AES, IKEv2, 512-bit SHA-2 |
| Authentication Method | RADIUS, X.509 certificates, Radio Service Set ID (SSID), LDAP, Active Directory, Extensible Authentication Protocol (EAP), XAUTH authentication |
| Compliant Standards | UL, BSMI, ICSA IPSec certified, ICSA Firewall certified, FCC Part 15 B, IC, EMC Class B, RCM |
| VoIP Protocols | H.323, SIP |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Interfaces | 4 x 1000Base-T – RJ-45 (LAN / DMZ)<br />1 x 1000Base-T – RJ-45 (WAN)<br />1 x USB – Type A<br />1 x – SFP (mini-GBIC)<br />1 x console – RJ-45 |
| Cables Included | 1 x console cable |
| MTBF | 44, 000 hour(s) |
| Power Device | External power adapter |
| Power Consumption Operational | 12 Watt |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
