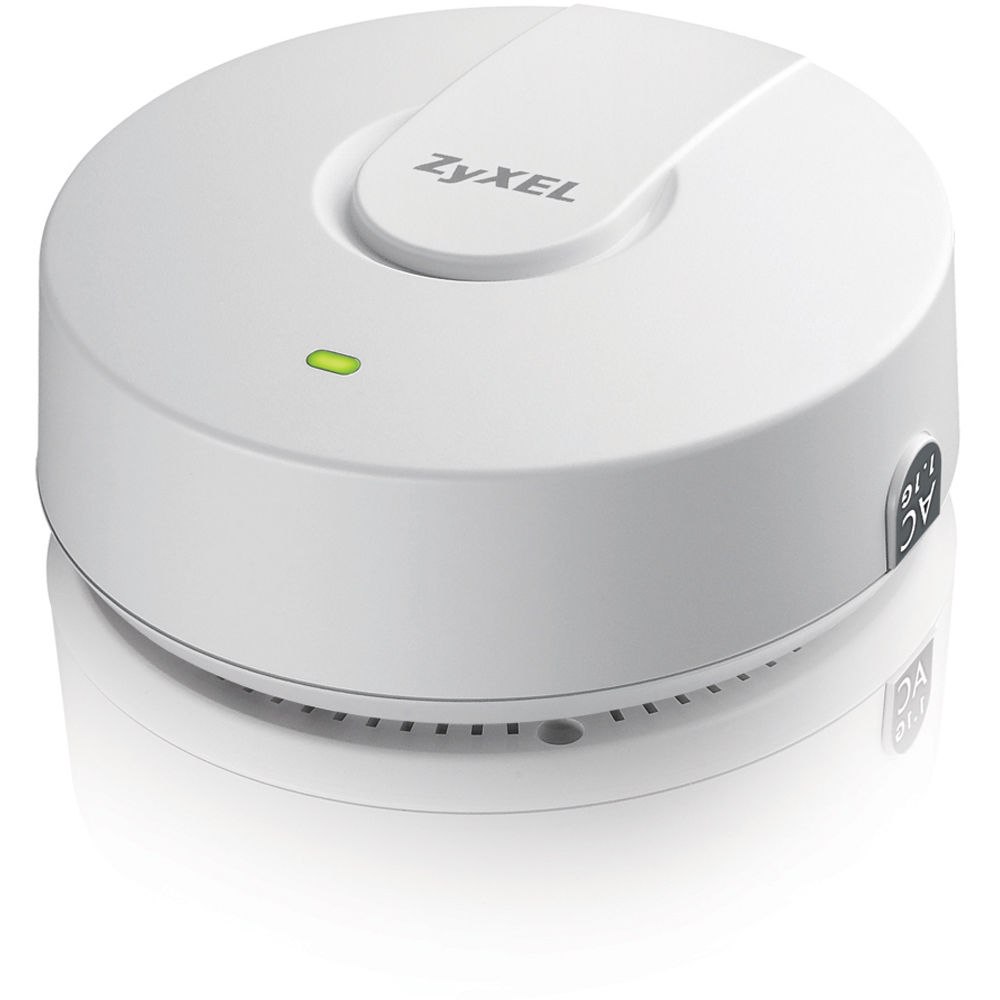

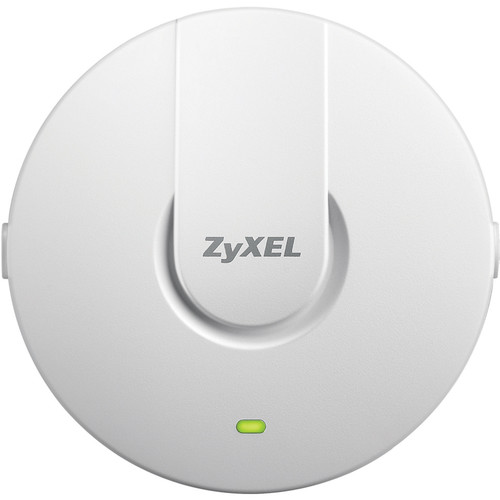

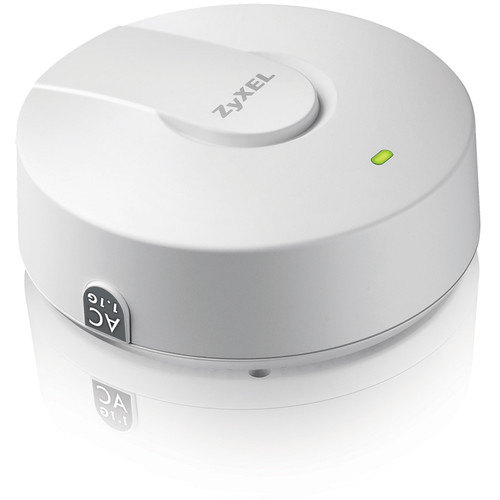

With a compact, ceiling mount design, the NWA1123-AC 802.11ac Ceiling Mount PoE Access Point from ZyXEL can be installed in a variety of locations such as schools, hotels, office buildings, and many other spots. Inside the enclosure you will find two internal transmit and two receive antennas designed to provide enhanced coverage on both the 2.4 GHz and 5 GHz frequencies. In addition to dual-band functionality, this access point features 802.11ac connectivity supporting a maximum data transfer rate of up to 866 Mbps. Once configured, your wireless network can be secured using WEP/WPA/WPA2-PSK, and WPA/WPA2-enterprise level encryption standards.
ZyXEL NWA1123-AC 802.11ac Ceiling Mount PoE Access Point
$108.47
In stock
Weight | 1.45 lbs |
---|---|
Dimensions | 11 × 8.2 × 2.8 in |
Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
Supported IEEE Standards | 802.3, 802.3af, 802.3az, 802.3u |
Operating Humidity | 10 to 90% |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Power Consumption | 7 W |
DC Input Power | VDC at 1 A |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.3 A |
Throughput | 1200 Mb/s Total <br>2.4 GHz: 300 Mb/s <br>5 GHz: 866 Mb/s |
Number of Antennas | 2 |
Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Supported Protocols | IPv6 |
Transmit Power | 17 to 26 dBm |
Antenna Gain | 4 to 6 dBi |
Sensitivity | -90 to -97 dBm |
WLAN Mode | Wi-Fi 5 (802.11ac) |
MU-MIMO Support | 2 x 2 |
Storage Humidity | 10 to 90% |
