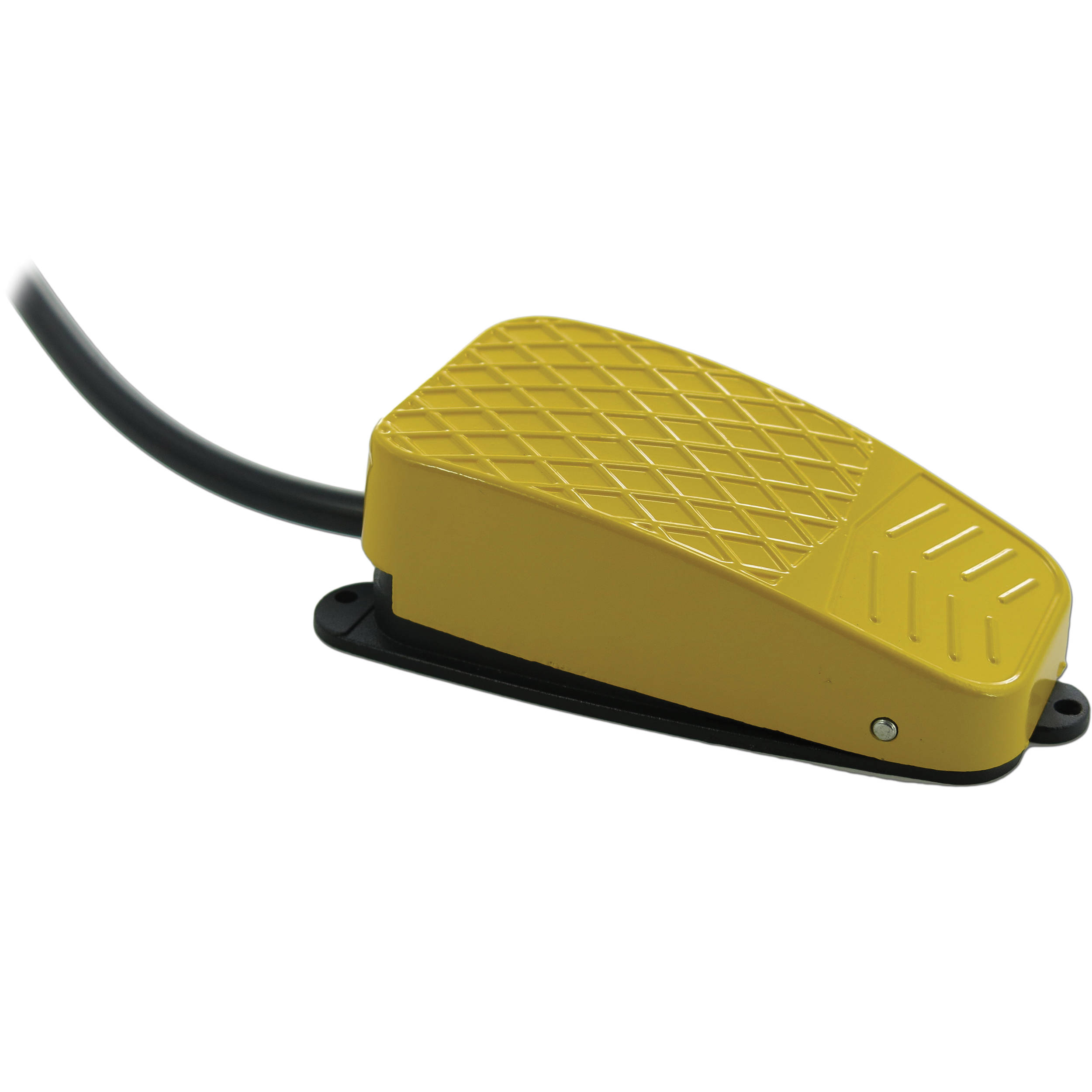

The yellow Commercial Foot Switch from X-keys is a commercial-grade foot switch made to work with the optionally purchased X-keys USB 12 Switch and USB 3 Switch Interfaces. The hinge in the front of the pedal is designed to allow a foot to rest on the pedal without activating it. With slight additional pressure, the switch is activated with an audible click and allows hands-free control in the office, lab, or studio. Additionally, the powder-coated cast aluminum body and pedal comes equipped with a mounting flange.
The Commercial Foot Switch is suitable for Assistive Technology or industrial applications where a mouse click, key press, or other operation when momentary activation is required.
| Weight | 1 lbs |
|---|---|
| Dimensions | 8.5 × 5.9 × 2.4 in |
| Construction Material | Painted (yellow) cast aluminum body |
| Switch Type | Microswitch with audible click |
| Actuation Force | Approx. 3.5 lb (1.6kg) depending on distance from hinge |
| Connecting Cable | Wired to 1/8" (3.5 mm) mono plug on a 114" (2.9 m) ruggedized cord |
| Voltage | < 30 V |
| Current | < 1 A |
