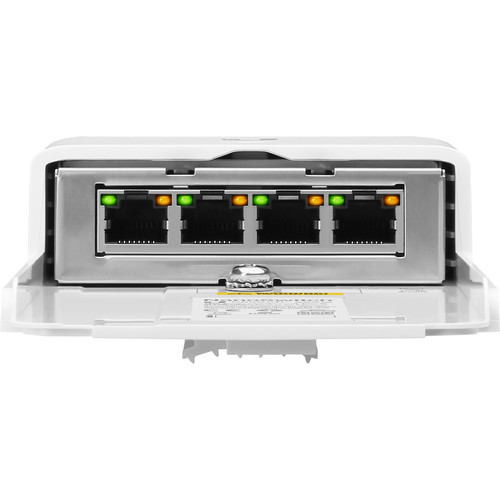

Power up to three PoE devices with the NanoSwitch Outdoor 4-Port PoE Passthrough Switch from Ubiquiti Networks. This passthrough switch features a single RJ45 PoE input and three RJ45 PoE outputs while supporting a total non-blocking line rate of 4 Gb/s. The NanoSwitch also comes equipped with a durable weatherproof enclosure and can be mounted to a pole or wall for easy installation in nearly any environment.
| Weight | 1 lbs |
|---|---|
| Dimensions | 9.5 × 5 × 2.55 in |
| Enclosure Characteristics | White polycarbonate |
| Total Non-Blocking Throughput | 4 Gb/s |
| Typical Power Consumption | 1.5 W |
| PoE | Passive PoE Max. Wattage per Port<br> |
| Power Method | Passive 24 V, 4-Pair PoE in |
| LEDs | Speed/Link/Activity (all ports) |
| Networking Interface | 4 x 10/100/1000 Mb/s RJ45 ports |
| PoE Interfaces | Passive 24 V PoE in |
| ESD/EMP Protection | Air: ±24 kV, Contact: ± 24 kV |
| Temperature & Humidity | Operating Temperature<br> |
| Shock and Vibration | ETSI300-019-1.4 standard |
8 reviews for Ubiquiti Networks NanoSwitch Outdoor 4-Port PoE Passthrough Switch
Only logged in customers who have purchased this product may leave a review.
Related products
Wired Networking
Cisco RV345P 16-Port Gigabit PoE+ Compliant Router with Dual WAN
$400.79
Wired Networking
$244.99
Wired Networking
Wired Networking
Synology E25G21-F2 Dual 25G Ethernet SFP+ Port PCIe 3.0 Adapter
$277.49
Wired Networking
$221.64
Wired Networking
Netgear GS305PP 5-Port Gigabit PoE+-Compliant Unmanaged Switch
$307.30
Jonathan Hoppe (verified owner) –
Cannot beat the price for the speed and temperature ratings
Carlo Boehm (verified owner) –
I was really excited to use this switch. It’s cheap, looks like it’s built well, and has some handy features. Here’s the details that can trip you up: – this switch is only 24v passive POE pass-through. That means everything connected to this gets 24v, even if it’s a device that doesn’t support POE. – this switch can dish out 30W of POE. Plenty to power your cameras and/or APs. The rest of Ubiquiti’s switches, if you planed on powering this with a switch, only output 17W of passive POE. If you need all 30W the only way to get that is with a separate injector. – the G3 Flex doesn’t officially support 24v Passive POE, but I’ve heard some people say they’ve gotten it to work with 24v POE. There are issues when you try to power the G3 Flex through the NanoSwitch though. I was excited to use this, but I think I’m just going to lay a few more runs of Cat5e directly from my rackmount switch. If you really need something like this look into the UniFi Switch Flex. It supports 802.3af, offers 43W (34W if powering by a switch) of power, and has an extra port. Props to B&H for their quick return process.
Bernita McDermott (verified owner) –
Powering several cameras on a pole in a pasture. Easy to set up, zero issues.
Alfreda Sanford (verified owner) –
Great little switch
Dorthy Monahan (verified owner) –
Ensure you know what you’re buying. This is Passive 24V. For any modern Unifi equipment, you’ll likely going to want the USW-FLEX which does 802.3at/bt IN and 802.3af out.
Felton Stracke (verified owner) –
Great for adding another device or two at the end of a run. Somewhat sensitive to lightning strikes, based on my experiences, but then most gear is. Easy and cheap enough to replace if needed.
Chase Lebsack (verified owner) –
Excellent, we are currently happy with the performance of the product and to complete our mission.
Shawna Sanford (verified owner) –
This works great. Had a little issue with the PoE and connecting up all 4 ports, but figured it out. One of these has been outside on a light pole for over 2 years now, still works great.
