Description

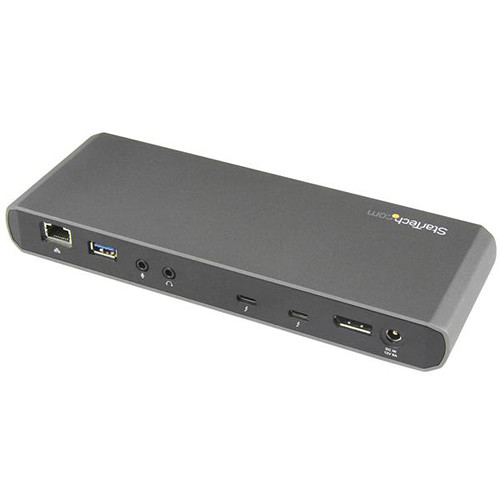

Expand Your Workspace with the StarTech Thunderbolt 3 Dual 4K Docking Station
Transform your Windows workspace with the StarTech Thunderbolt 3 Dual 4K Docking Station, designed to connect a wide range of peripherals through a single Thunderbolt 3 cable. This powerful dock is perfect for creative professionals who demand high-resolution displays, fast data transfer, and versatile connectivity.
Key Features:
- Dual Thunderbolt 3 Ports: Operate at speeds up to 40 Gb/s, supporting USB 3.1 and DisplayPort connectivity.
- Multi-Display Support: Drive one 5K display at 60 Hz or two 4K displays at 60 Hz.
- Versatile Connectivity: Includes USB 3.0 Type-C, USB 3.0 Type-A, Gigabit Ethernet, and 3.5mm audio jacks.
- Trickle Charging: Provides up to 15W power to maintain your laptop’s battery level.
- Compatibility: Works with Windows 10, 8.1, 8, and 7.
Designed for Creative Professionals
This Thunderbolt 3 dock is tailored for video producers, graphic designers, engineers, and architects who work with high-bandwidth applications. With support for high-resolution displays and fast data transfer, it meets the demands of graphically intensive tasks.
Included Accessories
- 1.6′ Thunderbolt 3 cable
- Universal 100-240 VAC power adapter
- Power cord
Backed by a 2-year limited warranty, this docking station offers a reliable and future-proof solution for expanding your workstation’s capabilities.
Additional information
| Weight | 2.7 lbs |
|---|---|
| Dimensions | 9.8 × 5.2 × 4.5 in |
| 4K Support | Yes |
| LED Indicators | 1 – Power (Blue) |
| Color | Gray and Black |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Power Source | AC Adapter (included) |
| Power Consumption | 72 W (max) |
| Plug Type | N |
| Output Voltage | 12 VDC |
| Output Current | 6 A |
| Input Voltage | 100 ~ 240 VAC |
| Input Current | 1.5 A |
| Center Tip Polarity | Positive |
| System and Cable Requirements | A Thunderbolt 3 equipped computer with a Thunderbolt 3 port running Windows. This docking station does not support Mac |
| Bus Type | Thunderbolt 3 |
| Notes | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K) |
| OS Compatibility | Windows 10, 8.1, 8, and 7 (32 & 64-bit) |
| Connector Types | 2 x Thunderbolt 3 / USB 3.1 Type-C (24-pin) Female |
| UASP Support | Yes |
| Type and Rate | Thunderbolt 3 – 40 Gb/s |
| Maximum Digital Resolutions | Single Display – DisplayPort – 4096 x 2160p (60 Hz) |
| Maximum Data Transfer Rates | 40 Gb/s (Thunderbolt 3)<br> |
| Full Duplex Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Industry Standards | Thunderbolt 3 |
| Displays Supported | 2 |
| Chipset ID | Intel – Alpine Ridge DSL6540 (Thunderbolt 3) |
| Enclosure Type | Aluminum and Plastic |
